Item No.: RS-THM-100
Horizontal Plastic Color Mixer/Plastic Shower Mixer/Plastic Mixer For Western Europe
E-mail: 15113320579@vip.126.com
Home Page

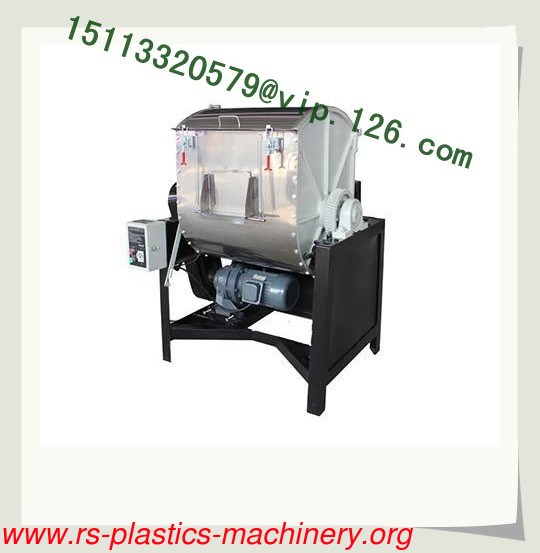

Description of the Horizontal material mixer,
The series of horizontal mixer are made of stainless steel and polished, so easy to clean and Anti-corrosive. Barrel can be inclined to 100 degrees for material discharging conveniently. Safety devise provides full protection for operator. Optional 0-30 minutes of mixing.
The horizontal mixer has following features,
Both mixing barrel and mixer are made of stainless steel and polished, so has a very high brightness, easy to clean and absolutely no material contamination.
Uniformly mixed, low power, high efficiency.
Material discharging outlet has a manual shut-off plate for easy material clearance.
Auto stop device can be set within 0-300 hours.
Safety devise provides full protection for operator.
Both the body and its stand are fully welded to ensure solid structure.
Specification of the horizontal mixer,
Model | Power | Capacity | Voltage | Dimensions | Rotating speed | Net Weight |
unit | KW | HP | kg | 380V 3⊙ | CM | r.p.m | Kg |
RS-THM-100 | 2.2 | 3 | 100 | 380 3⊙ | 110x85x130 | 63 | 285 |
RS-THM-150 | 4 | 5.5 | 150 | 380 3⊙ | 1420x85x130 | 63 | 358 |
RS-THM-200 | 4 | 5.5 | 200 | 380 3⊙ | 1580x 100x 140 | 63 | 530 |
1) “ * ” Normal mixing time is 3 minutes;
2) The largest noise level is 70dB(A);
3) About loading capacity is based on pellet material of 0.65 in density and in diameter.
4), voltage:3⊙,380V,50hz.
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
RS Plastics Machinery Co.,LTD (Zhongshan·China) |
Contact Person | Mrs. Pearl Zhu | Position | Export Manager |
Mobile Phone | 0086-13590932590 | QQ | 263567704 |
Wechat APP | zhhy18 | Skype | PEARL20128 |
E-mail | 13590932590@vip.126.com / 15113320579@vip.126.com |
Website | http://www.rs-plastics-machinery.org |
For more details of the honrizontal mixers, please contact us for E-sheets!
For more choice of mixers, plastic machinery products, please contact us for E-catalogue and Price Lists!
