Item No.: RS-TVM-500

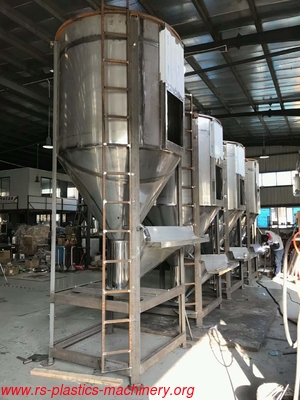

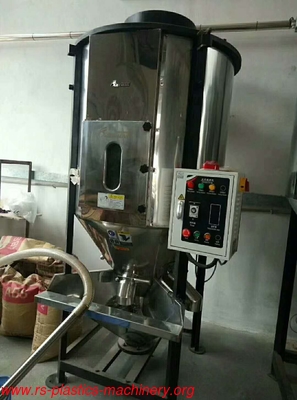

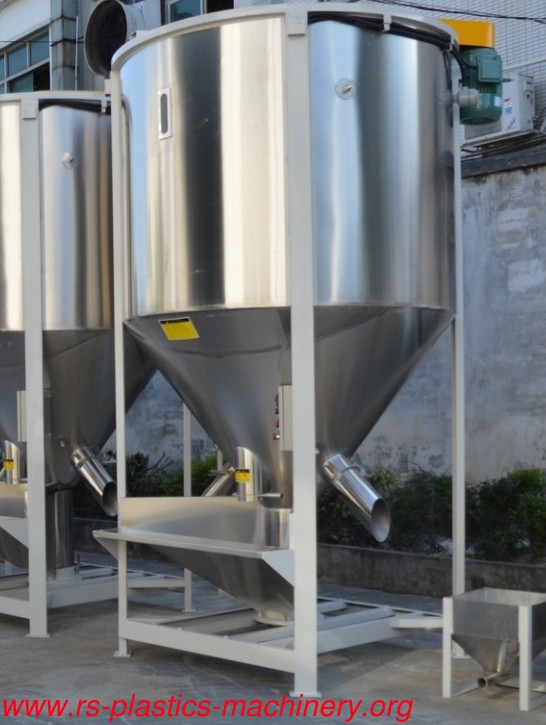

500kg Large Vertical Mixer/China Large spiral Vertical Color Mixer Manufacturer good price
Description of the large vertical mixer,
The vertical mixers are for powder and granule-like materials. They feature simple structure, fast mixing speed, easy for operation, maintenance and cleaning. It is mainly applied in plastic material mixing, and also wildly used in different industry, chemical industry and food industry. It is an ideal mixing facility with six models handing capacity ranging from 500 to 5000 kg.
The large vertical mixer has following features,
Both mixing barrel and mixer are made of stainless steel and polished, so has a very high brightness, easy to clean and absolutely no material contamination.
Uniformly mixed, low power, high efficiency.
Material discharging outlet has a manual shut-off plate for easy material clearance.
Auto stop device can be set within 0-300 hours.
Safety devise provides full protection for operator.
Both the body and its stand are fully welded to ensure solid structure.
Specification of the large vertical mixer,
|
Model
|
Motor power (kw)
|
Voltage (V)
|
Capacity (kg)
|
Dimensions ⊙AxH cm
|
Barrel Material
|
|
RS-TVM-500
|
2.2-6
|
380
|
500
|
120 x 235
|
Stainless steel
|
|
RS-TVM-1000
|
5.5-6
|
380
|
1000
|
150x265
|
Stainless steel
|
|
RS-TVM-2000
|
5.5-6
|
380
|
2000
|
175x355
|
Stainless steel
|
|
RS-TVM-3000
|
7.5-6
|
380
|
3000
|
210x375
|
Stainless steel
|
|
RS-TVM-5000
|
7.5-6
|
380
|
5000
|
243 x 435
|
Stainless steel
|
1) “ * ” Normal mixing time is 3 minutes;
2) The largest noise level is 70dB(A);
3) About loading capacity is based on pellet material of 0.65 in density and in diameter.
4), voltage:3⊙,380V,50hz.
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more details of the large vertical mixers, please contact us for E-sheets!
For more choice of mixers, plastic machinery products, please contact us for E-catalogue and Price Lists!
If there are any questions on plastic machines, please feel free to contact us.
We can provide all kinds of plastics machinery solutions to meet your special demands accordingly at one-stop purchasing!
