    Product Details:

    Place of Origin: China PET Crystallizer System
    Brand Name: RS or OEM
    Certification: CE for PET Crystallizer manufacturer
    Model Number: RS-TCR-900U-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of China PET Crystallizer from Manufacturer
    Price: contact factory for PET Crystallizer price
    Packaging Details: standard supplier export packing of China PET Crystallizer
    Delivery Time: 15 days according to PET Crystallizer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of PET Crystallizer according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China PET Crystallizer OEM Factory, China PET Crystallizer Dryer; Keyword: China PET Crystallizer Manufacturers

    Item No.: RS-TCR-900U-3

     CE Certificate High Capability PET Crystallization And Drying System



    Features of the PET Crystallizer

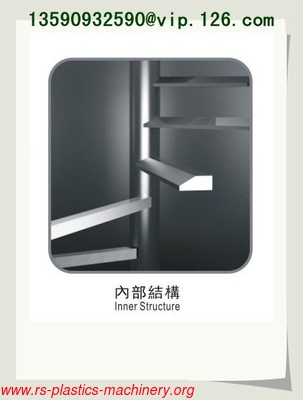

    Fixed speed of agitator makes materials not lump together during the crystallization Simplify and improve drying efficiency

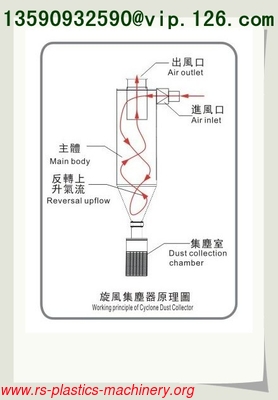

    Materials can be dried under high temperature to improve drying efficiency. Cyclone dust collector is standard, which is applied to dust-rich place, can effectively reduce the load on filter bag, and reduce the number of times of filter bag cleaning, thus extend the life span of the filter bag.

    With double overheat protectors, it can reduce the possibility of either mechanical or man-made problem

    Equipped with rotary valve with good sealing performance, which can output crystallized material accurately

    Equipped with material level switch, which can detect material level accurately and make operation reliable.

    Equipped with negative pressure tester to immediately test the ventilation of the filter.

    Give an alarm when the negative pressure is higher than the setting value, clean the

    filter to avoid blockage.

    CE Certificate High Capability PET Crystallization And Drying System



    CE Certificate High Capability PET Crystallization And Drying System





    Optional Accessory of the PET Crystallizer



    Can be used with dehumidifiers for direct processing Auto loader, hopper receiver, magnetic base, suction box are optional for material conveying

    Optional feed screw for stable and even conveying of un-crystallized material External pipeline is optional with the stainless steel configuration

    CE Certificate High Capability PET Crystallization And Drying System



    Working Principle of the PET Crystallizer

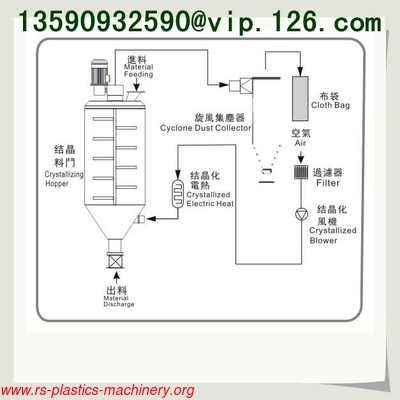

    Once material filling starts, heat blower starts up and material heating begins. Control cabinet would stop sending signals to auto loader when material filling amount is higher than material level switch. Then material heating lasts for a while. When temperature sensing needle detects the value of reaching the set crystallized temperature, material would be conveyed out via feeding device; meanwhile, as material level in hopper lowers gradually, filling device starts to supply the un-crystallized material accordingly to realize the continuous crystallization process. When temperature sensing needle detects the temperature value of stopping material conveying, feeding device halts. If temperature rises again to reach the set crystallized temperature, feeding device will be activated to work so that the continuous crystallization process can be realized through this kind of circle.

    CE Certificate High Capability PET Crystallization And Drying System

    CE Certificate High Capability PET Crystallization And Drying System



    Application of the PET Crystallizer

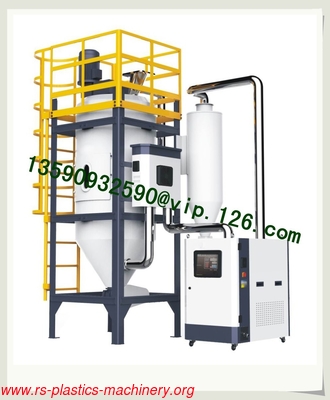

    TCR closed-loop crystallizers are used for constant crystallization of un-crystallized PET regrinds or pellets. Processed materials can then be dried and dehumidified directly. This system mainly consists of heating elements, insulated hopper and agitator screw mixing device. After un-crystallized PET materials fed into the hopper, the system starts crystallization and agitator starts blending to prevent formation in lumps. Crystallized materials can be conveyed to material storage bin or into drying hopper.

    CE Certificate High Capability PET Crystallization And Drying System



    PET Features



    PET material is well-used in textile fiber, food and chemical packaging. Tape stripes, industry thread, heat-resistant dishware. Air bubble and chapping will take place due to its high moisture content. With this drying demand and the development on plastic industry, We provides a series of secured and reliable drying and dehumidifying technologies for PET molding and other PET product manufacturers. Our PET system had great technology to meet various application needs.

    •           Bottle and blank making

    •           Thermal forming film and sheet making

    •           Strapping tape and industrial yarns making

    •           Tubing making

    Waste recovery making

    CE Certificate High Capability PET Crystallization And Drying System



    Specification of the PET Crystallizer



    Model

    TCR-160U

    TCR-450U

    TCR-900U

    TCR-1600U

    TCR-2500U

    Heater Power (KW)

    12

    24

    48

    96

    128

    Blower Power (KW)

    0.55

    2.2

    3

    7.5

    15

    Blending Motor Power (KW)

    0.25

    1.1

    1.5

    1.5

    4

    Max Capacity (Kg/hr)

    50

    150

    300

    500

    750

    Hopper Capacity (L)

    160

    450

    900

    1600

    2500

    H (mm)

    2380

    3850

    4450

    5350

    5670

    H1(mm)

    280

    720

    1040

    860

    1270

    H2(mm)

    380

    1060

    1185

    1260

    1270

    W(mm)

    1040

    2370

    2890

    3570

    4050

    W1(mm)

    1140

    1440

    1930

    2190

    2350

    W2(mm)

    ---

    800

    800

    800

    800

    ⊙A(inch)

    3

    5

    6

    8

    8

    ⊙B(inch)

    4

    4

    5

    5

    5

    N.W. (Kg)

    235

    500

    865

    2290

    2790

    CE Certificate High Capability PET Crystallization And Drying System

    Notes:

    l), Above maximum processing capacity is based on

    un-crystallized pet material of 0. 85kg/L in density and 3v5mm in diameter.

    2), Power: 3,380VAC, 50Hz

    3),We reserve the right to change specifications without prior notice





    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;





    We do OEM!



    We do B2B, B2C!
