    Product Details:

    Place of Origin: China Open Type Chiller
    Brand Name: RS or OEM
    Certification: CE for China water-cooled central water chillers manufacturer
    Model Number: RS--LF1A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of Open Type Chiller
    Price: contact us for water-cooled central water chiller price
    Packaging Details: standard export packing of industry water-cooled central water chillers
    Delivery Time: 15 days according to water-cooled central water chiller production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of water-cooled central water chillers according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: Open Type Chiller,China Water-cooled Water Chillers Manufacturer, China Water-cooled Central Water C Keyword: China Industrial Chillers OEM Factory; China Water Chillers OEM Plant;
    Condition: New Air Cooled Chiller Warranty: ONE Year For Air Cooled Chiller

    Item No.: RS-LF1A



     RS-LF1A Open Type Air Cooled Chiller/ Water cooled water chiller with Centrifugal Compressor



    If you need the price of the open type air cooled  chiller, please do send an E-mail to: 15113320579@vip.126.com



    Home Page

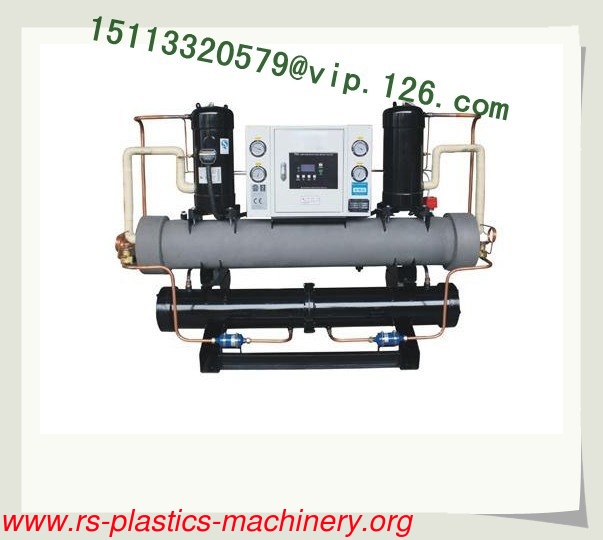

    Description of the  open type chillers,

    The Open type central water-cooled chillers adopt German made BITZER with twin screw compressors, models with one or two compressors, suitable for using R22.R407 and R134a refrigerants. High efficiency condenser and evaporator have manufactured under national "BR1” standard. Featuring stable heat exchange and ease of maintenance, advanced controller with built-in microprocessor which gives better performance than single chip based unit.

     RS-LF1A Open Type Air Cooled Chiller/ Water cooled water chiller with Centrifugal Compressor



    Features of the air cooled central water chillers,


    The water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles.

    1. Famous brand new compressors, high efficient shell condensers and evaporators -- excellent cooling, quiet with low electric consumption.

    2. P.I.D. Microprocessor control-easy to operate accurately maintains temperature range from 3℃ to 50℃

    3. Special open type reservoir tank with stainless steel - easy to clean and maintain.

    4. Well design and reasonable Pipelines-ensures power supply and saves energy.

    5. Current-over load protector, high-and-low pressure switches electronic time delayer, fault display system--Safe and durable.

    6. Liquid crystal display showing temperatures of outlet and inlet chill water-provides visualized and direct setting.

    7. Single, double or quadruple compressors combination available-economic and efficient.

    8. Industrially designed-elegant and economic with friendly human-machine connections.

    RS-LF1A Open Type Air Cooled Chiller/ Water cooled water chiller with Centrifugal Compressor

    Specification of the air-cooled central water chillers,

    Model Unit RS-LF1A RS-LF2A RS-L3W RS-L5W RS-L6W RS-L8W RS-L10W
    RS-LF3A RS-LF5A RS-LF6A RS-LF8A RS-LF10A
    Capacity KW 2.77 5.28 7.91 12.9 15.22 23.8 30.5
    Kcal/h 2382 4541 6803 11094 13091 20468 26230
    Compressor Input power KW 0.89 1.77 2.8 4.5 5.2 3x2 4.5x2
    Ralated power HP 1 2 3 5 6 4x2 5x2
    Power   1HP-220V/50HZ 3HP-380V/50HZ(200V/220V/415V 50HZ/60HZ)
    Evaporator Type   Water Tank with Coil(Shell and Tube)
    Pipe diameter inch 6' 6' 1" 1" 1" 2" 2"
    Refrigerant Type   R22
      Quantity kg 1.6 1.8 2 2 2.5 4 5
    Water Condenser Type
    Pipe diameter inch     1" 1" 1" 2" 2"
    Cooling Water Flow m3/h 0.476 0.908 1.36 2.22 2.6 3.95 4.42
    Air Condenser Type   Finned copper tube+ Low noise outer rotor fan
    Fan power W 85x1 85x1 135x1 135x2 135x2 420x2 420x2
    Water tank capacity Liter 20 20 50 60 60 110 110
    Pump Power KW 0.37 0.37 0.37 0.37 0.75 0.75 0.75
    HP 0.5 0.5 0.5 0.5 1 1 1
    Distance m 23 23 23 23 35 13 13
    Flow Rate L/min 100 100 100 100 110 200 200
    Safty Protection   High and low Pressure Protection,Over Load Protection,Over Temperature Protection,Phase Sequence Protection etc.
    Dimensions (L*W*H) Water Cooled mm     935*500* 883 935*500* 883 935*500* 883 1270*650*1413 1270*650*1413
    Air Cooled mm 800*490* 898 795*566* 1058 960*630* 1073 1280*630* 1118 1280*630* 1118 1550*830* 1543 1550*830* 1543



    RS-LF1A Open Type Air Cooled Chiller/ Water cooled water chiller with Centrifugal Compressor



    Model Unit RS-L12W RS-L15W RS-L20W RS-L25W RS-L30W RS-L40W RS-L50W
    RS-LF12A RS-LF15A RS-LF20A RS-LF25A RS-LF30A RS-LF40A RS-LF50A
    Capacity KW 34.3 45 61 69 92 122 136
    Kcal/h 29498 38700 52460 59340 79120 104920 117476
    Compressor Input power KW 10 4.5x3 9x2 10x2 9x3 9x4 9.4x4
    Ralated power HP 6x2 5x3 10x2 12.5x2 10x3 10x4 12.5x4
    Power   3HP-380V/50HZ(200V/220V/415V 50HZ/60HZ)
    Evaporator Type   Water tank with coil(Shell and Tube)
    Pipe diameter inch 2" 2" 2.5" 2.5" 3" 3" 3"
    Refrigerant Type   R22
      Quantity kg 5 7.5 11 11 12 18 18
    Water Condenser Type
    Pipe diameter inch 2" 2" 2.5" 2.5" 3" 3" 3"
    Cooling Water Flow m3/h 5.03 7.1 8.84 10.06 13.6 17.75 21.9
    Air Condenser Type   Finned copper tube+ Low noise outer roto fan
    Fan power W 550x2 750x2 550x3 750x3 800x3 800x3 800x4
    Water tank capacity Liter 110 200 350 350 420 420 420
    Pump Power KW 0.75 1.5 1.5 2.2 2.2 4 4
    HP 1 2 2 3 3 5 5
    Distance m 13 15 15 16 16 16 16
    Flow Rate L/min 200 360 360 650 650 700 700
    Safty Protection   High and low Pressure Protection,Over Load Protection,Over Temperature Protection,Phase Sequence Protection etc.
    Dimensions (L*W*H) Water Cooled mm 1270*650*1413 1270*650*1413 1880*880*1650 1880*880*1650 1880*880*1650 2150*1080*1950 2150*1080*1950
    Air Cooled mm 1550*830* 1543 1850*1000* 1640 2150*1000* 1820 2400*1150* 1740 2600*1150* 1940 2150*2000* 1820 2400*2250*1840



    Note: 1.Cooling Capacity is calculated based on: inlet/outlet chilled fluid temperature:12℃/7℃,inlet/outlet cooling water temperature:30℃/35℃.

    2.Working condition: Chilled fluid temperature: from 5℃ to 35℃. Inlet/outlet chilled fluid Temperature difference: from 3℃ to 8℃

    Cooling water temperature: from 18℃ to 37℃, Inlet/outlet cooling water Temperature difference: from 3.5℃ to 10℃.

    We reserve the right to modify above information without prior notice.

    RS-LF1A Open Type Air Cooled Chiller/ Water cooled water chiller with Centrifugal Compressor


    Foundation and Installation of the Air cooled central water chillers,

    Selection of Installation Environment,

    1)           Please select a firm and solid ground which can fully support machine when running. The ground selection has also to avoid any happens of vibration and loudly environment.

    2)           The    machine should be installed on a place without any exposures from wind, rain, sunlight, or any heat source occurrence.

    3)           Ambient   temperature is from 0 to 40. Relative Humidity (RH) is within 75%.

    4)           The    installation environment should be well ventilated and less dust.
    When install, please preserve a maintenance space, as shown blow. For the cleaning of the condenser, please reserve space of 0.8L on the left or right side of the machine.
    RS-LF1A Open Type Air Cooled Chiller/ Water cooled water chiller with Centrifugal Compressor

    Foundation Base

    1 )The foundation of the concrete base, according to the operation weight of the machines, will put on steel bars, diameter above 9.5 mm, and are clustered together on the upper and lower layer of the base, interspaced about 100mm.

    5)           When making concrete floor to be foundation. it is necessary to rough the surface. Clean the floor before the installation.

    6)           The    concrete base has to be rigid; the mixing proportion of concrete is

    1:2:4.Put required anchor bolts into base, according to the request. Polishing and flat the surface of the base when finished.

    7)           Put      the machine on the base when it is fully dried out and rigid.
    It    has to be a well drainage works around the base to prevent water remaining.

    RS-LF1A Open Type Air Cooled Chiller/ Water cooled water chiller with Centrifugal Compressor




    Machine color--- blue or gray white and black, or others;



    Machine brand--- factory brand, OEM brand or no brand;




    We do OEM!



    We do B2B, B2C!
