    Product Details:

    Place of Origin: China water-cooled central water chillers
    Brand Name: RS or OEM
    Certification: CE for China water-cooled central water chillers manufacturer
    Model Number: RS-TICC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of water-cooled central water chillers
    Price: contact us for water-cooled central water chiller price
    Packaging Details: standard export packing of industry water-cooled central water chillers
    Delivery Time: 15 days according to water-cooled central water chiller production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of water-cooled central water chillers according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China Water-cooled Water Chillers Manufacturer, China Water-cooled Central Water Chillers Suppliers, Keyword: China Industrial Chillers OEM Factory; China Water Chillers OEM Plant;

    Item No.: RS-TICC

     Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller



    E-mail: 15113320579@vip.126.com



    Home Page



    Description of the water cooled central water chillers,

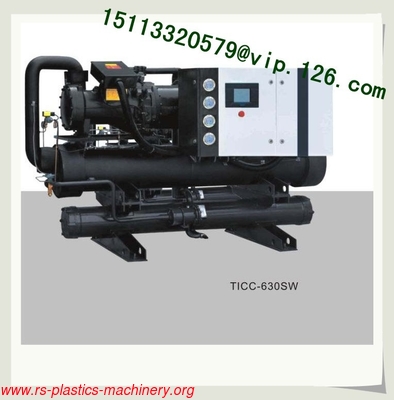

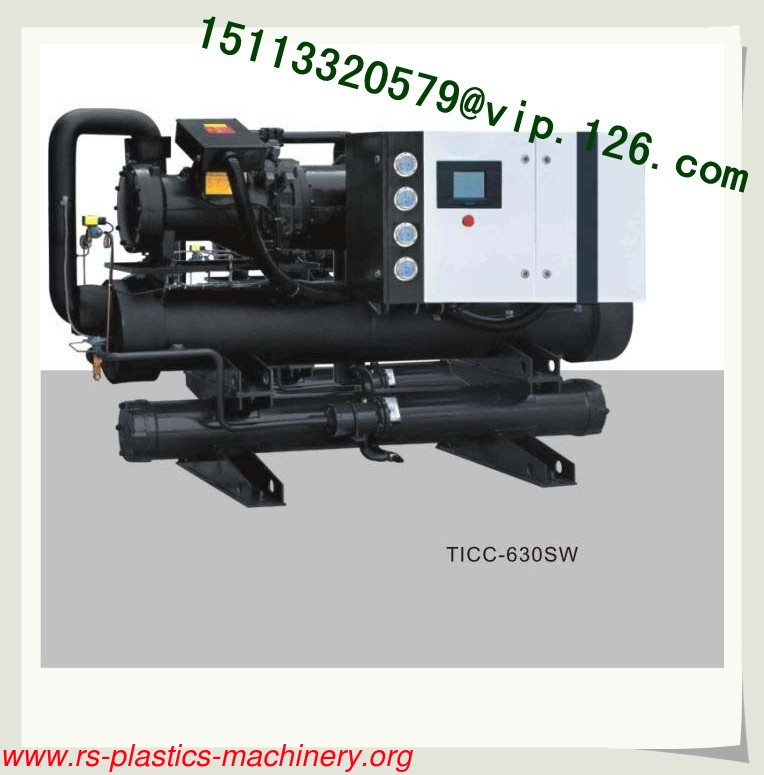

    TICC-W series central water-cooled chillers adopt German made BITZER with twin screw compressors, models with one or two compressors, suitable for using R22.R407 and R134a refrigerants. High efficiency condenser and evaporator have manufactured under national "BR1” standard. Featuring stable heat exchange and ease of maintenance, advanced controller with built-in microprocessor which gives better performance than single chip based unit.

    Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller



    Features of the water cooled central water chillers,

    With imported twin screw compressor, long service life to ensure can make sure continuous operation.

    Two energy saving modes are designed to meet customers requirements.

    Evaporator and condenser built strictly according to national standards.

    Expendability of the controller makes upgrade of both hardware and software easier.

    "Watchdog" technology  make microprocessor able to automatically diagnose and solve the problems.

    512K memory for programs and 128K off-power data storage.

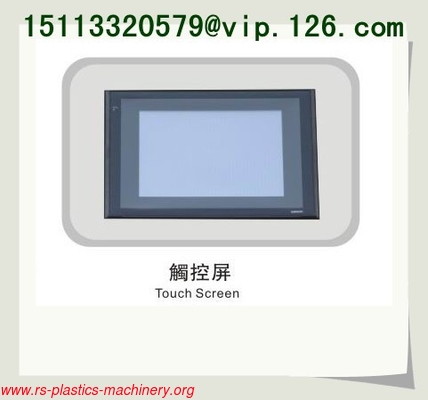

    Touch screen panel.

    System alarm text.

    Able to monitor the setting of actual temp and display temp trend in hours or in daily.

    Remote control function turns on/off the machine according to preset timer.

    Support multi-language switch.

      Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller



    Working Principle of the water cooled central water chillers(one compressor)

     Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller

     Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller

    Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller

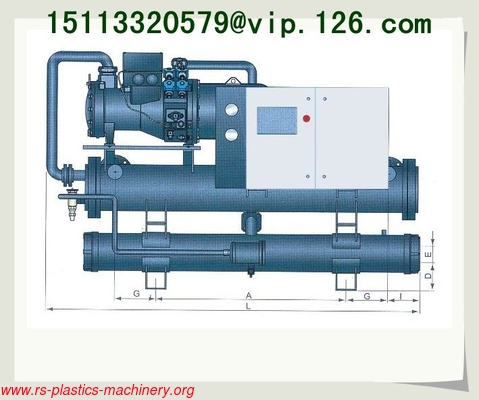

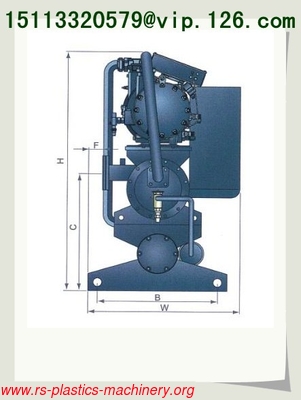

    Dimensions of the water cooled central water chillers,

      Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller

    Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller



    Specification of the water-cooled central water chillers,

    Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller

    Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller





    Foundation and Installation of the water cooled central water chillers,



    Selection of Installation Environment,

    1)           Please select a firm and solid ground which can fully support machine when running. The ground selection has also to avoid any happens of vibration and loudly environment.

    2)           The    machine should be installed on a place without any exposures from wind, rain, sunlight, or any heat source occurrence.

    3)           Ambient   temperature is from 0? to 40?.Relative Humidity (RH) is within 75%.

    4)           The    installation environment should be well ventilated and less dust.

    When install, please preserve a maintenance space, as shown blow. For the cleaning of the condenser, please reserve space of 0.8L on the left or right side of the machine.



    Foundation Base

    1 )The foundation of the concrete base, according to the operation weight of the machines, will put on steel bars, diameter above 9.5 mm, and are clustered together on the upper and lower layer of the base, interspaced about 100mm.

    5)           When making concrete floor to be foundation. it is necessary to rough the surface. Clean the floor before the installation.

    6)           The    concrete base has to be rigid; the mixing proportion of concrete is

    1:2:4.Put required anchor bolts into base, according to the request. Polishing and flat the surface of the base when finished.

    7)           Put      the machine on the base when it is fully dried out and rigid.

    It    has to be a well drainage works around the base to prevent water remaining.

     Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller

     Movable Cold Water Chiller Unit Series Cooling System Good Performance water chiller





    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;
