    Product Details:

    Place of Origin: China 2-in-1 honeycomb dehumidifier
    Brand Name: RS or OEM
    Certification: CE for honeycomb dehumidifier and dryer 2-in-1 manufacturer
    Model Number: RS-TDD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of China honeycomb dehumidifier and dryer from Manufacturer
    Price: contact factory for honeycomb dehumidifier good price
    Packaging Details: standard supplier export packing of China dehumidifiers
    Delivery Time: 15 days according to honeycomb dehumidifier manufacturer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of dehumidifiers according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Product: China Two-in-one Honeycomb Dehumidifier Manufacturer, China Dehumidifiers Suppliers, Keyword: China Honeycomb Dehumidifier And Dryer 2-in-1 OEM Factory
    Condition: New Drying Dehumidifier Warranty: ONE Year For Dehumidifying Dryer

    Item No.: RS-TD

     Red Dryer and Dehumidifier 2-in-1 For Luxembourg/Dehumidifying dryer For North America





    contact E-mail: 13590932590@vip.126.com



    Home Page





    Description of the honeycomb dehumidifier and hopper dryer 2-in-1,

    The RS-TDD series dehumidifying dryer combine a dehumidifying and drying system in a single unit. They have many applications in processing plastic materials such as PA, PC, PBT etc. We offer two types of honeycomb rotors: H4 and H5 models that, under ideal conditions, can supply dehumidified dry air with a dew-point down to-40 and -50 respectively. All models feature TD-H honeycomb dehumidifiers with built-in process heater, and insulated drying hopper. The TDD series offers accurate PID temperature control as standard, with LCD touch screen, dew-point monitor, and hopper loaders as optional feature.

    Red Dryer and Dehumidifier 2-in-1 For Luxembourg/Dehumidifying dryer For North America





    Features of the honeycomb dehumidifier and dryer 2-in-1,

    The RS-TDD dehumidifying drying use honeycomb dehumidifiers with an eye-catching semi-integral appearance.

    Each model combines dehumidifying and function into a single unit.

    Material processing is controller via microprocessor as standard, with touch screen PLC control as an option for more convenient control.

    Insulated drying hopper features dry air down blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption whist maintaining a steady drying effect.

    Compact in size for ease of movement and space saving.

    The dehumidifying section of the TDD series features two condensers to ensure a low return air temperature and low dew-point.

    Dew-point monitor can be fitted to check dry air dew-point.

    Optional suction box and hopper loader for added convenience when conveying material.

    Red Dryer and Dehumidifier 2-in-1 For Luxembourg/Dehumidifying dryer For North America





    Specification of the honeycomb dehumidifier and dryer,



    Model

    Regenarated electric heater power (kw)

    Regenarated blower power (kw)

    Electro

    -thermal dryer Power(kw)

    Drying blower power (kw)

    Dehumidifying

    air volume

    (m3/hr)

    Heat preserva

    -tion bucket capacity (L)

    Size (mm ) ( HxWxD )

    Net Weight

    (kg)

    RS-20U/30H

    3

    0.18

    3

    0.2

    30

    20

    1240x875x755

    110

    RS-40U/30H

    3

    0.18

    3

    0.2

    30

    40

    1300x930x755

    190

    RS-40U/50H

    3

    0.18

    3.9

    0.4

    50

    40

    1300x930x755

    190

    RS-80U/50H

    3

    0.18

    3.9

    0.4

    50

    80

    1410x1030x755

    210

    RS-120U/80H

    3.5

    0.18

    6

    0.75

    80

    120

    1780x1220x820

    250

    RS-160U/80H

    3.5

    0.18

    6

    0.75

    80

    160

    1740x1220x820

    255

    RS-160U/120H

    3.5

    0.18

    6

    0.75

    120

    160

    1740x1220x820

    265

    RS-230U/120H

    3.5

    0.18

    6

    0.75

    120

    230

    2010x1220x820

    295

    RS-230U/150H

    4

    0.4

    7.2

    1.5

    150

    230

    2150x1450x1050

    375

    RS-300U/150H

    4

    0.4

    7.2

    1.5

    150

    300

    2040x1450x1050

    410

    RS-300U/200H

    5.4

    0.4

    12

    1.5

    200

    300

    2040x1450x1050

    420

    RS-450U/200H

    5.4

    0.4

    12

    1.5

    200

    450

    2440x1450x1050

    550

    RS-450U/300H

    7.2

    0.75

    15

    2.4

    300

    450

    2480x1490x1255

    580

    RS-600U/300H

    7.2

    0.75

    15

    2.4

    300

    600

    2380x1745x1255

    615

    RS-600U/400H

    7.2

    0.75

    18

    3.75

    400

    600

    2380x1745x1255

    620

    RS-750U/400H

    7.2

    0.75

    18

    3.75

    400

    750

    2610x1745x1255

    650

    RS-750U/500H

    10

    1.5

    21

    5.5

    500

    750

    2760x2140x1380

    760

    RS-900U/500H

    10

    1.5

    21

    5.5

    500

    900

    2640x2140x1380

    820

    RS-900U/700H

    10

    1.5

    24

    5.5

    700

    900

    2640x2140x1380

    830

    RS-1200U/700H

    10

    1.5

    24

    5.5

    700

    1200

    3070x2140x1380

    870

    Note: 1 )Mirror polished treatment on all material contact surfaces, add “P” at model behind. 2)Modified into “180and heat-preservation” add “HT” at model behind.

    LCD touch screen, PLC controller, add “LC” at model behind.

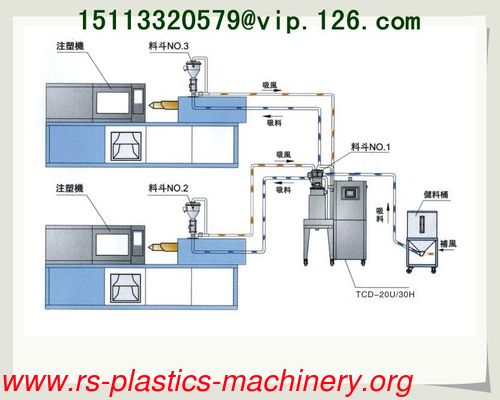

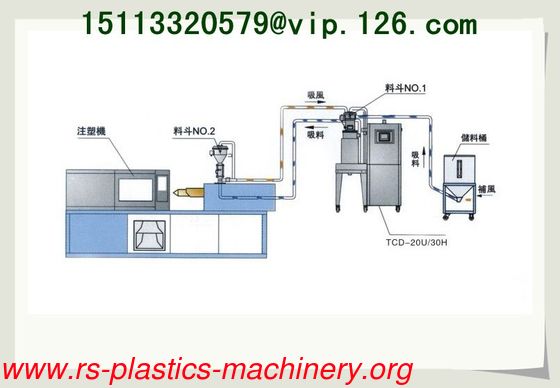

    Suction box and hopper loader for added convenience when conveying material



    Red Dryer and Dehumidifier 2-in-1 For Luxembourg/Dehumidifying dryer For North America



    Red Dryer and Dehumidifier 2-in-1 For Luxembourg/Dehumidifying dryer For North America



    Red Dryer and Dehumidifier 2-in-1 For Luxembourg/Dehumidifying dryer For North America





    Machine color--- red, blue or grey white, or others;



    Machine brand--- factory brand, OEM brand or no brand;





    We do OEM!
