Item No.: RSAL-7.5HP
7.5Hp High power automatic vacuum hopper loader /1000Kg/hr capacity vacuum hopper loader Distributor Wanted
E-mail: 15113320579@vip.126.com
Home Page

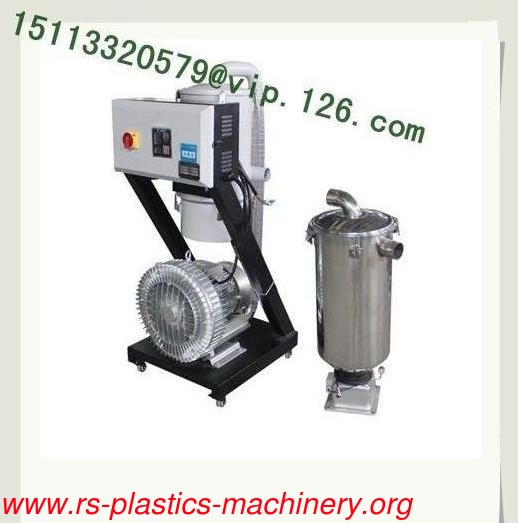

Description of the high power hopper loader
HIGH-POWER AUTO LOADERS
HIGH-POWER AUTO LOADERS FEATURE
Specially designed for material of large quantity.
High-power motor with large-sized hose and hopper.
Microcomputer controlled with alarm for overload and lack of material.
With CE authentication.
Specification of the high power hopper loader
| Model |
RSAL-1.5HP |
| Motor (HP/KW) |
1.5/1.1 |
| Conveying Capacity (kg/h) |
450 |
| Loading Distance (m) |
5 |
| Static Wind Pressure (mm/h2o) |
2800 |
| Reservoir Volume (L) |
7.5 |
| Conveying Tube Inner Diameter (mm) |
⊙38 |
| Specification of the Attached Hoses (mm) |
⊙38mm*8m 1pc |
| Dimension (cm) |
Main Frame |
42*37*120 |
| Hopper |
43*32*52 |
| Approx. Net Weight (kg) |
Main Frame |
65 |
| Hopper |
6 |
| Model |
RSAL-3HP |
| Motor (HP/KW) |
3/2.2 |
| Conveying Capacity (kg/h) |
590 |
| Loading Distance (m) |
5 |
| Static Wind Pressure (mm/h2o) |
2800 |
| Reservoir Volume (L) |
12 |
| Conveying Tube Inner Diameter (mm) |
⊙51 |
| Specification of the Attached Hoses (mm) |
⊙51mm*10m 1pc |
| Dimension (cm) |
Main Frame |
42*37*120 |
| Hopper |
43*32*52 |
| Approx. Net Weight (kg) |
Main Frame |
68 |
| Hopper |
6 |
| Model |
RSAL-5HP |
| Motor (HP/KW) |
5/3.75 |
| Conveying Capacity (kg/h) |
820 |
| Loading Distance (m) |
6 |
| Static Wind Pressure (mm/h2o) |
3200 |
| Reservoir Volume (L) |
25 |
| Conveying Tube Inner Diameter (mm) |
⊙51 |
| Specification of the Attached Hoses (mm) |
⊙51mm*10m 1pc |
| Dimension (cm) |
Main Frame |
50*45*123 |
| Hopper |
40*30*102 |
| Approx. Net Weight (kg) |
Main Frame |
90 |
| Hopper |
10 |
| Model |
RSAL-7.5HP |
| Motor (HP/KW) |
7.5/5.5 |
| Conveying Capacity (kg/h) |
1000 |
| Loading Distance (m) |
6 |
| Static Wind Pressure (mm/h2o) |
4200 |
| Reservoir Volume (L) |
40 |
| Conveying Tube Inner Diameter (mm) |
⊙63 |
| Specification of the Attached Hoses (mm) |
⊙63mm*15m 1pc |
| Dimension (cm) |
Main Frame |
58*60*170 |
| Hopper |
40*30*102 |
| Approx. Net Weight (kg) |
Main Frame |
135 |
| Hopper |
12 |
| Model |
RSAL-10HP |
| Motor (HP/KW) |
10/7.5 |
| Conveying Capacity (kg/h) |
1300 |
| Loading Distance (m) |
6 |
| Static Wind Pressure (mm/h2o) |
4500 |
| Reservoir Volume (L) |
40 |
| Conveying Tube Inner Diameter (mm) |
⊙63 |
| Specification of the Attached Hoses (mm) |
⊙63mm*15m 1pc |
| Dimension (cm) |
Main Frame |
58*60*170 |
| Hopper |
40*30*102 |
| Approx. Net Weight (kg) |
Main Frame |
140 |
| Hopper |
12 |
Machine color--- blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
