Item No.: RS-TM-O2
Injection plastic oil mold temperature controller/ High temperature oil MTC/oil heater
E-mail: 15113320579@vip.126.com
Home Page
Features of the Oil Type Mold Temperature Controller,
1, adopted microcomputer controller, easy to operate, PID dual-stage temperature control system maintains an accuracy of +/- 0.1℃
2, With sufficient safety production and alarm system;
3, Adopts high temperature coupling pump with no leakage of oil;
4, With automatic shutdown cooling protection function;
5, With temperature detecting indication of oil return;
6, Multi-machine parallel is customized;
7, Main pipes are made of uni-body 304 stainless steel, with uniform heating and low loss;
8, Equipped with 304 stainless steel high temperature sluice valve;
9, adopts indirect cooling method which makes temperature controller more precise and stable;
10, sufficient safety protection and visible alarm, easy for maintenance;
11, Using isolated electric control box, to extend the lives of electric appliance.
Specification of the industrial oil mould temperature controllers,
|
Model
|
Unit
|
RS-TM12KW-300
|
RS-TM18KW-300 RS-TM24KW-300
|
RS-TM36KW-300
|
RS-TM48KW-300
|
|
Temp. Control Range
|
°C
|
|
300*C
|
|
|
|
Temp. Control Accuracy
|
°C
|
|
p.i.d. ±o.1℃
|
|
|
|
Power Supply
|
|
|
AC3 380V 50HZ
|
|
|
|
Heat Transfer Medium
|
|
|
Heat Transfer Oil
|
|
|
|
Cooling Method
|
|
|
Indirect Cooling
|
|
|
|
Heating Capacity
|
KW
|
12
|
9x2 12x2
|
12x3
|
12x4
|
|
Pump Power
|
HP
|
1
|
2 2
|
3
|
5
|
|
Max. Pump Flow
|
L/min
|
50
|
83 83
|
165
|
480
|
|
Max. Pump pressure
|
KG/cm2
|
2
|
2.5 2.5
|
2.5
|
3
|
|
Oil Tank Capacity
|
Liter
|
20
|
30 30
|
30
|
30
|
|
Alert Function
|
|
Phase-Missing/Water Insufficient/Over-Heat/Over Current
|
|
|
Cooling Water Pipe
|
mm
|
12
|
12 12
|
12
|
12
|
|
Circulating Oil Pipe
|
inch
|
(4x4) 3/8
|
(lxl) (1x1)
|
(lxl)
|
(lxl)
|
|
Dimension(L*W*H)
|
mm
|
1325*560*1110
|
1325*560*1110 1325*560*1110
|
1325*560*1110
|
1325*560*1110
|
|
Approx.Net Weight KG 205 210 215 220 225
|
We reserve the right to change specifications without prior notice.
MTC Under Production
Application of the industrial oil mould temperature controllers,
The Mold Temperature Controller is suitable for Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines, the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tank ships, paper making industry, bottle blowing, and so on.
The Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.

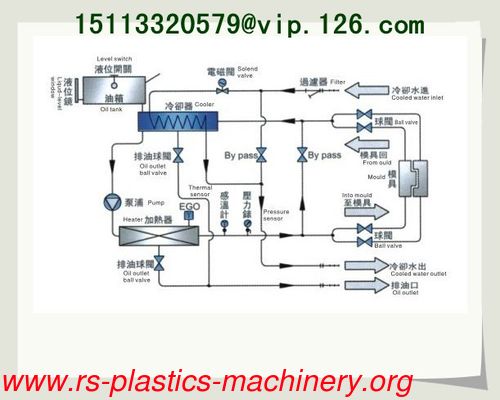

Working Principle of the industrial oil mould temperature controllers,
High temperature oil returns to the machine and then be pressured by pump to the heaters, After being heated, oil will be forced to mould and continue the circle. In the process, if the temperature is too high, the system will activate the solenoid valve to let return oil cool down the temp, directly till the oil temp, is down to the system requirement. If the temp, keep rising and reach to the set point of EGO, the system will alarm and stop working if cooling water pressure doesn't reach set point.
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more choice, please click the following,
Standard oil type mold temperature controller;
Dual stage oil type mold temperature controller;
Water-oil mold temperature controller;
Standard water type mold temperature controller;
Double stage water type mold temperature controller;
High temperature water MTC;
