    Product Details:

    Place of Origin: China oil mold temperature controller
    Brand Name: RS or OEM
    Certification: CE for China oil mold temperaturer controller manufacturer
    Model Number: RS-TM-370

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of Oil Mold Temperature Controller
    Price: contact us for Oil Mold Temperature Controller price
    Packaging Details: standard export packing of Oil Mold Temperature Controller
    Delivery Time: 15 days according to Oil Mold Temperature Controller production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of Oil Mold Temperature Controller according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China Standard Oil Mold Temperature Controller Manufacturer, China Oil Heaters OEM Factory, Keyword: China Industrial Mould Temperature Controllers Supplier;MTC;

    Item No.: RS-TM-370

     oil mold temperature controller /Die casting oil MTC/Die Casting Oil Heater/Oil Type MTC



    E-mail: 15113320579@vip.126.com



    Home Page





     370°C DIE CASTING MTC

    CASTING,RUBBER EXTRUSION,FOAMING,AND OTHER SPECIAL MTC SERIES



    Die-casting Mold Temperature Controller

    Introduction: Die-Casting Mold Temperature Controller is high function equipment developed specially for die-casting industry. Comp with competitors,this is with higher performance but more reasonable price and it is the best choice for customers of magnesium,aluminum and die-casting.The advantage of this type controller is processing temperature up to 370 CC ;designed with advance process;High accuracy in contrc temperature,fast heat exchange,efficient and energy-saving.

    oil mold temperature controller /Die casting oil MTC/Die Casting Oil Heater/Oil Type MTC



    FEATURE:

    1.         Maximum      running temperature as 370 CC .

    2.         Adopted microcomputer controller, easy to operate .P.I.D. dual-stage temperature control system maintains an accuracy of ±0.1℃

    3.          Main pipes are made of uni-body stainless steel, with uniform heating and low-loss.

    4.         Equipped       with 304 stainless steel high temperature sluice value, with good heat resistant performance.

    5.         With       sufficient safety production and alarming system.

    6.0ptional for high temperature magnetic pump with stable performance and no leakage.

    7.         Adopts   indirect cooling method, which realizes fast heating, makes temperature controller more precise and stable.

    8.         With       automatic shutdown cooling protection function etc.

    9.         With       temperature detecting indication of oil return.

    10.     Multi-machine      parallel is customized.

    11, Sufficient safety protection and visible alarm, easy for maintenance.

    12.Using isolated electric control box, to extend the lives of electric appliances.



    Calculation Formula:

    Heating Power(KW) = mold weight(KG)*mold heat specific (Kcal/KGcC)*molding temperature difference(=C)x safety factor/heating time/860 Notice: Safety factor ranges from 1.3 to 1.5.

    Flow Rate(L/min) = Heating Power(KW)*860/[medium specific heat(Kcal/KG=C)*medium density(KG/L)*inlet and outlet temperature difference*time(60)]



    Notice:

    4.         Water     specific heat = lKcal/KG°C

    5.         Heating  Oil specific heat = 0.49Kcal/KGcC

    6.         Water     density=1KG/L

    Heating  Oil density = 0.842KG/L

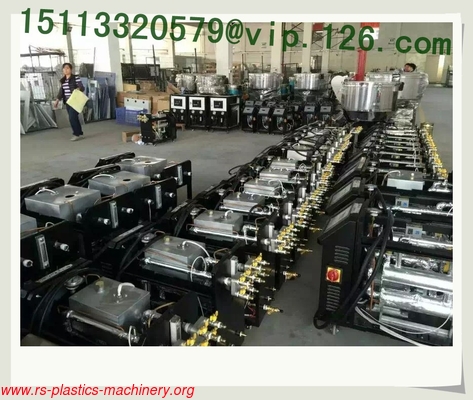

    MTC Under Production

    oil mold temperature controller /Die casting oil MTC/Die Casting Oil Heater/Oil Type MTC





    Specification of the industrial oil mould temperature controllers,



        Model                                                    Unit                RS-TM18KW-370                              RS-TM24KW-370             RS-TM36KW-370

    Temp. Control Range

    5C



    370°C



    Temp. Control Accuracy

    5C



    p.i.d. ±0.1 ℃



    Power Supply





    AC3 380V 50HZ



    Heat Transfer Medium





    Heat Transfer Oil



    Cooling Method





    Indirect Cooling



    Heating Capacity

    KW

    9x2

    12x2

    12x3

    Pump Power

    KW

    1.5

    2.2

    3.75

     Max. Pump Flow

    L/min

    50

    165

    200

    Max. Pump pressure

    KG/cm2

    2.8

    2.8

    3

    Oil Tank Capacity

    Liter

    30

    30

    30

    Alert Function



    Phase-Missing/Water Insufficient/Over-Heat/Over Current

    Cooling Water Pipe

    mm

    12

    12

    12

    Circulating Oil Pipe

    inch

    (1x1)

    (lxl)

    (lxl)

    Dimension(L*W*H)

    mm

    1325*560*1110

    1325*560*1110

    1325*560*1110

    Approx.Net Weight                                  KG                           205                                                     215                                             220

    We reserve the right to change specifications without prior notice.



    Application of the industrial oil mould temperature controllers,



    The  Mold Temperature Controller is suitable for Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines, the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tank ships, paper making industry, bottle blowing, and so on.



    The  Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.

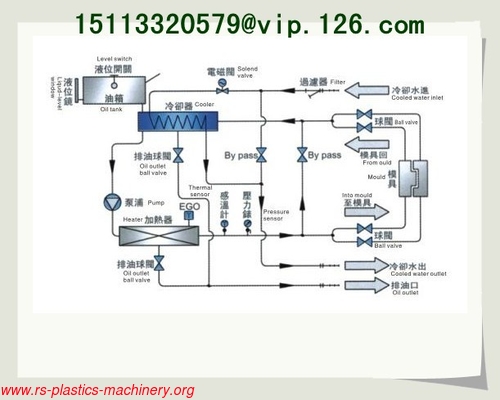

    Working Principle of the industrial oil mould temperature controllers,

    High temperature oil returns to the machine and then be pressured by pump to the heaters, After being heated, oil will be forced to mould and continue the circle. In the process, if the temperature is too high, the system will activate the solenoid valve to let return oil cool down the temp, directly till the oil temp, is down to the system requirement. If the temp, keep rising and reach to the set point of EGO, the system will alarm and stop working if cooling water pressure doesn't reach set point.

    oil mold temperature controller /Die casting oil MTC/Die Casting Oil Heater/Oil Type MTC









    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;





    We do OEM!



    We do B2B, B2C!







    RS Plastics Machinery Co.,LTD   (Zhongshan·China)

    Contact Person

    Mrs. Pearl Zhu

    Position

    Export Manager

    Mobile Phone

    0086-13590932590

    QQ

    263567704

    Wechat APP

    zhhy18

    Skype

    PEARL20128

    E-mail-1

    15113320579@vip.126.com

    E-mail-2

    13590932590@vip.126.com

    Website

    http://www.rs-plastics-machinery.org



    For more choice, please click the following,

    Standard oil type mold temperature controller;

    Dual stage oil type mold temperature controller;

    Water-oil mold temperature controller;

    Standard water type mold temperature controller;

    Double stage water type mold temperature controller;

    High temperature water MTC;
