Item No.: RS-TM-370
China 370℃ Die Casting Mold Temperature Controller OEM Manufactur/High Temperature Oil MTC
E-mail: 15113320579@vip.126.com
Home Page
370°C DIE CASTING MTC
CASTING,RUBBER EXTRUSION,FOAMING,AND OTHER SPECIAL MTC SERIES
Die-casting Mold Temperature Controller
Introduction: Die-Casting Mold Temperature Controller is high function equipment developed specially for die-casting industry. Comp with competitors,this is with higher performance but more reasonable price and it is the best choice for customers of magnesium,aluminum and die-casting.The advantage of this type controller is processing temperature up to 370 CC ;designed with advance process;High accuracy in contrc temperature,fast heat exchange,efficient and energy-saving.
FEATURE:
1. Maximum running temperature as 370 CC .
2. Adopted microcomputer controller, easy to operate .P.I.D. dual-stage temperature control system maintains an accuracy of ±0.1℃
3. Main pipes are made of uni-body stainless steel, with uniform heating and low-loss.
4. Equipped with 304 stainless steel high temperature sluice value, with good heat resistant performance.
5. With sufficient safety production and alarming system.
6.0ptional for high temperature magnetic pump with stable performance and no leakage.
7. Adopts indirect cooling method, which realizes fast heating, makes temperature controller more precise and stable.
8. With automatic shutdown cooling protection function etc.
9. With temperature detecting indication of oil return.
10. Multi-machine parallel is customized.
11, Sufficient safety protection and visible alarm, easy for maintenance.
12.Using isolated electric control box, to extend the lives of electric appliances.
Calculation Formula:
Heating Power(KW) = mold weight(KG)*mold heat specific (Kcal/KGcC)*molding temperature difference(=C)x safety factor/heating time/860 Notice: Safety factor ranges from 1.3 to 1.5.
Flow Rate(L/min) = Heating Power(KW)*860/[medium specific heat(Kcal/KG=C)*medium density(KG/L)*inlet and outlet temperature difference*time(60)]
Notice:
4. Water specific heat = lKcal/KG°C
5. Heating Oil specific heat = 0.49Kcal/KGcC
6. Water density=1KG/L
Heating Oil density = 0.842KG/L
Specification of the industrial oil mould temperature controllers,
Model Unit RS-TM18KW-370 RS-TM24KW-370 RS-TM36KW-370
|
Temp. Control Range
|
5C
|
|
370°C
|
|
|
Temp. Control Accuracy
|
5C
|
|
p.i.d. ±0.1 ℃
|
|
|
Power Supply
|
|
|
AC3 380V 50HZ
|
|
|
Heat Transfer Medium
|
|
|
Heat Transfer Oil
|
|
|
Cooling Method
|
|
|
Indirect Cooling
|
|
|
Heating Capacity
|
KW
|
9x2
|
12x2
|
12x3
|
|
Pump Power
|
KW
|
1.5
|
2.2
|
3.75
|
|
Max. Pump Flow
|
L/min
|
50
|
165
|
200
|
|
Max. Pump pressure
|
KG/cm2
|
2.8
|
2.8
|
3
|
|
Oil Tank Capacity
|
Liter
|
30
|
30
|
30
|
|
Alert Function
|
|
Phase-Missing/Water Insufficient/Over-Heat/Over Current
|
|
Cooling Water Pipe
|
mm
|
12
|
12
|
12
|
|
Circulating Oil Pipe
|
inch
|
(1x1)
|
(lxl)
|
(lxl)
|
|
Dimension(L*W*H)
|
mm
|
1325*560*1110
|
1325*560*1110
|
1325*560*1110
|
Approx.Net Weight KG 205 215 220
We reserve the right to change specifications without prior notice.
Application of the industrial oil mould temperature controllers,
The Mold Temperature Controller is suitable for Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines, the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tank ships, paper making industry, bottle blowing, and so on.
The Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.

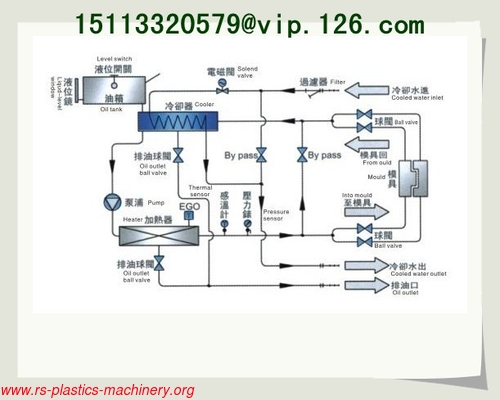

Working Principle of the industrial oil mould temperature controllers,
High temperature oil returns to the machine and then be pressured by pump to the heaters, After being heated, oil will be forced to mould and continue the circle. In the process, if the temperature is too high, the system will activate the solenoid valve to let return oil cool down the temp, directly till the oil temp, is down to the system requirement. If the temp, keep rising and reach to the set point of EGO, the system will alarm and stop working if cooling water pressure doesn't reach set point.
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
