Item No.: RS-P600-3

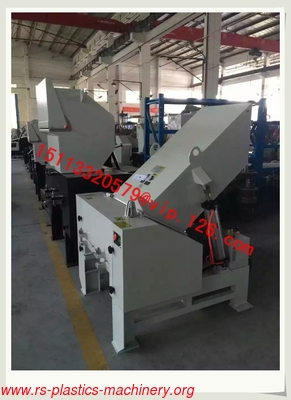

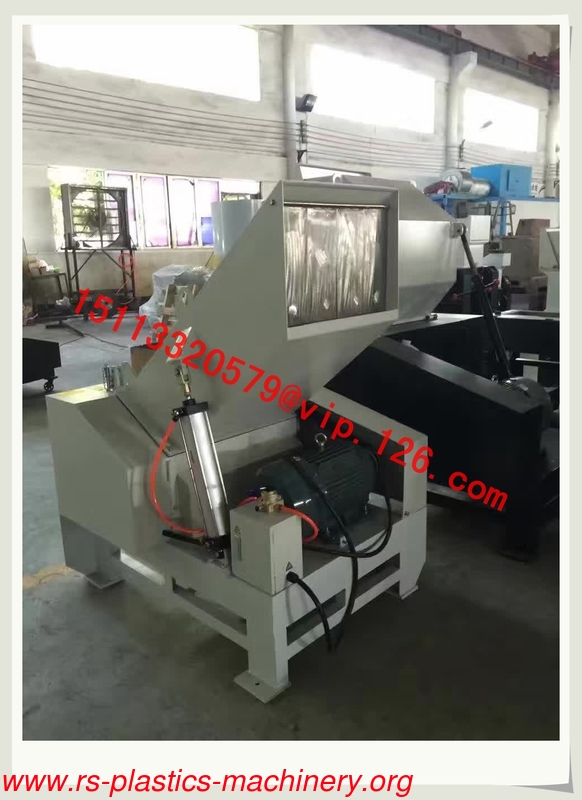

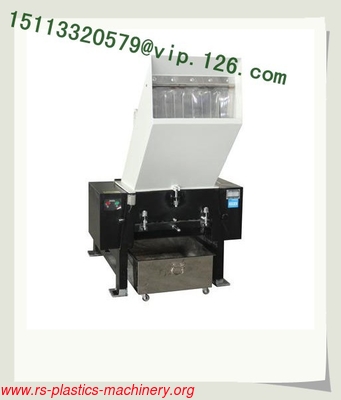

Chinese larger calibre PE/PVC pipe crusher/PE pipere cycling machine
E-mail: 15113320579@vip.126.com
Description of the Plastics Pipe Crusher/ Pipe Crushing machine.
Pipe Crusher performance and scope of application:
Biaxial shredding machine by using two sets of knives of high alloy steel plate shearing each other, and tore up all sorts of plastics pipes.
The machine has produced significant, low energy consumption, low noise,
The characteristics such as low dust, widely used in all kinds of waste plastics pipes coarse crushing, intermediate crushing.
Plastics Pipe Crusher/ Pipe Crushing machine features,
1, This product is suitable to crush big chunks of plastics pipes, that for one shaft shredder can not do it.
2, The casing outside the composite structure of thick plate precision machining, large Angle of six Angle strong axis of rotation, Large diameter solid into the hopper, so you can cut into large raw material;
3, In terms of thickness, shape, order processing design unique rotary knife, shear force is strong, sharp blade, can high efficiency crushing;
4, If there are too much things in the shredder, it has reversal stop and stop function to protect the crusher body, Ensure the safety of use;
5, Low speed, low noise, little dust.
6, Cutting tool made of special alloy steel production, strong and durable;
7, Low speed, low noise, big torque, with mechanical and electrical overload protection, more suitable for larger, thicker plastic pipes broken.
Specification of the Pipe crusher,
Model | RS-P600 | RS-P800 | RS-P1000 | RS-P1200 | RS-P1400 |
Main Motor Power(KW) | 7.5+7.5 | 11+11 | 15+15 | 15+15 | 22+22 |
Shredding Chamber size(mm) | 600*450 | 800*600 | 1000*600 | 1200*600 | 1410*810 |
Rotor diameter(mm) | 220 | 290 | 290 | 300 | 440 |
Spindle speed(r/min) | 15 | 15 | 15 | 12 | 12 |
Rotating blade QTY(pcs) | 60 | 48 | 60 | 100 | 100 |
Fixed blade QTY(pcs) | 20 | 16 | 20 | 20 | 20 |
Blade thickness(mm) | 30 | 50 | 50 | 60 | 70 |
Size(mm) | 1500*800*1600 | 2600*1000*2000 | 2800*1000*2000 | 3200*1000*2400 | 3400*1500*2650 |
Weight(kg) | 900 | 2200 | 2500 | 3200 | 5600 |
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
