Item No.: RS-1hp
China good quality teeth blade cutter low speed crusher/plastic waste recycling grinder manufacturer Best price
Email: 13590932590@vip.126.com

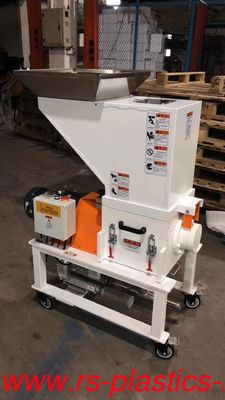

Description of the low speed granulators
The low speed granulators operate in super low speed to cut materials into well proportioned granules. There are least dusts produced in the cutting process. Multiple security devices ensure high safety grade; This series of screenless granulators are suitable for granulating hard and thick materials.
Features of the low speed plastisc granulator,
Japan -made gear motor features steady performance, long service life and high torque
Teeth cutter and cutting blade are integrally fitted in one cutting chamber.
Euro style appearance, compact in size and easy to access for cleaning and maintenance
Transparent pc feeding hopper
good design, well-proportioned of regrinds and least amount of dusts, regrinds could be used with virgin material
Teeth blade cutter
Specification of the plastic granulator,
|
Model
|
TG-1hp
|
TG-2hp
|
TG-3hp
|
|
Motor Power (kW) (50/60Hz)
|
0.75
|
(1.5)
|
(2.2)
|
|
Rotor Speed (rpm) (50/60Hz)
|
24.2
|
24.2
|
24.2
|
|
Material of Teeth Cutters
|
SKD11
|
SKD11
|
SKD11
|
|
Number of Teeth Cutters
|
2
|
3
|
4
|
|
Number of Cutting Cutters
|
1
|
2
|
3
|
|
Cutting Chamber (mm)
|
180x271
|
271x271
|
361x2 71
|
|
Max. Throughput Capacity (kg/hr) (50/60Hz)
|
3
|
6.5-7
|
9-10
|
|
Noise Level dB(A)
|
65-73
|
65-73
|
65-73
|
|
30 secs. Instant Recycling System
|
O
|
O
|
O
|
|
Regrind Conveyeyor (BC Type)
|
O
|
O
|
O
|
|
Dust Separator
|
O
|
O
|
O
|
|
Manual Storage Bin
|
O
|
O
|
O
|
|
Dimesions
|
|
|
|
|
A(mm)
|
326
|
416
|
506
|
|
B(mm)
|
416
|
416
|
416
|
|
C(mm)
|
610
|
610
|
610
|
|
D(mm)
|
387
|
477
|
567
|
|
H(mm)
|
1250
|
1250
|
1250
|
|
Weight(kg)
|
220
|
250
|
310
|
• For stainless steel made feed port and manual storage bin, plus “R” at model behind.
• Max. Capacity of the machine is subject to the size and com -position of the material.
• Noise level will vary with different materials.
• SKD11 is material code number of Japanese JIS standard.
• Teeth cutter blades with 5mm width as standard, 6mm as optional
• In order to avoid plastic blades, all of the materials should be carried out at room temperature crushed.
Powersupply : 3⊙ AC380V ,50Hz
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more details of the Screenless granulators, please contact us for E-sheets!
For more choice of plastic granulator, plastic crusher, plastic machinery products, please contact us for E-catalogue and Price Lists!
If there are any questions on plastic machines, please feel free to contact us.
We can provide all kinds of plastics machinery solutions to meet your special demands accordingly at one-stop purchasing!
