Place of Origin: | China soundproof plastic granulators |
Brand Name: | RS or OEM |
Certification: | CE for plastics recycling granulators |
Model Number: | RS-TG-36-8 |
Minimum Order Quantity: | 1 set of soundproof centralized plastic granulators |
---|---|
Price: | contact us for plastics crusher price |
Packaging Details: | standard export packing of platics granulators |
Delivery Time: | 15 days according to plastic recycling granulator production |
Payment Terms: | T/T, West Union,MoneyGram,L/C etc |
Supply Ability: | 500 sets of mute centralized plastic recycling granulators |
Keyword: | Soundproof Centralized Granulators, Plastic Granulator, Plastic Crusher, | Keywords: | Mute Centralized Plastics Recycling Granulators |
---|
Item No.: RS-TG-36-8
Description of the plastic granulator,
tg-26/36 series is suitable for granulating a variety of plastic materials, including waste materials of injection molding, blowing molding and extrusion molding. This series is compacted in structure, easily operating, conveniently re-blending and powerful granulating ability. Gradual cutting integrated design ensures better cutting efficiency and low level noise.
The Soundproof Centralized Granulator has the following features,
Roasting blade adopts the latest 'v' cutting technology. Plastic materials will be conveyed to the center of roasting cutter, ensuring no materials pasting up on the side wall and prolong its life.
Cutter is made of imported high quality material, with high hardness, long life and wear-resisting ability. It is grinding and reusable.
Cutter base is optional. Simple and convenient blade installation technology ensures roasting blade and fixed blade adjustable in the clamp.
Granulating chamber of high hardness, processed by numerical control machine, has the following features: big thickness, high strength, wear-resisting ability, no contamination, long life and easy maintenance.
Precise design, totally enclosed sound-proofing box with low level noise.
Totally sound-proof charging box enables the granulator running with low level noise. With the material fender, plastic materials will not splash out when granulating. Balanced running, precise corporation, convenient access and easy maintenance. Charging box is uncovered by electric putter, with self-locking function, easy operation. Dust separator is for option. Height of floor stand is adjustable in a range.
Cooling water clip is helpful to efficiently reduce granulate chamber’s temperature.
Additional fixed blades could be used to enhance its granulating ability against massiveness materials.
Against the material with fiber, granulating chamber and other related parts shall be surface hardening treated.
Upon request, it can be built to comply with worldwide electrical safety standard( for example :CE).
Specification of the plastic granulator,
Model |
Motor Power (kw) |
Size of Feeding Inlet(mm) |
Screen Size (mm) |
Max. Breaking Capacity (kg/hr) |
Rotating Blades
Qty.of Paddle Blades / Qty.of Staggered Blades
|
Fixed Blades
|
Weight (kg) |

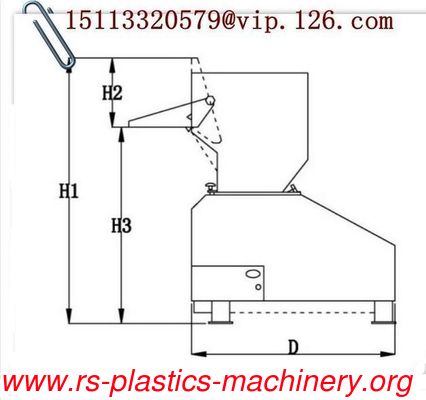

External Size LxWxH (mm) |
||
TG-26 |
30 |
5. 5 |
200x300 |
⊙10 |
270-350 |
3 |
18 |
2 |
310 |
1250x810x1387 |
40 |
7. 5 |
260x400 |
⊙10 |
300-550 |
6 |
24 |
2 |
450 |
1250x910x1387 |
|
50 |
11 |
260x500 |
⊙10 |
400-650 |
6 |
30 |
2 |
650 |
1250x1010x1387 |
|
TG-36 |
60 |
15 |
360x600 |
⊙12 |
400-700 |
6 |
30 |
4 |
1000 |
1425x1156x1850 |
70 |
18. 5 |
360x700 |
⊙12 |
500-800 |
6 |
36 |
4 |
1500 |
1425x1256x1850 |
|
80 |
22 |
360x800 |
⊙12 |
600-900 |
6 |
42 |
4 |
1750 |
1515x1356x1970 |
Note:
1) “ √” denotes standard, “ O ” denotes optional;
2) ”H” denotes increase motor power;
3) The material of storage box is replaced by stainless steel, marked with “R”;
4) SKD11 is material code number of Japanese JIS standard;
5) plastic materials with kinds of fiber (e.g. CPVC) shall be granulated by related granulator, marked with “F” behind;
6) Max throughput capacity depends on diameter of screen hole and materials;
7) Noise level depends on plastic materials and motor configuration ;
8) Noise level test standards m around, 1,6m upward;
9) To avoid pasting up on blade, all plastic materials shall be granulated at normal temperature.
10), power supply :3⊙,380V,50HZ.
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
