    Product Details:

    Place of Origin: China hopper dryer
    Brand Name: RS or OEM
    Certification: CE for hopper dryer manufacturer
    Model Number: RS-189-THD-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of China hopper dryer from Manufacturer
    Price: contact factory for China hopper dryer price
    Packaging Details: standard supplier export packing of China hopper dryer
    Delivery Time: 30 days according to hopper dryer manufacturer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of hopper dryers according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China Hopper Dryer Supplier, China 12kg-1000kg Hopper Dryer Manufacturer, Keyword: China 3 Phases 400V 50Hz Hopper Dryer Manufacturer;

    Item No.: RS-189-THD-300

    Blow Molding Machine Extruder Hopper Dryer/ Plastic Hopper Dryer for Injection Machine



    Description of the China hopper dryer


    The China hopper dryers offer an effective and low-cost method for plastic material drying. Hot air is used to dry wet materials due to moisture absorption during packaging, transportation, and recycling. They can be directly mounted on the molding machine for quick drying and space saving. For this series, hot air blows eventually from bottom to the top (both THD-800 and THD-1000 have down-blowing air pipe and accessible door for easy material clearance) of the hopper with capacity ranging from 12kg to 1000kg. All models can be supplied with optional 24 hours auto start/stop timer.

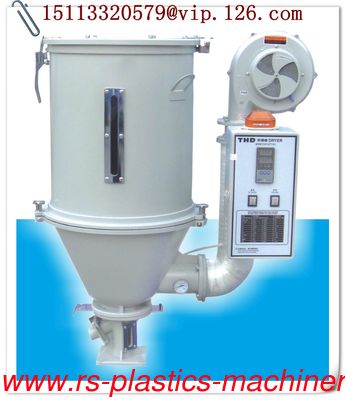

    Reference photo of the China hopper dryer,

    Blow Molding Machine Extruder Hopper Dryer/ Plastic Hopper Dryer for Injection Machine


    Features of the China hopper dryer


    Adopt hot air diffuser to gain an even hot air flow to improve drying efficiency.
    Unique hot air inlet elbow design can prevent dust pilling up at bottom of the pipe heaters so to avoid burning.
    All material contact surfaces are made of stainless steel to eliminate material contamination.
    Separable hopper base provides easy access to hopper tank for the convenience of material changing and cleaning.
    Proportional deviation indicative temperature controller for accurate temperature control.
    Overheat protectors to prevent accidents by human error or mechanical faults.
    Overheat indicating light, motor contactor and overload relay are equipped standard.
    Quick cooling blower and outfitted power switch.
    Preheat timer and double insulated hopper are available as options.
    More optional accessories: L/A type floor stand, dried-material suction box, hopper magnet, magnetic base, hot air recycler, blower inlet filter, exhausted air filter, and cyclone dust separator.





    Specification of the China hopper dryer,

    model

    THD-12

    THD-25

    THD-50

    THD-75

    THD-100

    THD-150

    THD-200

    THD-300

    THD-400

    THD-500

    THD-600

    Drying electric heat ( KW )

    2.2

    3

    3.9

    4.2

    6

    6

    12

    15

    18

    19.5

    21

    Air blower ( kw )

    0.12

    0.12

    0.12

    0.12

    0.18

    0.18

    0.25

    0.25

    0.25

    0.25

    0.55

    Material capacity ( kg )

    12

    25

    50

    75

    100

    150

    200

    300

    400

    500

    600

    A(mm)

    325

    385

    470

    530

    595

    595

    750

    750

    910

    910

    910

    B(mm)

    660

    725

    840

    900

    955

    955

    1230

    1230

    1365

    1365

    1365

    C(mm)

    865

    1015

    1145

    1240

    1340

    1580

    1750

    1985

    2105

    2285

    2530

    D(mm)

    750

    925

    1045

    1150

    1340

    1605

    1480

    1480

    1840

    1840

    2015

    E(mm)

    360

    405

    490

    550

    605

    605

    770

    770

    915

    915

    950

    F(mm)

    370

    460

    520

    620

    725

    970

    975

    1220

    1220

    1400

    1545

    H(mm)

    110

    210

    220

    220

    226

    226

    258

    258

    302

    302

    302

    l(mm)

    170

    170

    170

    170

    166

    166

    158

    158

    222

    222

    222

    G(mm)

    375

    410

    380

    475

    470

    470

    550

    550

    775

    775

    775

    K/L(mm)

    150

    150

    150

    150

    220

    220

    257

    257

    345

    345

    345

    M(mm)

    55

    55

    55

    55

    90

    90

    90

    90

    105

    105

    105

    N.W. (kg)

    35

    40

    45

    55

    70

    75

    120

    120

    165

    170

    240

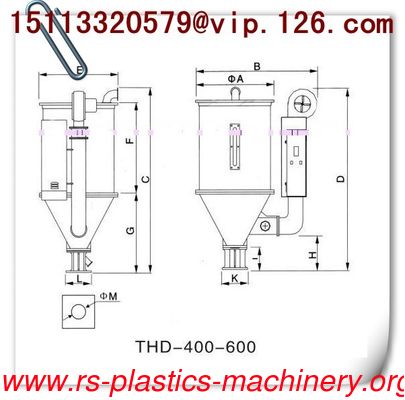

    Drawing of the hopper dryer for model THD-12 to THD-600

    Blow Molding Machine Extruder Hopper Dryer/ Plastic Hopper Dryer for Injection Machine

    Note

    1)Auto-timer, adds “T” to the back of the model.

    2)           Magnetic     base, adds “M” to the back of the model.

    3)           Double insulated layer, adds “I” to the back of the model.

    4)           180       high temperature. Model, adds “H” to the back of the model.

    5)           Change       into single phase voltage, adds “S” to the back of the model (apply to THD-1

    6)           About   loading capacity is based on pellet material of 0.65 in density and in diameter.

    7)         Power:3 phases,380V,50Hz.



    Optional spare parts for  China hopper dryers from factory,

    Blow Molding Machine Extruder Hopper Dryer/ Plastic Hopper Dryer for Injection Machine   Blow Molding Machine Extruder Hopper Dryer/ Plastic Hopper Dryer for Injection Machine

    Photo 1, Cyclone dust separator  for hopper dryer

    Photo 2, Exhaust air filter for hopper dryer

    Blow Molding Machine Extruder Hopper Dryer/ Plastic Hopper Dryer for Injection Machine Blow Molding Machine Extruder Hopper Dryer/ Plastic Hopper Dryer for Injection Machine

       Photo 3,  hot air recycle unit for hopper dryer

       Photo 4,  magnetic base for hopper dryer



    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;
