Model : RS-X300G
All in one White Stainless Steel vacuum hopper loader 300G producer conveying capacity 300kg/hr material auto loader small feeder for injections factory price good quality to Hungary
pls contact to 13590932590@vip.126.com for more detail
Description of the hopper loader,

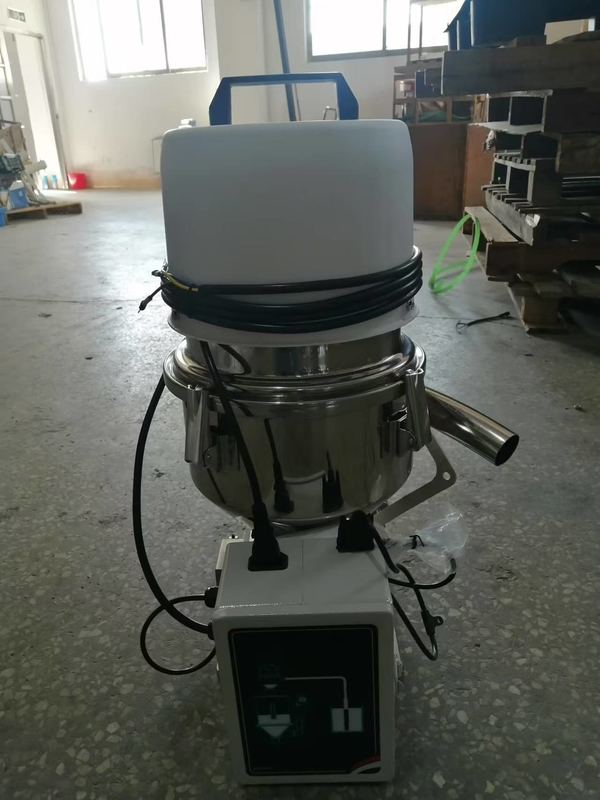

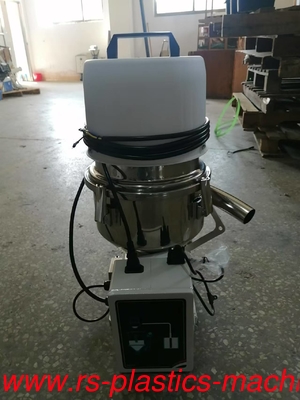

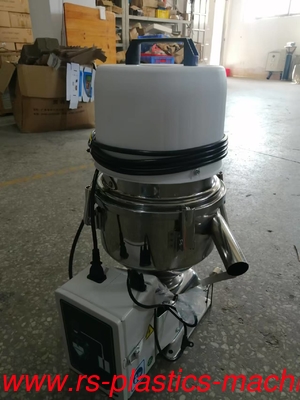

The self-contained vacuum hopper loader 300G use a high-speed motor in this lightweight and compact unit. With superior suction power and easy installation. It is particularly suitable for conveying new materials. The TAL-400 series use a high voltage inductive motor with low noise level and long life. It also has an automatic reversal dust cleaning device.
New 300G Loader
The automatic hopper loader 300G has the following features,
Easy operation and maintenance;
Stainless steel hopper;
Motor protective device;
Buzzer is an option for material shortage alarm;
Auto reversal filtering device and cloth-made filter are standard accessories;
Can be equipped with photo sensor and suitable to be installed on the inlet of molding machine;
Specification of the hopper loader,
|
Model
|
300G |
|
Motor Type
|
Carbon brush |
|
Motor Power (w)
|
1150 |
|
Conveying Capacity
( kg/hr)
|
300 |
|
Hopper Capacity ( L)
|
7.5 |
|
Conveying Pipe Dia. ( mm )
|
⊙38 |
|
Input voltage
|
1 ⊙,220V,50Hz |
|
|
Material Level Control
|
Micro-switch
|
|
Cloth Filter
|
Standard
|
|
Auto-Cleaning Function
|
Standard
|
Dimensions
| H(mm) |
595 |
| W(mm) |
300 |
| D(mm) |
395 |
| N.W,(Kg) |
13 |
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
| Model |
300G |
| Motor Type |
Carbon brush |
| Motor Power (w) |
1150 |
| Conveying Capacity |
300 |
| ( kg/hr) |
|
| Hopper Capacity ( L) |
7.5 |
| Conveying Pipe Dia. ( mm ) |
38 |
| Input voltage |
1 ⊙,220V,50Hz |
| Material Level Control |
Micro-switch |
| Cloth Filter |
Standard |
| Auto-Cleaning Function |
Standard |
For more details of the automatic hopper loader, please contact us for E-sheets!
For more choice of hopper loaders, plastic machinery products, please contact us for E-catalogue and Price !
