One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price

One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price

    • One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price
    • One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price
    • One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price
  • One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price

    Product Details:

    Place of Origin: China desiccant rotor dehumidifier dryer 1 to 4
    Brand Name: RS
    Certification: CCC, CE honeycomb dehumidifier dryer
    Model Number: 1 dehumidifier with four hopper dryers

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit for 1 dehumidifier to 4 hoppers dryer
    Packaging Details: wooden case for 1 to 4 dehumidifier dryer machine
    Delivery Time: 3-10 days for 1 to 4 dehumidifier dryer machine
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100 units/day for 1 to 4 honeycomb dehumidifier dryer machine
    Contact Now
    Detailed Product Description
    Dessciant Rotor Material: 1 Dehumidifier To 4 Hoppers Dryer Keyword: Honeycomb Dessciant Rotor Dryer
    Dry Capacity: 160 Liter 1 To 4 Honeycomb Dehumidifier Dryer Air Flow: 120 M3/hr 1 To 4 Honeycomb Dehumidifier Dryer
    Model: Different 1 To 2, 1 To 3, 1 To 4, 1 To 5,etc

    Item No.: 160L/120H  one dehumidifier with four hopper dryer

    One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price

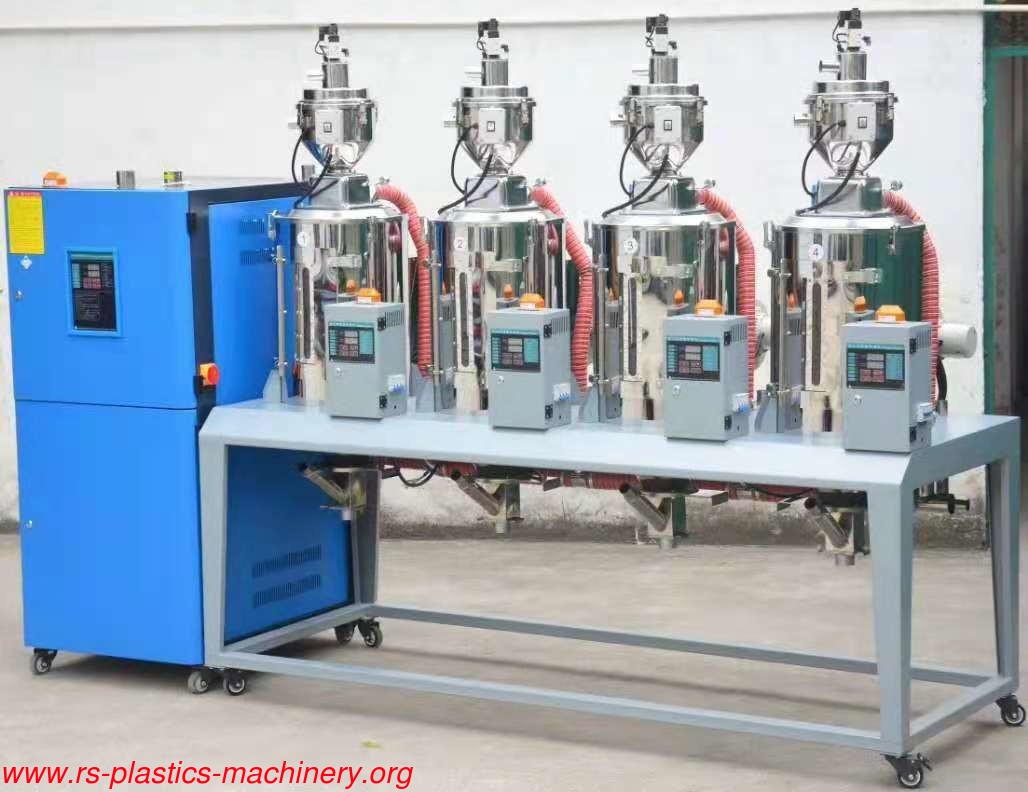

    Description of the China 1 to 4 honeycomb dehumidifier dryer, one dehumidifier with four hopper dryers, one dehumidifier to four  injection machines , very economical & practical

    and high performance to you.



    The honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics. A honeycomb-rotor is used in this series to offer effective drying. We offer two types of honeycomb rotors:H4 and H5 models that, under ideal conditions, can supply dehumidified dry air with a  low dew-point down to -40 and -50,respectively.The TD-H series offers accurate P.I.D temperature control as optional features. This series comprises 14 models of honeycomb dehumidifiers, the largest of which can provide dry air up to a volume of 4000m3/hr.



    One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price



    Features of the China honeycomb dehumidifier,

    The honeycomb dehumidifiers use P.I.D temperature control system, has regenerating temperature settings and real temperature display function.
    Equips with dehumidifying heater and temperature control gauge as options to dry and dehumidify the raw material.
    The dehumidifying system features two condensers to ensure a low return air temperature and low dew-point,
    Main power switch with mechanical chain lock function.

    One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price

    One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price

    Model 40L/30H 80L/50H 120L/80H 160L/120H 230L/150H
    Drying system
    process heater power(KW) 3 3.9 6 6 7.2
    process Blower power(KW) 0.25 0.4 0.75 0.75 1.5
    Drying hopper capacity(L) 40 80 120 120 230
    Dehumidifying system
    Regen heater power(KW) 3 3 3.5 3.5 4
    Regen Blower power(KW) 0.25 0.25 0.25 0.25 0.4
    Dry Air capacity (M3/hr) 30 50 80 120 150
    conveying system
    conveying Blower power(KW) 0.75 0.75 0.75 0.75 1.5
    Dia.of conveying hose (inch) 1.5 1.5 1.5 1.5 1.5
    Vacuum/sensor hopper receiver(L) 3 6 6 6 12
    Dimension
    H (mm) 1670 1670 1670 1860 1860
    W (mm) 1040 1040 1040 1190 1190
    D (mm) 875 875 875 1000 1000
    weight(kg) 200 300 320 505 540
    Model 40L/30H 80L/50H 120L/80H 160L/120H 230L/150H
    Drying system
    process heater power(KW) 3 3.9 6 6 7.2
    process Blower power(KW) 0.25 0.4 0.75 0.75 1.5
    Drying hopper capacity(L) 40 80 120 120 230
    Dehumidifying system
    Regen heater power(KW) 3 3 3.5 3.5 4
    Regen Blower power(KW) 0.25 0.25 0.25 0.25 0.4
    Dry Air capacity (M3/hr) 30 50 80 120 150
    conveying system
    conveying Blower power(KW) 0.75 0.75 0.75 0.75 1.5
    Dia.of conveying hose (inch) 1.5 1.5 1.5 1.5 1.5
    Vacuum/sensor hopper receiver(L) 3 6 6 6 12
    Dimension
    H (mm) 1670 1670 1670 1860 1860
    W (mm) 1040 1040 1040 1190 1190
    D (mm) 875 875 875 1000 1000
    weight(kg) 200 300 320 505 540

    Dehumidifier dryer working principle ;

    One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price

    One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price

    One desiccant wheel rotor dehumidifier to 4 different hoppers materials 3 in 1 Air dehumidifier dryer machine good price
