Model: SCAD-20U
Black Good quality Compressed Air dryer with stainless steel hopper capacity 20L for plastic line Best price to Holland
This compressed Air dryer Applicable for the small batch drying of commonly-used engineering plastics such
as ABS and PS, also suitable for the pre-heating treatment before plastics
molding.
Feature;
l P.I.D. temperature controller can reach the accuracy of ±1℃, The
weekly timer is available with SCAD-12U~40U.
l Adopts compressed air to dry plastic materials with good and stable drying
effect, and is not influenced by ambient temperature and humidity.

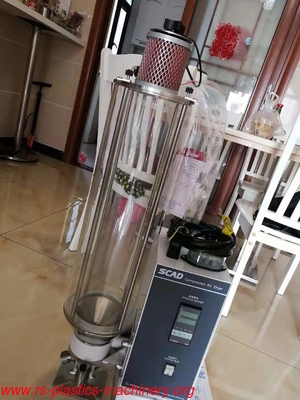

l SCAD-1~6U double-layer thermos table glass tube is easy to observe
material level.
l Storage hopper of SCAD-12~40U is made of stainless steel to ensure no
material contamination.
l Function of compressed air pressure detection makes a safe and reliable
operation.
l Voltage-ouput type temperature controller collocating with SSR control
loop can effectively prolong the lifespan of device.
l Equipped with overheat protection to avoid excessively high drying
temperature.
l Equipped with air outlet filter, which is used to filter dried air exhausted to
outside.
l Warning light can monitor machine normal operation.

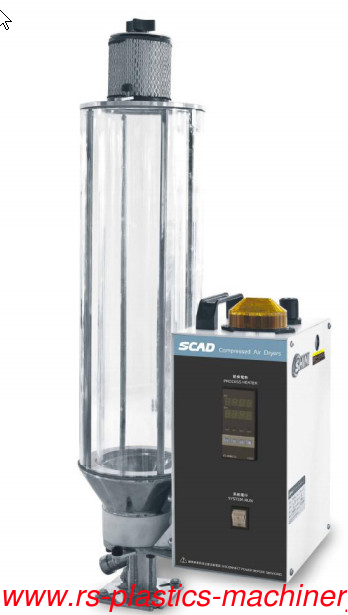

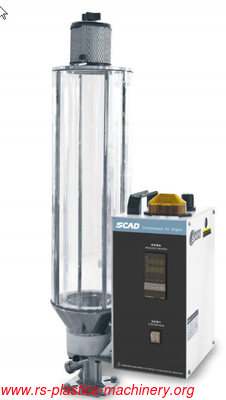

Model 1U,3U,6U-- glass hopper
Model 12U, 20U, 40U stainless steel hopper . with dehumidifier and loader function
Compressed Air dryer Specifications ;
| Model |
Drying Temp Max (℃) |
Drying hopper capacity(L) |
Heater power (W) |
Pressure Air (kgf/cm2) |
FlowRate (m3/hr) |
Dimension(mm) H*W*D) |
weight(KG) |
| SCAD-1U |
160 |
1 |
300 |
6~~10 |
2.4 |
650*310*220 |
10 |
| SCAD-3U |
3 |
3 |
680*320*220 |
13 |
| SCAD-6U |
6 |
3.75 |
870*350*220 |
15 |
| SCAD-12U |
12 |
600 |
4.25 |
780*430*455 |
25 |
| SCAD-20U |
20 |
600 |
7 |
882*467*460 |
30 |
| SCAD-40U |
40 |
1200 |
14 |
1000*530*430 |
45 |
Compressed Air dryer Outline Drawing model 1-6U;
Compressed Air dryer outline Drawing Modl12-40U
Compressed Air dryer Specifications ;
| Model |
Drying Temp Max (℃) |
Drying hopper capacity(L) |
Heater power (W) |
Pressure Air (kgf/cm2) |
FlowRate (m3/hr) |
Dimension(mm) H*W*D) |
weight(KG) |
| SCAD-1U |
160 |
1 |
300 |
6~~10 |
2.4 |
650*310*220 |
10 |
| SCAD-3U |
3 |
3 |
680*320*220 |
13 |
| SCAD-6U |
6 |
3.75 |
870*350*220 |
15 |
| SCAD-12U |
12 |
600 |
4.25 |
780*430*455 |
25 |
| SCAD-20U |
20 |
600 |
7 |
882*467*460 |
30 |
| SCAD-40U |
40 |
1200 |
14 |
1000*530*430 |
45 |
Compressed Air dryer Main Functions

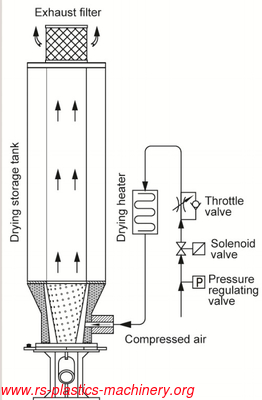

Compressed Air dryer working principle ;
The working principle is that compressed air flows into heating case after through
perssure regulating valve and solenoid valve, and finally exhaust into air. At the
same time, the dew-point is reduced. The heated compressed air is blown into the
heat-preservation hopper to dry materials, and it exhaust into air through filter to
remove water in raw materials.
