Home ProductsHopper dryer/Tray cabinet Oven Dryer

China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price

China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price

    • China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price
    • China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price
    • China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price
    • China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price
    • China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price
  • China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price

    Product Details:

    Place of Origin: China hopper dryer
    Brand Name: RS or OEM
    Certification: CE for hopper dryer manufacturer
    Model Number: RS-189-THD-800-1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of China hopper dryer from Manufacturer
    Price: contact factory for China hopper dryer price
    Packaging Details: standard supplier export packing of China hopper dryer
    Delivery Time: 15 days according to hopper dryer manufacturer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of hopper dryers according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China Hopper Dryer Supplier, China 12kg-1000kg Hopper Dryer Manufacturer, Keyword: China 3 Phases 380V 50Hz Hopper Dryer Manufacturer;
    Capacity: 12-800kg

    Item No.:

    China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price





    Description of the China hopper dryer


    The China hopper dryers offer an effective and low-cost method for plastic material drying. Hot air is used to dry wet materials due to moisture absorption during packaging, transportation, and recycling. They can be directly mounted on the molding machine for quick drying and space saving. For this series, hot air blows eventually from bottom to the top (both THD-800 and THD-1000 have down-blowing air pipe and accessible door for easy material clearance) of the hopper with capacity ranging from 12kg to 1000kg. All models can be supplied with optional 24 hours auto start/stop timer.

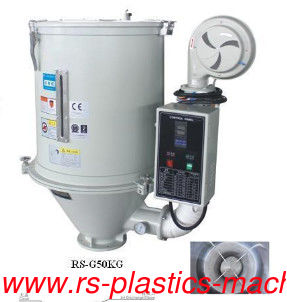

    Reference photo of the China hopper dryer,

    China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price


    Features of the China hopper dryer


    Adopt hot air diffuser to gain an even hot air flow to improve drying efficiency.
    Unique hot air inlet elbow design can prevent dust pilling up at bottom of the pipe heaters so to avoid burning.
    All material contact surfaces are made of stainless steel to eliminate material contamination.
    Separable hopper base provides easy access to hopper tank for the convenience of material changing and cleaning.
    Proportional deviation indicative temperature controller for accurate temperature control.
    Overheat protectors to prevent accidents by human error or mechanical faults.
    Overheat indicating light, motor contactor and overload relay are equipped standard.
    Quick cooling blower and outfitted power switch.
    Preheat timer and double insulated hopper are available as options.
    More optional accessories: L/A type floor stand, dried-material suction box, hopper magnet, magnetic base, hot air recycler, blower inlet filter, exhausted air filter, and cyclone dust separator.





    Specification of the China hopper dryer,



    model

    THD-800

    THD-1000

    Drying electric heat ( KW )

    24

    32

    Air blower ( kw )

    0.55

    1.1

    Material capacity ( kg )

    800

    1000

    A(mm)

    960

    960

    B(mm)

    1420

    1420

    C(mm)

    2700

    3000

    D(mm)

    2240

    2470

    E(mm)

    600

    600

    F(mm)

    540

    540

    H(mm)

    1550

    1845

    l(mm)

    222

    222

    G(mm)

    950

    950

    K/L(mm)

    345

    345

    M(mm)

    105

    105

    N.W. (kg)

    280

    300

    Drawing of the hopper dryer for model THD-800/THD-1000

    China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price

    Note

    1)Auto-timer, adds “T” to the back of the model.

    2)           Magnetic     base, adds “M” to the back of the model.

    3)           Double insulated layer, adds “I” to the back of the model.

    4)           180       high temperature. Model, adds “H” to the back of the model.

    5)           Change       into single phase voltage, adds “S” to the back of the model (apply to THD-1

    6)           About   loading capacity is based on pellet material of 0.65 in density and in diameter.

    7)         Power:3 phases,380V,50Hz.



    Optional spare parts for  China hopper dryers from factory,

    China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price   China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price

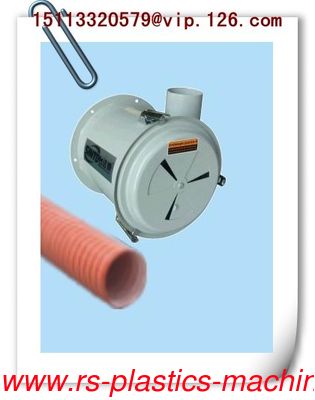

    Photo 1, Cyclone dust separator  for hopper dryer

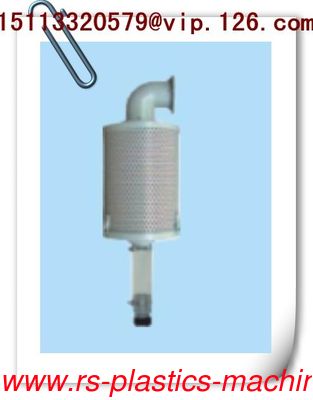

    Photo 2, Exhaust air filter for hopper dryer

    China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price China 12-1000kg Capacity Hopper Dryer plastic dryer electrical hot air dryer for injections OEM Supplier good price

       Photo 3,  hot air recycle unit for hopper dryer

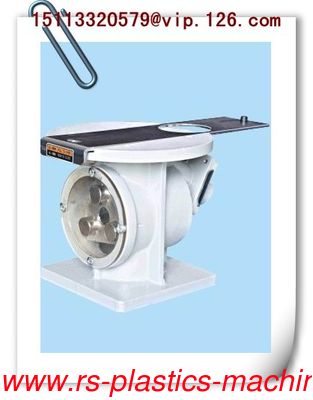

       Photo 4,  magnetic base for hopper dryer



    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;





    We do OEM!



    We do B2B, B2C!







    RS Plastics Machinery Co.,LTD   (Zhongshan·China)

    Contact Person

    Mrs. Pearl Zhu

    Position

    Export Manager

    whatsApp

    0086-13590932590

    QQ

    263567704

    Wechat APP

    zhhy18

    Skype

    PEARL20128

    E-mail-1

    15113320579@vip.126.com

    E-mail-2

    13590932590@vip.126.com

    Website

    http://www.rs-plastics-machinery.org



    For more details of the China hopper dryer, please contact us for E-sheets!



    For more choice of hopper dryer, China plastic machinery products, please contact us for E-catalogue and Price Lists!
