Item No.: RS-300G

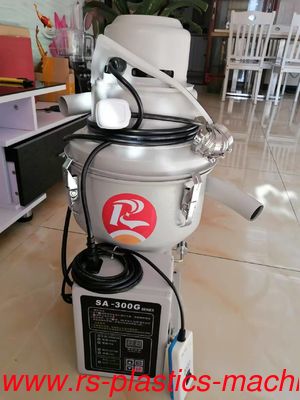

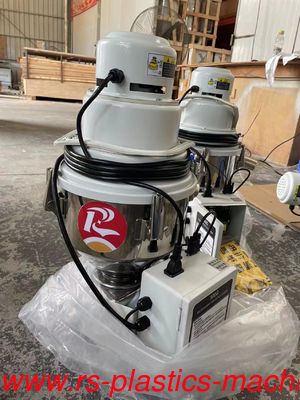

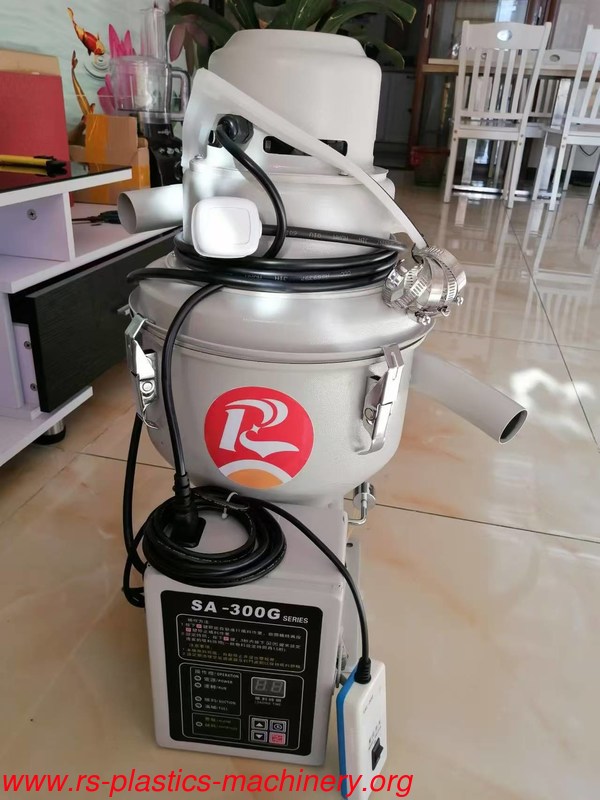

Small Size stainless steel Automatic Plastic Pellet Hopper Loader 300G with Carbon brush Motor
contact to 13590932590@vip.126.com
Description of the hopper loader,
The TAL-300 series use a high-speed motor in this lightweight and compact unit. With superior suction power and easy installation. It is particularly suitable for conveying new materials. The TAL-400 series use a high voltage inductive motor with low noise level and long life. It also has an automatic reversal dust cleaning device.
| Model |
TAL-300C |
| Motor Type |
Carbon brush |
| Motor Power (w) |
1150 |
| Conveying Capacity |
180 |
| ( kg/hr) |
|
| Hopper Capacity ( L) |
6 |
| Conveying Pipe Dia. ( mm ) |
38 |
| Input voltage |
1 ⊙,220V,50Hz |
| Material Level Control |
Micro-switch |
| Cloth Filter |
Standard |
| Auto-Cleaning Function |
Standard |
| Dimensions |
|
| H(mm) |
595*300*395 |
| N.W,(Kg) |
13 |
The automatic hopper loader has the following features,
Easy operation and maintenance;
Stainless steel hopper;
Motor protective device;
Buzzer is an option for material shortage alarm;
Auto reversal filtering device and cloth-made filter are standard accessories;
Can be equipped with photo sensor and suitable to be installed on the inlet of molding machine;

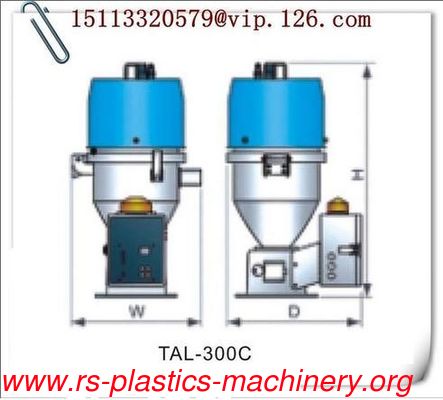

Specification of the hopper loader,
|
Model
|
TAL-300C
|
|
Motor Type
|
Carbon brush
|
|
Motor Power (w)
|
1150
|
|
Conveying Capacity
( kg/hr)
|
180
|
|
Hopper Capacity ( L)
|
6
|
|
Conveying Pipe Dia. ( mm )
|
⊙38
|
|
Input voltage
|
1 ⊙,220V,50Hz
|
|
|
Material Level Control
|
Micro-switch
|
|
Cloth Filter
|
Standard
|
|
Auto-Cleaning Function
|
Standard
|
Dimensions
|
H(mm)
|
595
|
|
W(mm)
|
300
|
|
D(mm)
|
395
|
|
N.W,(Kg)
|
13
|
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more details of the automatic hopper loader, please contact us for E-sheets!
For more choice of hopper loaders, plastic machinery products, please contact us for E-catalogue and Price Lists!
