    Product Details:

    Place of Origin: China low speed plastic granulators
    Brand Name: RS or OEM
    Certification: CE for low speed plastics recycling granulators
    Model Number: RS-TG-3hp

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of low speed plastic granulators
    Price: contact us for low speed plastics crusher price
    Packaging Details: standard export packing of low speed platics granulators
    Delivery Time: 15 days according to low speed plastic recycling granulator production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of low speed plastic recycling granulators
    Contact Now
    Detailed Product Description
    Keyword: Low Speed Granulators, Plastic Recycle Granulators,





    Item No.: RS-3hp

     China Plastic waste recycling machine motor 2,2kw - Low speed crusher with injections no dust good quality

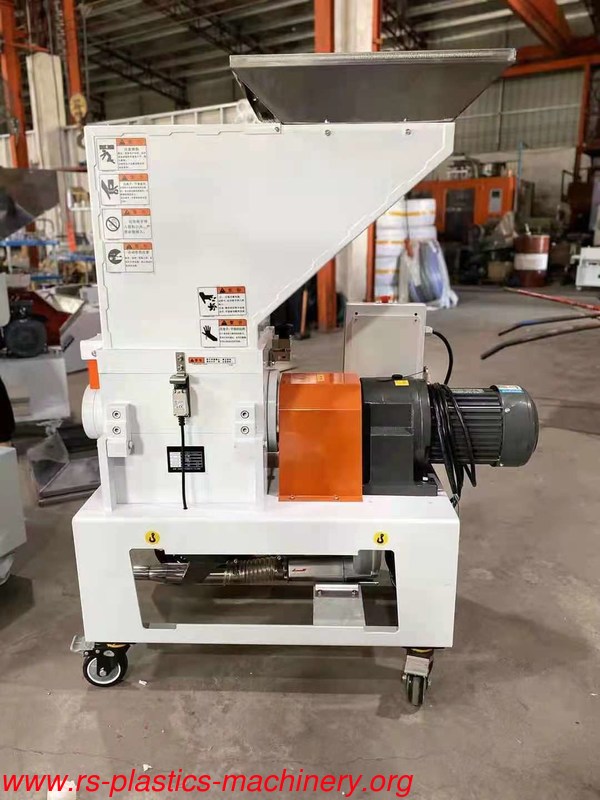

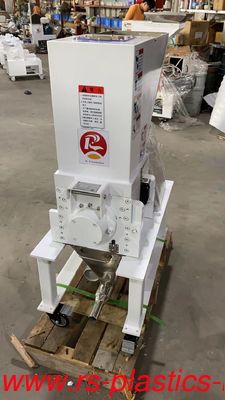

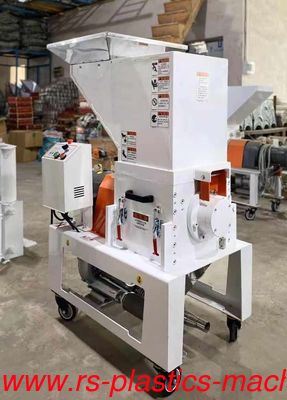

    Description of the screenless granulators

    The TG-2618/27/36 series granulators operate in super low speed to cut materials into well proportioned granules. There are least dusts produced in the cutting process. Multiple security devices ensure high safety grade; This series of screenless  granulators are suitable for granulating hard and thick materials.

     China  Plastic waste recycling machine motor 2,2kw - Low speed crusher with injections no dust good quality



    Features of the screenless plastisc granulator,

    Japan -made gear motor features steady performance, long service life and high torque

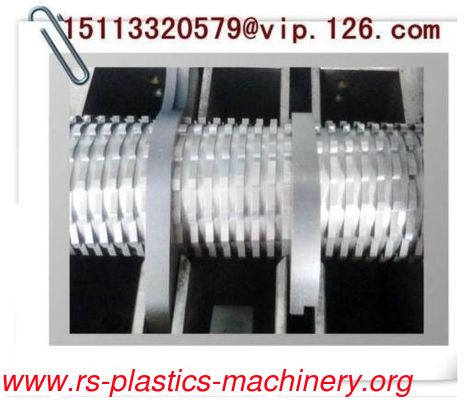

    Teeth cutter and cutting blade are integrally fitted in one cutting chamber.

    Euro style appearance, compact in size and easy to access for cleaning and maintenance

    Transparent pc feeding hopper

    Screenless design, well-proportioned of regrinds and least amount of dusts, regrinds could be used with virgin material

    China  Plastic waste recycling machine motor 2,2kw - Low speed crusher with injections no dust good quality



    Specification of the plastic granulator,

    Model

    TG-1hp

    TG-2hp

    TG-3hp

     Motor Power (kW) (50/60Hz)

    0.75

    (1.5)

    (2.2)



    Rotor Speed (rpm) (50/60Hz)

    24.2

    24.2

    24.2

     Material of Teeth Cutters

    SKD11

    SKD11

    SKD11



    Number of Teeth Cutters

    2

    3

    4



    Number of Cutting Cutters

    1

    2

    3



    Cutting Chamber (mm)

    180x271

    271x271

    361x2 71



    Max. Throughput Capacity (kg/hr) (50/60Hz)

    3

    6.5-7

    9-10



    Noise Level dB(A)

    65-73

    65-73

    65-73



    30 secs. Instant Recycling System

    O

    O

    O



    Regrind Conveyeyor (BC Type)

    O

    O

    O



    Dust Separator

    O

    O

    O

    Manual Storage Bin

    O

    O

    O

    Dimesions







    A(mm)

    326

    416

    506

    B(mm)

    416

    416

    416

    C(mm)

    610

    610

    610

    D(mm)

    387

    477

    567

    H(mm)

    1250

    1250

    1250

    Weight(kg)

    220

    250

    310

    China  Plastic waste recycling machine motor 2,2kw - Low speed crusher with injections no dust good quality

    •             o” Stands for options

    •             For stainless steel made feed port and manual storage bin, plus “R” at model behind.

    •             Max. Capacity of the machine is subject to the size and com -position of the material.

    •             Noise level will vary with different materials.

    •             SKD11 is material code number of Japanese JIS standard.

    •             Teeth cutter blades with 5mm width as standard, 6mm as optional

    •             In order to avoid plastic blades, all of the materials should be carried out at room temperature crushed.

                 Powersupply : 3⊙  AC380V ,50Hz
