Item No.: RS-TM-900W4
Oil Circulation Heater Temperature Controller Oil temeprture controller for injections manufacturer good price agent need
Description of the Oil Type Mold Temperature Controller,
The TM-O series of Oil heaters mold temperture controller are used to heat up the mould and maintain this temperature. Besides, they can also be used in other similar applications. High temperature water from the mould is cooled by direct cooling and then sent to the pipe heaters via high-pressure pump for heating to a constant temperature. With our optimized design, water can reach a maximum of 120℃.equipped and the accurate PID multi-stage temperature control system can maintain an accuracy of ±1°C.
Features of the Water Type Mold Temperature Controller,
PID multi-stage temperature control system can maintain a mould temperature with accuracy ± 1°C.
Multiple safety devices can automatically detect abnormal performance and indicate this via visible alarm.
Accurate temperature control achieved by direct cooling and quick heat transfer by automatic water supply facility.
Inner parts made from stainless steel to ensure corrosion-free operation.
Attractive appearance, easy to access and maintain.
Specification of the industrial mould temperature controllers,
|
Model
|
Max.
Temperature
|
|
Heater
kW
|
Pump (KW)
|
Max Pump Flow
(L/min)
|
Max pump pressure
(bar)
|
Healing chamber number
|
Healing chamber numbed
(L)
|
Cooling
Method
|
Mould Coupling
( inch)
|
Dimensiors
(HxWxD)
|
N.W.
(Kg)
|
|
RS-TM-600W
|
|
6
|
0.5
|
27
|
3.8
|
1
|
3.0
|
Direct
|
3/8" (2x2)
|
635x280x740
|
60
|
|
RS-TM-600W-D
|
|
6x2
|
0.5x2
|
27x2
|
3.8
|
2
|
3.0x2
|
3/8" (4x2)
|
655x510x740
|
100
|
|
RS-TM-900W
|
|
9
|
0.75
|
42
|
5.0
|
1
|
3.0
|
3/8" (2x2)
|
655x280x740
|
72
|
|
RS-TM-900W-D
|
120℃
|
9x2
|
0.75x2
|
42x2
|
5.0
|
2
|
3.0x2
|
3/8" (4x2)
|
655x510x740
|
105
|
|
RS-TM-1200W
|
|
12
|
1.5
|
74
|
6.2
|
2
|
6.0
|
3/8" (4x2)
|
695x340x815
|
120
|
|
RS-TM-2400W
|
|
24
|
2.8
|
130
|
8.0
|
2
|
7.4
|
1" (1 x2)
|
870x360x930
|
140
|
|
RS-TM-3600W
|
|
36
|
4.0
|
200
|
8.0
|
4
|
17.4
|
980x415x930
|
165
|
Note,
1), In order to maintain stable temperature of heat transfer media, cooling water
pressure should be no less than 2kg/cm3,but also no more than 5kg/cm3.
2) Automatic drain facility can be added for all models as optional feature. (Model denotes “ R ”)
3) “ D ” stands for double stage.
4) Pump testing standard: Power of 50Hz,purified water at 20
Application of the industrial mould temperature controllers,
The Mold Temperature Controller is suitable for Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines, the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tank ships, paper making industry, bottle blowing, and so on.
The Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.
Working Principle of the industrial mould temperature controllers,

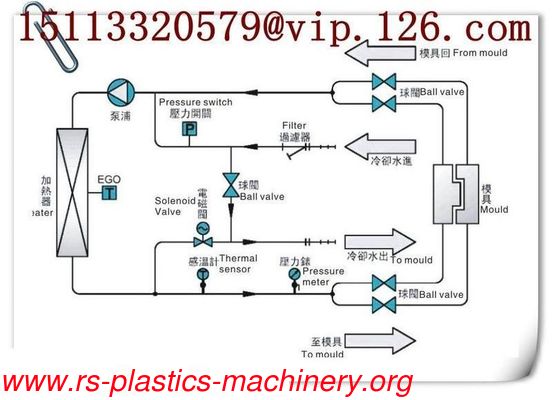

High temperature water returns to the machine and then be pressured by pump to the heaters, After being heated, water will be forced to mould and continue the circle In the process, if the temperature is too high, the system will activate the solenoid valve to let cooling water cool down the temperature directly until the water is down to the system requirement. If the temp, keep increasing and reach to the set point of EGO, system will alarm and stop operation. The system will have low pressure alarm and stop working if cooling water pressure doesn't reach set point.
Model Selection Guide for TM-W series of Water Mould Temperature Controllers,
|
Mold Camping Force
(T)
|
Molding Capacity
Kg/hr
|
Pump Flow
L/min
|
|
|
Less than 25
|
less than 3
|
10
|
|
|
25-50
|
3-6
|
25/27
25/27
25/27
|
|
|
50-100
|
6-12
|
|
|
100-200
|
12-25
|
|
|
200-300
|
25-40
|
40/38
|
|
300-650
|
40-80
|
60/58
|
|
More than 650
|
80
|
120/100
|
