    Product Details:

    Place of Origin: China 3-in-1 dryer,dehumidifier and conveyer
    Brand Name: RS or OEM
    Certification: CE for dryer, dehumidifier and conveyer 3-in-1 manufacturer
    Model Number: RS-222A-TCD-300L/150H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of China dryer, dehumidifier and conveyer from Manufacturer
    Price: contact factory for good price
    Packaging Details: standard supplier export packing of China dehumidifiers
    Delivery Time: 30 days according to dryer, dehumidifier and conveyor manufacturer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of dryer, dehumidifiers and conveyor according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China All-in-one Compact Dryers Manufacturer; China Full-integral All-in-one Compact Dryer OEM Facto Keyword: Dryer, Dehumidifier And Conveyer Three-in-one, China Plastic Industry Dryer Manufacturer;
    Hopper Capacity: 300Litres Air Flow: 150 M3/hr

    Item No.: RS-222A-TCD-300L/150H

     Good quality Desiccant wheel rotor blue 3-in-1 plastic dehumidifier dryer machine manufacturer good price agent wanted



    pls send inquiry to 13590932590@vip.126.com

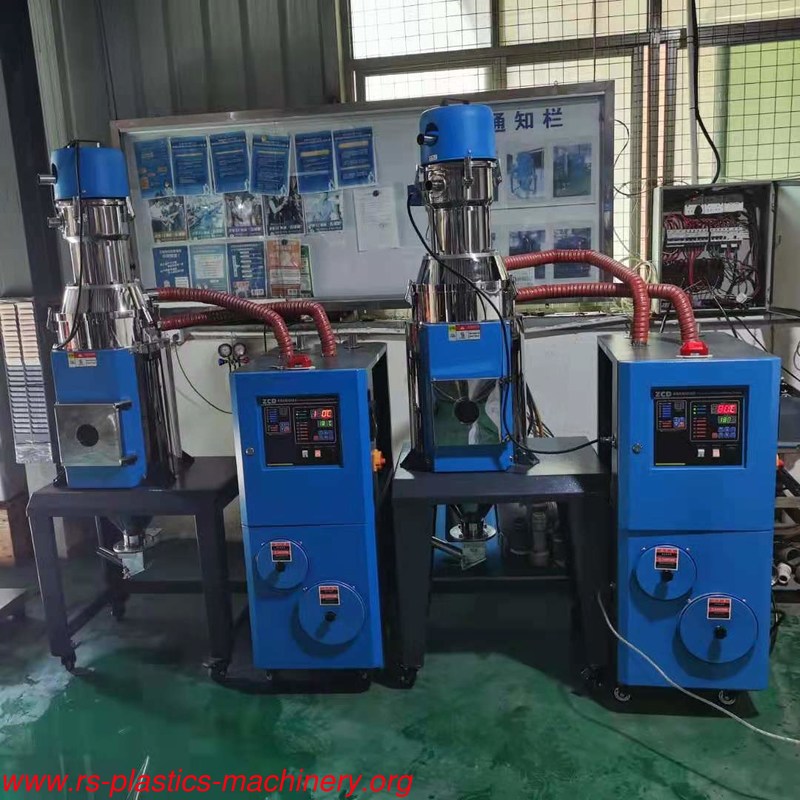

    Description of the dryer dehumidifier conveyer all-in-one compact dryer

    The "Three-in-One" compact dryers combine drying, dehumidifying, and two-stage conveying function in a single unit. They are suitable for drying hygroscopic engineering plastics, such as PA, PC, PBT, PET etc. A honeycomb rotor is used in the dehumidifying section.

    Good  quality Desiccant wheel rotor  blue 3-in-1 plastic dehumidifier dryer machine manufacturer good price agent wanted



    Features of the dryer dehumidifier conveyer 3-in-1 dryer,

    TCD series compact dryers are equipped with honeycomb rotor for dehumidifying. They have two kinds of design: Fully-integral and semi-integral depending on the size.

    Suitable for drying hygroscopic engineering plastics such as PA, PC, PBT, PET etc.

    Integration of dehumidifying, drying, and two-stage conveying functions in a single unit. Three-stage conveying is also available as an option.

    Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption which maintaining a steady drying effect.

    Closed-loop conveying system eliminates the possibility of moisture re-absorption during material conveying.

    The dehumidifying section of TCD series features two condensers to ensure a low return air temperature and low dew-point.

    Equipped with pneumatic shut-off valve to ensure no material remains in the material line after each loading cycle.

    Material processing is controlled via microprocessor as standard with touch screen PLC control as an option for centralized and automatic operation.

    Dew-point monitor can be fitted to monitor and display dry air dew-point.

    Good  quality Desiccant wheel rotor  blue 3-in-1 plastic dehumidifier dryer machine manufacturer good price agent wanted

    Specification of the dryer dehumidifier conveyer all-in-one dryer,





    Model

    RS-TCD- 20L/30H

    40L/30H

    40L/50H

    80L/50H

    120L/80H

    160L/80H

    160L/120H 230L/120H

    230L/150H

    300L/150H

    300L/200H

    450L/200H



    Drying System



    Process Heater Power( kw )



    3

    3

    3.9

    3.9

    6

    6

    6

    6

    7.2

    7.2

    12

    12

    Process Blower Power (KW)



    0.18

    0.4

    0.4

    0.4

    0.75

    0.75

    0.75

    0.75

    1.5

    1.5

    1.5

    1.5

    Drying Hopper Capacity(L)



    20

    40

    40

    80

    120

    160

    160

    230

    230

    300

    300

    450



    Dehumidifying System



    Regen. Heater Power( KW )



    3

    3

    3

    3

    3.5

    3.5

    3.5

    3.5

    4

    4

    5.4

    5.4

    Regen. Blower Power( kw )



    0.18

    0.18

    0.18

    0.18

    0.18

    0.18

    0.18

    0.18

    0.4

    0.4

    0.4

    0.4

    i  Dry Air Capacity( m3/hr)

    30

    50

    50

    50

    80

    80

    120

    120

    150

    150

    200

    200



    Conveying System



    Conveying Blower Power( kw )



    0.75

    0.75

    0.75

    0.75

    0.75

    0.75

    0.75

    1.5

    1.5

    1.5

    1.5

    1.5

    Dia. of Conveying Hose (inch )



    1.5

    1.5

    1.5

    1.5

    1.5

    1.5

    1.5

    1.5

    1.5

    1.5

    1.5

    1.5

    THR-U-E Hopper Receiver ( L )



    3

    3

    3

    6

    6

    6

    6

    12

    12

    12

    12

    12

    THR-U Hopper Receiver( L )



    3

    3

    3

    6

    6

    6

    6

    12

    12

    12

    12

    12



    Dimensions



    H(mm)

    1490

    1550

    1550

    1800

    1990

    1860

    1860

    2070

    2130

    2160

    2160

    2350

    W(mm)

    1000

    1040

    1040

    1105

    1105

    1190

    1190

    1190

    1425

    1460

    1460

    1460

    D(mm)

    875

    875

    875

    875

    875

    875

    875

    875

    1015

    1020

    1020

    1020

    N.W. ( Kg )

                  305

    325

    335

    325

    340

    385

    505

    515

    540

    560

    565

    595

    Note,

    1), “*” stands for by-pass at blower air outlet;

    2), Power supply: 3 phases, 380V, 50Hz;
