3p 460V Industry Flake Blade Crusher/ Plastic Crusher Supplier/Powerful plastic grinder/Plastic granulator with CE certification
E-mail: 15113320579@vip.126.com
Home Page
Description of the flake cutter crushers
Our granulators include claw cutter series, flat cutter series and blade cutter series. They are applicable to a wide range, can meet a wide variety of requirements, able to granulate & recycle all kinds of plastics material of different texture and shapes.
Flake type cutter crusher/granulator are adopt with sealed bearings which can handle long hour
operation, the unique design of the cutter ensure the equality of granule sizes, thecutteraretreatedthermal
colour
Colour as customers request .
flake type blade cutter are fit for recycling and restoring of conventional sheets, tube plastics
,profiles, packing plastics, extrusion mold products and runners,etc.
Specification of the GY Claw cutter strong crushers/grinder/granulator
| Model | GY-10hp | GY-15hp | GY-20hp | GY-30hp | GY-50hp | TG-75hp |
| Crushing chamber(mm) | 260X360 | 420X280 | 480X330 | 660X350 | 720X500 | 955X820 |
| Crushing ability(kg/h) | 200-300 | 300-500 | 300-500 | 500-800 | 800-1200 | 850-1300 |
| Stationary cutter | 2 | 2 | 2 | 2 | 2 | 4 |
| Rotary cutter | 18 | 21 | 24 | 27 | 27 | 30 |
| Power | KW | 4 | 7.5 | 11 | 15 | 22/30 | 37/45 |
| HP | 5 | 10 | 15 | 20 | 30/40 | 50/60 |
| Dimensions( LxWxH cm) | 95X62X120 | 107X84X139 | 124X94X163 | 139X107X184 | 175X143X228 | 196X171X277 |
| net Weight(kg) | 290 | 516 | 850 | 900 | 1800 | 3000 |

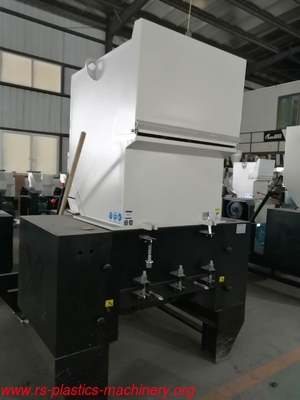

GY-50HP under production
Claw crusher are Loading
Blade cutter/knives
Machine color--- green, blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more details of the Claw Type Powerful Granulators, please contact us for E-sheets!
For more choice of plastic granulator, plastic crusher, plastic machinery products, please contact us for E-catalogue and Price Lists!
If you need the price of the plastic crusher, please do send an E-mail to: 15113320579@vip.126.com
