Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei

Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei

    • Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei
    • Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei
    • Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei
    • Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei
  • Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei

    Product Details:

    Place of Origin: China honeycomb dehumidifier
    Brand Name: RS or OEM
    Certification: CE for honeycomb dehumidifier manufacturer
    Model Number: RS-TD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of China honeycomb dehumidifier from Manufacturer
    Price: contact factory for honeycomb dehumidifier price
    Packaging Details: standard supplier export packing of China dehumidifiers
    Delivery Time: 15 days according to honeycomb dehumidifier manufacturer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of dehumidifiers according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Product: China Dehumidifiers OEM Factory, China Dehumidifying Dryer; Keyword: China Honeycomb Dehumidifier Manufacturers
    Condition: New Plastic Honeycomb Dehumidifier Warranty: ONE Year For Plastic Honeycomb Dehumidifier

    Item No.: RS-TD



     Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei





    If you need the price of the Honeycomb Dehumidifier, please do send an E-mail to:

    15113320579@vip.126.com



    Home Page





    Description of the China honeycomb dehumidifier,

    The honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics. A honeycomb-rotor is used in this series to offer effective drying. We offer two types of honeycomb rotors:H4 and H5 models that, under ideal conditions, can supply dehumidified dry air with a dew-point down to -40 and -50 centi-degree respectively.The TD-H series offers accurate P.I.D temperature control as optional features. This series comprises 14 models of honeycomb dehumidifiers, the largest of which can provide dry air up to a volume of 4000m3/hr.

    Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei





    Features of the China honeycomb dehumidifier,

    The honeycomb dehumidifiers use P.I.D temperature control system, has regenerating temperature settings and real temperature display function.
    Equips with dehumidifying heater and temperature control gauge as options to dry and dehumidify the raw material.
    The dehumidifying system features two condensers to ensure a low return air temperature and low dew-point,
    Main power switch with mechanical chain lock function.



    Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei







    Specification of the honeycomb dehumidifier,







    Model

    30H

    50H

    80H

    120H

    150H

    200H

    300H

    400H

    500H

    700H

    1000H

    1500H

    2000H

    3000H

    Process Air Flow  ( rrf/hr)

    30

    50

    80

    120

    150

    200

    300

    400

    500

    700

    1000

    1500

    2000

    3000

    Process Heater  (kw)



    3

    3.9

    6

    6

    7.2

    12

    15

    18

    21

    24

    32

    58

    80

    96



    Process Blower ( kw)



    0.2

    0.4

    0.75

    0.75

    1.5

    1.5

    3

    3.4

    5.5

    5.5

    9

    9x2

    13x2

    13x3

    (



    Regen .heater  kw)

    0.2

    0.2

    0.2

    0.2

    0.4

    0.4

    0.75

    0.75

    1.5

    1.5

    2.4

    3.4

    5.5

    7.5



    Regen. Blower (kw)



    3

    3

    3.5

    3.5

    4

    5.4

    7.2

    7.2

    10

    10

    15

    20

    20

    30

    Pipe Dia.  t ( inch )

    2"

    2"

    2"

    2"

    2.5"

    2.5"

    3"

    3"

    4"

    4"

    5"

    6"

    8"

    8"



    Voltage

    3⊙,380V,50Hz

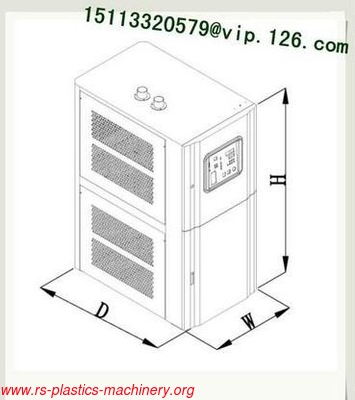

    Dimensions

    H(mm)

    1260

    1260

    1360

    1360

    1560

    1560

    1745

    1745

    1935

    1935

    2145

    2145

    2060

    2500

    W(mm)

    480

    480

    530

    530

    660

    660

    700

    700

    900

    900

    1300

    1300

    1410

    1600

    D(mm)

    755

    755

    820

    820

    1050

    1050

    1255

    1255

    1380

    1380

    1550

    1910

    2150

    2160

    Weight( kg )

    80

    80

    120

    140

    215

    225

    240

    280

    290

    300

    400

    510

    630

    760

    Note:*Process heater is optional to be used with a drying hopper.

    Note: we reserve the right to change specification without prior notice.





    Plastic Injection Industry Honeycomb Dehumidifier with Low Dew Point/ Honeycomb Dehumidifier for Brunei






    Machine color--- blue or grey white, or others;



    Machine brand--- factory brand, OEM brand or no brand;





    We do OEM!



    We do B2B, B2C!
