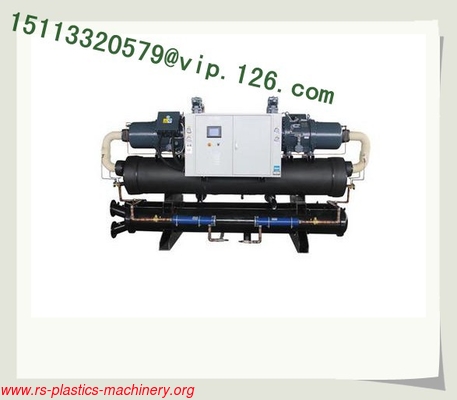

RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller

RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller

    • RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller
    • RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller
    • RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller
    • RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller
  • RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller

    Product Details:

    Place of Origin: China Open Type Chiller
    Brand Name: RS or OEM
    Certification: CE for China water-cooled central water chillers manufacturer
    Model Number: RS-L80WS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of Open Type Chiller
    Price: contact us for water-cooled central water chiller price
    Packaging Details: standard export packing of industry water-cooled central water chillers
    Delivery Time: 15 days according to water-cooled central water chiller production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of water-cooled central water chillers according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Product: Open Type Chiller,China Water-cooled Water Chillers Manufacturer, China Water-cooled Central Water C Keywords: China Industrial Chillers OEM Factory; China Water Chillers OEM Plant;
    Condition: New Dual Screw Compressor Chiller Warranty: ONE Year For Dual Screw Compressor Chiller

    Item No.: RS-L80WS


      RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller

    If you need the price of the dual screw compressor chiller, please do send an E-mail to: 15113320579@vip.126com



    Home Page




    Description of the  open type chillers,

    The central water-cooled chillers adopt German made BITZER with twin screw compressors, models with one or two compressors, suitable for using R22.R407 and R134a refrigerants. High efficiency condenser and evaporator have manufactured under national "BR1” standard. Featuring stable heat exchange and ease of maintenance, advanced controller with built-in microprocessor which gives better performance than single chip based unit.

     RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller




    Features of the water cooled central water chillers,


    Dual Screw Compressor Chiller/ OPEN TYPE CHILLERS

    1. Industrial Chillers are widely used in many industries like plastic and rubber manufacturing, electronic productions, electroplating, medical chemistry, ultrasonic cooling and printing business etc. It could accurately provide needed temperature for modem industrial manufacturing and largely improve efficiency and product quality. Our Industrial Chillers are with simple operation. reasonable design and superior quality for more than one hundred different models, which are the best choice for modem industries.

    2. Regarding to high power industrial chiller, screw type chiller is available.

    3. Screw type chiller adopts screw compressor, high efficiency, low noise, durable service, reliable operation.

    RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller




    Specification of the water-cooled central water chillers,


    Model Unit RS-L30WS RS-L40WS RS-L50WS RS-L60WS RS-L80WS RS-L100WS RS-L120WS RS-L150WS RS-L180WS
    Refrigerating Capacity KW 88 118 152 172 230 292.8 343 492 530
    Kcal/h 75680 101480 130720 147920 197800 251808 295152 423120 455800
    Input Power KW 22 30 36 45 60 37.9x2 45x2 114 135
    Control Type   Expansion Valve
    Power       3HP-380V/50HZ(200V/220V/415V 50HZ/60HZ)
    Evaporator Type   Shell and Tube Type
    Cooling water flow m3/h 19 21 26 30 39 55 68 86 96
    Water Page diameter inch 3" 3" 3" 3" 4" 4" 5" 5" 6"
    Refrigerant Type   R22(R407C)
    Compressor Type   Semi-Hermetic Screw
    Quantity   2001-2-4
    Start up mode   Y-△
    Capacity control % 0-25-50-75-100
    Condenser Type   Shell and Tube Type
    Cooling water flow m3/h 21 26 33 40 45 69 85 108 122
    Water page diameter inch 3" 3" 3" 3" 4" 4" 5" 5" 4"x2
    Safty Protection   High and low Pressure Protection,Over Load Protection,Over Temperature Protection,Phase Sequence Protection etc.
    Dimensions (L*W*H) mm 1980*750*1580 2350*750*1580 2550*750*1580 2550*785*1600 3600*765 *1650 3600*765 *1750 3850*765 *1750 3880*875 *1850 3910*875 *1950
    Unit Exchange   1KW=860Kcal/h 1RT=3024Kcal/h 1Btu/hr=0.252Kcal/h



    RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller

    Model Unit RS-L240WS RS-L280WS RS-L320WS RS-L360WS RS-L440WS RS-L500WS RS-L560WS RS-L640WS RS-L720WS
    Refrigerating Capacity KW 792 872 980 1198 1380 1564 1768 1960 2396
    Kcal/h 681120 749920 842800 1030280 1186800 1345040 1520480 1685600 2060560
    Input Power KW 181 196 227 273 308 345 401 456 547
    Control Type   Expansion Valve
    Power       3HP-380V/50HZ(200V/220V/415V 50HZ/60HZ)
    Evaporator Type   Shell and Tube Type
    Cooling water flow m3/h 136 150 168 206 240 273 308 337 412
    Water Page diameter inch 6" 6" 6" 8" 8" 10" 10" 10" 10"
    Refrigerant Type   R22(R407C)
    Compressor Type   Semi-Hermetic Screw
    Quantity   2001-2-4
    Start up mode   Y-△
    Capacity control % 0-25-50-75-100
    Condenser Type   Shell and Tube Type
    Cooling water flow m3/h 170 186 220 252 294 334 372 416 506
    Water page diameter inch 4"x2 5"x2 5"x2 6"x2 6"x2 6"x2 6"x2 8"x2 8"x2
    Safty Protection   High and low Pressure Protection,Over Load Protection,Over Temperature Protection,Phase Sequence Protection etc.
    Dimensions (L*W*H) mm 4150*1320 *2150 4250*1320 *2150 4350*1320 *2150 4450*1580 *2230 4900*1600 *2350 4950*1760 *2360 5010*1760 *2360 4310*2350 *2630 4310*2350 *2750
    Unit Exchange   1KW=860Kcal/h 1RT=3024Kcal/h 1Btu/hr=0.252Kcal/h



    Note: 1.Cooling Capacity is calculated based on: inlet/outlet chilled fluid temperature: 12℃/7℃, inlet/outlet cooling water temperature: 30℃/35℃.

    2.Working condition: Chilled fluid temperature from 5℃ to35℃, Inlet/outlet chilled fluid Temperature difference from 3℃ to 8℃.

    Cooling water temperature: from 18℃to 37℃, Inlet/outlet cooling water Temperature difference: from 3.5℃ to 10℃.

    We reserve the right to modify above information without prior notice.



     RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller



    Foundation and Installation of the water cooled central water chillers,

    Selection of Installation Environment,

    1)           Please select a firm and solid ground which can fully support machine when running. The ground selection has also to avoid any happens of vibration and loudly environment.

    2)           The    machine should be installed on a place without any exposures from wind, rain, sunlight, or any heat source occurrence.

    3)           Ambient   temperature is from 0 to 40. Relative Humidity (RH) is within 75%.

    4)           The    installation environment should be well ventilated and less dust.
    When install, please preserve a maintenance space, as shown blow. For the cleaning of the condenser, please reserve space of 0.8L on the left or right side of the machine.


    Foundation Base

    1 )The foundation of the concrete base, according to the operation weight of the machines, will put on steel bars, diameter above 9.5 mm, and are clustered together on the upper and lower layer of the base, interspaced about 100mm.

    5)           When making concrete floor to be foundation. it is necessary to rough the surface. Clean the floor before the installation.

    6)           The    concrete base has to be rigid; the mixing proportion of concrete is

    1:2:4.Put required anchor bolts into base, according to the request. Polishing and flat the surface of the base when finished.

    7)           Put      the machine on the base when it is fully dried out and rigid.
    It    has to be a well drainage works around the base to prevent water remaining.

     RS-L80WS Dual Screw Compressor Water Chiller/ Anodizing Electroplating Chiller Water Cooled Chiller


    Machine color--- blue or gray white and black, or others;



    Machine brand--- factory brand, OEM brand or no brand;




    We do OEM!



    We do B2B, B2C!
