    Product Details:

    Place of Origin: China gravimetric dosing mixer
    Brand Name: RS or OEM
    Certification: CE for gravimetric dosing mixer
    Model Number: RS-TGB-40-4-1R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of gravimetric dosing mixer
    Price: contact us for gravimetric mixer price
    Packaging Details: standard export packing of weighing type mixing machine
    Delivery Time: 15 days according to weighing type mixer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of gravimetric mixers
    Contact Now
    Detailed Product Description
    Product: Weighing Type Mixer, Gravimetric Dosing Mixers, Keyword: Plastic Mixing Machine; Weighing Type Mixing Machine;
    Condition: New Plastic Material Gravimetric Doser Warranty: ONE Year For Plastic Weighing Mixer

    Item No.: RS-TGB-40-4-1R





     China plastic mixing machine OEM Supplier/China Weighing Type Color Mixing Machine For USA





    E-mail: 15113320579@vip.126.com



    Home Page

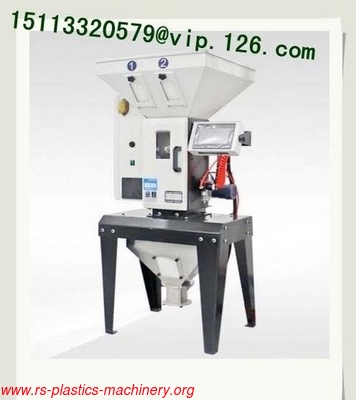

    Description of the Gravimetric Dosing Mixers

    RS-TGB series gravimetric blenders adopt a new generation of single-chip microprocessor, more powerful , faster operation speed , stronger anti-interference ability of single-chip microprocessor ,with automatic compensation function , when turn on the unit it could automatically calibrated to ensure precision accuracy .

    gravimetric blenders series can be used in the fields of injection molding machine, blow molding machines and extrusion lines of proportionally precise mixing of several types of material.

     China plastic mixing machine OEM Supplier/China Weighing Type Color Mixing Machine For USA





    Features of the Gravimetric Dosing Mixers

    1, adopt a new generation of single-chip microprocessor, more powerful, faster operation speed, stronger anti-interference ability.

    2, Memory block using EEPROM, the setting data will not be lost when power is off, no battery;

    3,Using the HMI status display, touch keyboard data entry , the operation more convenient and can save a lot of recipe data ( 500 groups )

    4,High speed and high precision AD grab weight more rapid and stable;

    5,All of the material through the gravimetric blenders after uniform mixing, can strictly control precision;

    6,To choose a weight data and the selection of raw materials for verification, ensure the precision and accuracy of mixing;

    7,Can be installed directly on the molding equipment, but it should be optional adapter base

    8,The aircraft used for ground installation, with optional cut-off valve with pneumatic , tripod, storage tank and suction box combination .

    China plastic mixing machine OEM Supplier/China Weighing Type Color Mixing Machine For USA





    Specification of the Weighing Type Mixer,



    Model RS-TGB-40-
    4 4-1R 4-2R 4-3R 3 3-1R 3-2R 2 2-1R
    Group number 4 3 2
    Knife metering quantity 4 3 2 1 3 2 1 2 1
    Screw metering quantity [-] 3 2 1 [-] 2 1 [-] 1
    Maximum batch quantity (kg) 0.6
    Compress Air (kg/㎡) [5-6]
    Mixing motor power (KW) 0.09
    Maximum output (kg/hr) 40 40 35 30 50 50 45 60 55
    Machine Voltage 1⊙, 220V, 50Hz







    Model RS-TGB-80-
    4 4-1R 4-2R 4-3R 3 3-1R 3-2R 2 2-1R
    Group number 4 3 2
    Knife metering quantity 4 3 2 1 3 2 1 2 1
    Screw metering quantity [-] 3 2 1 [-] 2 1 [-] 1
    Maximum batch quantity (kg) 1.5
    Compress Air (kg/㎡) [5-6]
    Mixing motor power (KW) 0.2
    Maximum output (kg/hr) 80 80 65 50 90 90 70 140 120
    Machine Voltage 1⊙, 220V, 50Hz





    Model RS-TGB-200-
    4 4-1R 4-2R 4-3R 3 3-1R 3-2R 2 2-1R
    Group number 4 3 2
    Knife metering quantity 4 3 2 1 3 2 1 2 1
    Screw metering quantity [-] 3 2 1 [-] 2 1 [-] 1
    Maximum batch quantity (kg) 2.8
    Compress Air (kg/㎡) [5-6]
    Mixing motor power (KW) 0.2
    Maximum output (kg/hr) 200 200 180 160 220 220 160 350 240
    Machine Voltage 1⊙, 220V, 50Hz







    Model RS-TGB-600-
    4 4-1R 4-2R 4-3R 3 3-1R 3-2R 2 2-1R
    Group number 4 3 2
    Knife metering quantity 4 3 2 1 3 2 1 2 1
    Screw metering quantity [-] 3 2 1 [-] 2 1 [-] 1
    Maximum batch quantity (kg) 8
    Compress Air (kg/㎡) [5-6]
    Mixing motor power (KW) 0.37
    Maximum output (kg/hr) 600 600 520 500 650 650 500 1000 700
    Machine Voltage 1⊙, 220V, 50Hz





    Note, 1, proportion error is the D-value from set data to actual proportion

    2, Knife metering is suitable for proportion above 5%, the error can below ±0.3%.

     3, Screw or micro quantity metering is suitable for 0.5% to 5% proportion, the error can be below ±0.1%

    4, The result above is got from test with granule of 3-4mm diameter, aggregation degree 0.8,

    5,continuous running



    6, Machine voltage specification: 1⊙, 220V,50Hz;

    China plastic mixing machine OEM Supplier/China Weighing Type Color Mixing Machine For USA





    Machine color--- blue or grey white and black, or others OEM;



    Machine brand--- factory brand, OEM brand or no brand;





    We do OEM!
