    Product Details:

    Place of Origin: China color mixer
    Brand Name: RS or OEM
    Certification: CE for volumetric single color mixer
    Model Number: RS-TCM-30-14

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of volumetrc dosing color mixer
    Price: contact us for plastics color mixer price
    Packaging Details: standard export packing of volumetric dosers
    Delivery Time: 30 days according to volumetric dosing color mixer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of volumetric single color mixers
    Contact Now
    Detailed Product Description
    Product: Volumetric Single Color Mixer, Volumetric Dosing Color Mixer, Keyword: Plastic Mixing Machine,volumetric Dosers;
    Condition: New Volumetric Color Mixer Warranty: ONE Year For Columetric Color Mixer

    Item No.: RS-TCM-30-14





    Made in China plastic volumetric doser for blow moulding machine For Venezuela/Volumetric color mixer with Best Price



    E-mail: 15113320579@vip.126.com

    Home Page

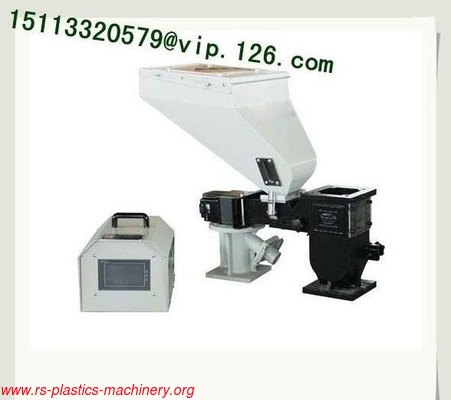

    Description of the volumetric single color mixer,
    The volumetric dosers color mixer are suitable for auto-proportional mixing of new material, regrind, master batch and additives. A brushless DC motor is used in this series. The microprocessor accurately controls rotation of the high precise dosing screws to squeeze out materials with an accuracy of 1% form set point. A gear motor with deceleration ratio of 30:1 or 100:1 is coupled to a dosing screw of six models with output ranging from 0.1~32kg/hr. Double color doser can be supplied to match with two single color doser if required by clients.
       Made in China plastic volumetric doser for blow moulding machine For Venezuela/Volumetric color mixer with Best Price



    Features of the volumetric color mixer

     Everlasting data memorizer and settings storage.
    Use brushless DC motor and free from maintenance.
    Microprocessor control, intelligent and accurate in calculation.
    External signals can be directly interfaced with the control box.
    Dosing screws are chrome plated for durability.
    Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.
    Three-tubes hopper magnet is equipped at the base of the single color doser to absorb metal impurities so to prevent the screw of molding machine from damage.
    Single color doser takes base blender as an option to make blending more evenly.
    Blender built-in a standard accessory for double color doser and it can meet client's need for double blending.
    Main material hopper is a standard accessory for double color mixer. It is optional for single color mixer.



    Made in China plastic volumetric doser for blow moulding machine For Venezuela/Volumetric color mixer with Best Price


    Made in China plastic volumetric doser for blow moulding machine For Venezuela/Volumetric color mixer with Best Price






    Specification of the volumetric color mixer,



    Model RS-TCM-30/16 RS-TCM-30/14 RS-TCM-30/12 RS-TCM-100/16 RS-TCM-100/14 RS-TCM-100/12
    Motor Power (KW) 0.06 0.06 0.06 0.06 0.06 0.06
    Rev (r.m.p) 0-3000 0-3000 0-3000 0-3000 0-3000 0-3000
    Mixer Power (KW) 0.09 0.09 0.09 0.09 0.09 0.09
    Screw External Dia (mm) 16 14 12 16 14 12
    Output Capacity (kg/hr) 1.1-32 1.1-20 0.3-10 0.5-15 0.2-8 0.1-4
    Storage Bin (L) 10 10 10 10 10 10
    Gear Ratio 30:1 30:1 30:1 100:1 100:1 100:1
    Main Material Hopper optional optional optional optional optional optional
    Mixer optional optional optional optional optional optional
    Floor Stands optional optional optional optional optional optional
    Dimensions
    H (mm) 580 580 580 580 580 580
    W (mm) 530 530 530 530 530 530
    D (mm) 290 290 290 290 290 290
    Weigh (kg) 29 29 29 29 29 29



    Voltage:1⊙,220V,50Hz.
