    Product Details:

    Place of Origin: China Central Feeding System
    Brand Name: RS or OEM
    Certification: CE for Central Feeding System manufacturer
    Model Number: RS-198A-TMS-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of China Central Feeding System
    Price: contact factory for China Central Feeding System price
    Packaging Details: standard export packing of China Central Feeding System
    Delivery Time: 15 days according to Central Feeding System production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 5 sets of Central Feeding System according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: Central Feeding System, China Metal Detecting Separators Manufacturer, China Industrial Metal Detect Keyword: China Metal Grains Detecting And Separating Machine Manufacturer;

     China Plastic Industry Central Feeding and Conveying System For Colombia

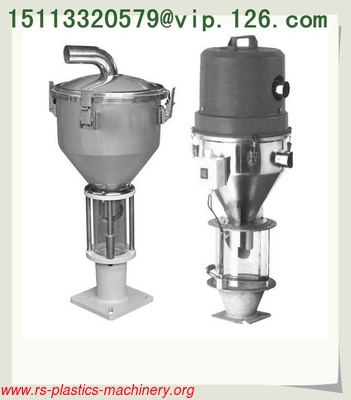

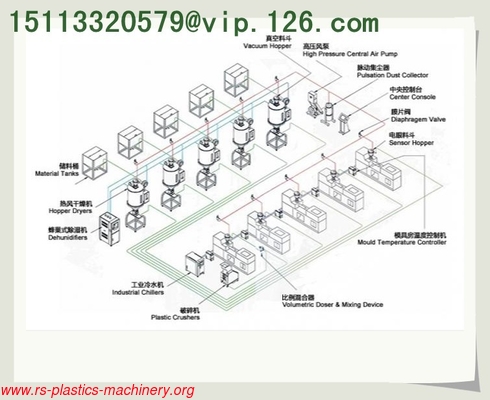

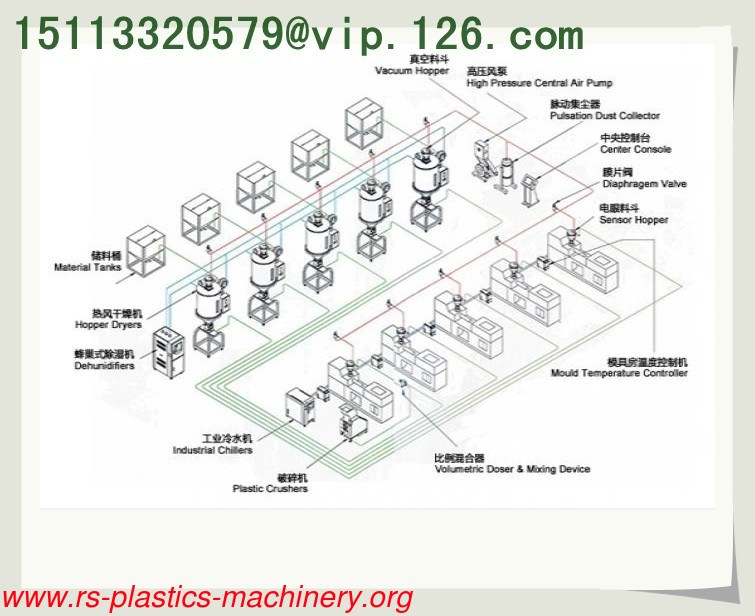

    Central Conveying System

    China Plastic Industry Central Feeding and Conveying System For Colombia

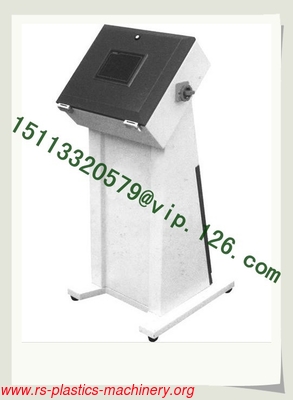

    Central Control Unit

    China Plastic Industry Central Feeding and Conveying System For Colombia





    Diaphragm Valve

    China Plastic Industry Central Feeding and Conveying System For Colombia





    Discharge Valve

     China Plastic Industry Central Feeding and Conveying System For Colombia



    Dust Collector

    China Plastic Industry Central Feeding and Conveying System For Colombia

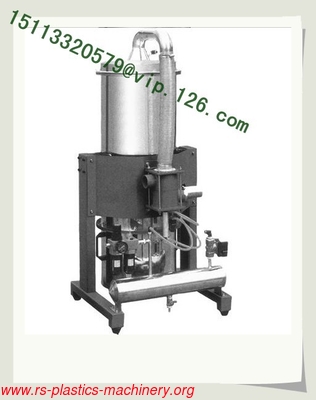

    High Power Central Air Pump

    China Plastic Industry Central Feeding and Conveying System For Colombia





    Stainless Steel Sensor Hopper

    China Plastic Industry Central Feeding and Conveying System For Colombia





    Description of the Metal detecting separators



    Metal detecting separators are highly sensitive and accurate in detecting and separating metal grains, such as steel, iron, copper, aluminum, lead, tin and so on. Its principle is when metal impurities pass through it, electrical detector can send a signal to control board to start valve to discharging. System takes little space and ensure good performance. It can be installed directly on injectors or (extruders)hoppers to protect the screw of machine from the damage caused by hard metals. These are four models of the series:TMS-30~150,processing capacity can reach up to 25000L/hr to meet any specific requirements.

     China Plastic Industry Central Feeding and Conveying System For Colombia



    Features of the Metal Detecting Separators,



    Fast separating all the metals from the material.
    The minimum detectable diameter of the metals can be as small as 0.4mm.The accuracy is adjustable according to the actual needs.
    Compact design, easy to install and simple to operate.
    Mount directly on injector or extruder hoppers to protect facilities from the damage caused by hard metals.
    Standard equipped with a 12 liters hopper and horse.
    The specific size of hoppers and stands can be customer made to meet any requirements.



    Working principle of the metal detecting separators,

    The blanking tube is set with a circular metal sensors. When the raw material goes through feed tube, if the metal sensor did not sense a metal, the sensor will not give out a signal, and the dividing plate is on the left in the working position.

    the raw material goes out from the feeding tube and dividing plate as Shown in Figure 1.

    When the metal-containing material goes through the feeding tube , the metal sensor is sensitive to metal by output a signal to the sub-feeder, the dividing plate moves to the right position.

    The raw material goes out from feed tube and dividing plate as Shown in Figure 2.

    China Plastic Industry Central Feeding and Conveying System For Colombia



    Specification of the Metal Detecting Separators,

    Model

    TMSC-50

    TMSC-70

    TMSC-100

    TMSC-120

    Inlet dia ( mm)

    46

    71

    99

    119

    Accuracy ( Fe dia mm)

    0.5

    0.7

    0.9

    1.0

    Max capacity (L/hr)

    2000

    5000

    12000

    16000

    Installation high (mm)

    370

    370

    473

    473

    Dimensions



    Height H(mm)

    370

    370

    473

    473

    Width W(mm)

    348

    348

    370

    370

    Deepth D(mm)

    320

    320

    340

    340

    Weight (kg)

    23

    23

    25

    25

    Note,1⊙,220V,50Hz;



    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;





    We do OEM!



    We do B2B, B2C!







    RS Plastics Machinery Co.,LTD   (Zhongshan·China)

    Contact Person

    Mrs. Pearl Zhu

    Position

    Export Manager

    Mobile Phone

    0086-13590932590

    QQ

    263567704

    Wechat APP

    zhhy18

    Skype

    PEARL20128

    E-mail-1

    15113320579@vip.126.com

    E-mail-2

    13590932590@vip.126.com

    Website

    http://www.rs-plastics-machinery.org



    For more details of the China Metal Detecting Separator, please contact us for E-sheets!



    For more choice of Metal Detecting Separator, China plastic industry machinery  products, please contact us for E-catalogue and  Price Lists!
