China Plastic Material Central Conveying System For Venezuela

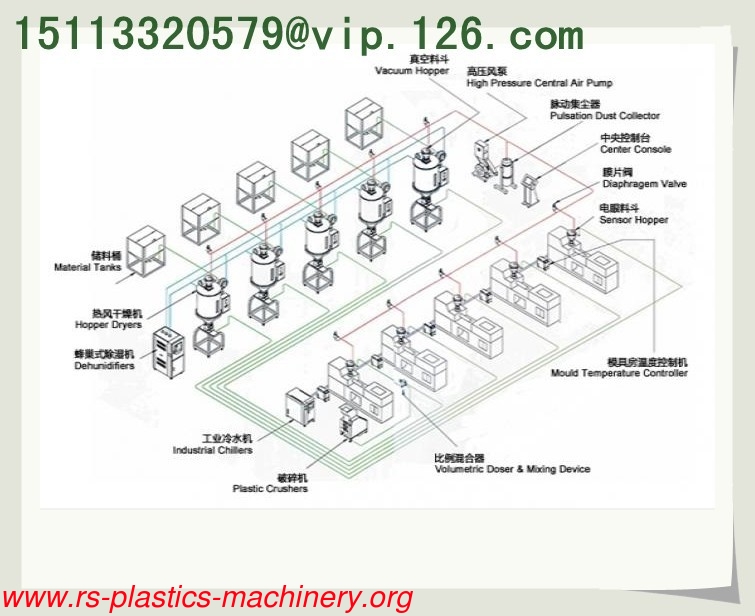

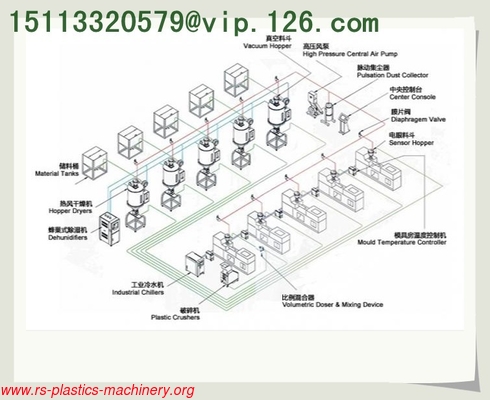

Central Conveying System

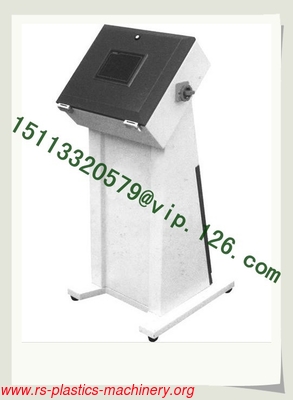

Central Control Unit
Diaphragm Valve
Discharge Valve
Dust Collector

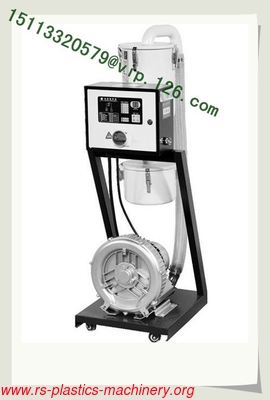

High Power Central Air Pump

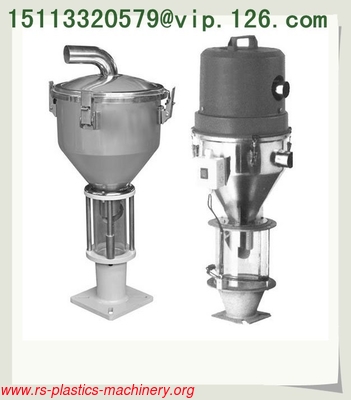

Stainless Steel Sensor Hopper
Description of the Metal detecting separators
Metal detecting separators are highly sensitive and accurate in detecting and separating metal grains, such as steel, iron, copper, aluminum, lead, tin and so on. Its principle is when metal impurities pass through it, electrical detector can send a signal to control board to start valve to discharging. System takes little space and ensure good performance. It can be installed directly on injectors or (extruders)hoppers to protect the screw of machine from the damage caused by hard metals. These are four models of the series:TMS-30~150,processing capacity can reach up to 25000L/hr to meet any specific requirements.
Features of the Metal Detecting Separators,
Fast separating all the metals from the material.
The minimum detectable diameter of the metals can be as small as 0.4mm.The accuracy is adjustable according to the actual needs.
Compact design, easy to install and simple to operate.
Mount directly on injector or extruder hoppers to protect facilities from the damage caused by hard metals.
Standard equipped with a 12 liters hopper and horse.
The specific size of hoppers and stands can be customer made to meet any requirements.
Working principle of the metal detecting separators,
The blanking tube is set with a circular metal sensors. When the raw material goes through feed tube, if the metal sensor did not sense a metal, the sensor will not give out a signal, and the dividing plate is on the left in the working position.
the raw material goes out from the feeding tube and dividing plate as Shown in Figure 1.
When the metal-containing material goes through the feeding tube , the metal sensor is sensitive to metal by output a signal to the sub-feeder, the dividing plate moves to the right position.
The raw material goes out from feed tube and dividing plate as Shown in Figure 2.
Specification of the Metal Detecting Separators,
|
Model
|
TMSC-50
|
TMSC-70
|
TMSC-100
|
TMSC-120
|
|
Inlet dia ( mm)
|
46
|
71
|
99
|
119
|
|
Accuracy ( Fe dia mm)
|
0.5
|
0.7
|
0.9
|
1.0
|
|
Max capacity (L/hr)
|
2000
|
5000
|
12000
|
16000
|
|
Installation high (mm)
|
370
|
370
|
473
|
473
|
|
Dimensions
|
|
|
Height H(mm)
|
370
|
370
|
473
|
473
|
|
Width W(mm)
|
348
|
348
|
370
|
370
|
|
Deepth D(mm)
|
320
|
320
|
340
|
340
|
|
Weight (kg)
|
23
|
23
|
25
|
25
|
Note,1⊙,220V,50Hz;
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more details of the China Metal Detecting Separator, please contact us for E-sheets!
For more choice of Metal Detecting Separator, China plastic industry machinery products, please contact us for E-catalogue and Price Lists!
