    Product Details:

    Place of Origin: China high temperature water mold temperature controller
    Brand Name: RS or OEM
    Certification: CE for China water mold temperaturer controller manufacturer
    Model Number: RS-HTHPW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of high temperature Water Mold Temperature Controller
    Price: contact us for Water Mold Temperature Controller price
    Packaging Details: standard export packing of Water Mold Temperature Controller
    Delivery Time: 15 days according to Water Mold Temperature Controller production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of Water Mold Temperature Controller according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China High Temperature Water Mold Temperature Controller Manufacturer, China Water Heaters OEM Facto Keyword: China High Temperature Industrial Mold Temperature Controllers Supplier,MTC;

    Item No.: RS-HTHPW

    High temperature high pressure water MTC/ High temperature water MTC Good Price



    E-mail: 15113320579@vip.126.com



    Home Page



    Description of the Water Type Mold Temperature Controller,

    The water heaters are used to heat up the mould and maintain this temperature. Besides, they can also be used in other similar applications. High temperature water from the mould is cooled by direct cooling and then sent to the pipe heaters via high-pressure pump for heating to a constant temperature. With our optimized design, water can reach a maximum of 180.equipped and the accurate PID multi-stage temperature control system can maintain an accuracy of ±1°C.

     High temperature high pressure water MTC/ High temperature water MTC Good Price



    Features of the Water Type Mold Temperature Controller,



    1.         Adopted      microcomputer controller, easy to operate. P.I.D. multi-stage temperature control system can maintains an accuracy of ±0.1CC.

    2.         Adopted      with high efficiency water cycle pump. with which precise mouds and mold loop with minor diameter can achieve precise temperature controller and high efficient heat exchange.

    3.         Multiple       safety devices including high-pressure protection, overheat protection, inlet water pressure deficit protection, safety pressure relieving, automatic water supplying, air exhausting and automatic shutdown cooling protection function.

    4.         Main     pipes are made of uni-body 304 stainless steel.

    5.         Temperature      control range within 180CC ( Optional for magnetic pump ) .

    6.         Adopts  indirect cooling method ,which makes temperature controller more precise and realizes fast heat exchange.

    7.         Adopts  magnetic pump with stable performance and no leakage

    8.         Water    manifolds and Teflon hose are optional.

    9. Sufficient safety protection and visible alarm, easy for maintenance.

    10, Isolated box type electric control provides long life time service.



     Specification of the water high temperature controller,

    Model

    Unit    RS-TM6KW-HTW

    RS-TM9KW-HTW

    RS-TM12KW-HTW

    RS-TM6KW-HTHPW

    RS-TM8KW-HTHPW

    RS-TM12KW-HTI-

    Temp.Control Range

    °C



    1605C





    180°C



    Temp.Control Accuracy

    5C



    P.I.D ±0.1°C





    P.I.D ±0.1°C



    Power Supply





    AC3cp 380V/50HZ





    AC3cp 380V/50HZ



    Heat Transfer Medium









    Water





    Cooling Method







    Indirect Cooling





    iHeating Power

    KW

    6

    9

    12

    6

    9

    12

    Pump Power

    KW

    0.37

    0.75

    0.75

    0.5

    1.1

    1.1

    Max.Pump Flow

    L/min

    42

    135

    135

    30

    53

    53

    Max.Pump Pressure

    KG/cm2

    2

    2.5

    2.5

    3

    5

    5

    Alert Function

    Phase-Missing/Water Insufficient/Over-Heat/Over Current



    Circulating Water Pipe

    mm

    12

    12

    12

    12

    12

    12

    Circulating Water Pipe

    inch

    (2x2) 3/8

    (4x4) 3/8

    (4x4) 3/8

    (2x2) 3/8

    (4x4) 3/8

    (4x4) 3/8

    Dimension (LxWxH)

    mm

    790*400*760

    790*400*760

    790*400*760

    790*400*760

    790*400*760

    790*400*760

    Approx.Net Weight

    KG

    76

    80

    80

    76

    83

    83



    Application of the industrial mould temperature controllers,



    The Mold Temperature Controller is suitable for Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines, the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tank ships, paper making industry, bottle blowing, and so on.

    The Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.



    Working Principle of the industrial mould temperature controllers,

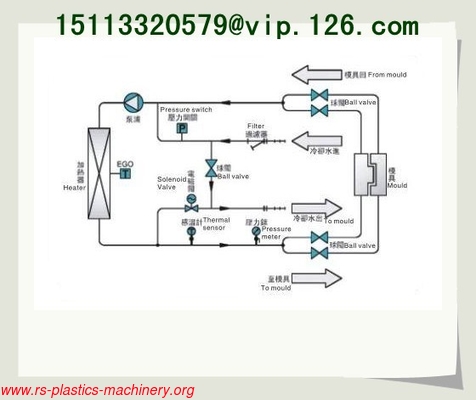

    High temperature water returns to the machine and then be pressured by pump to the heaters, After being heated, water will be forced to mould and continue the circle In the process, if the temperature is too high, the system will activate the solenoid valve to let cooling water cool down the temperature directly until the water is down to the system requirement. If the temp, keep increasing and reach to the set point of EGO, system will alarm and stop operation. The system will have low pressure alarm and stop working if cooling water pressure doesn't reach set point.

    High temperature high pressure water MTC/ High temperature water MTC Good Price







    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;





    We do OEM!



    We do B2B, B2C!







    RS Plastics Machinery Co.,LTD   (Zhongshan·China)

    Contact Person

    Mrs. Pearl Zhu

    Position

    Export Manager

    Mobile Phone

    0086-13590932590

    QQ

    263567704

    Wechat APP

    zhhy18

    Skype

    PEARL20128

    E-mail-1

    15113320579@vip.126.com

    E-mail-2

    13590932590@vip.126.com

    Website

    http://www.rs-plastics-machinery.org
