Item No.: RSPV-50U-C
CE Certificate Two Material Proportional Valves for Injection Industry
E-mail: 15113320579@vip.126.com
Home Page

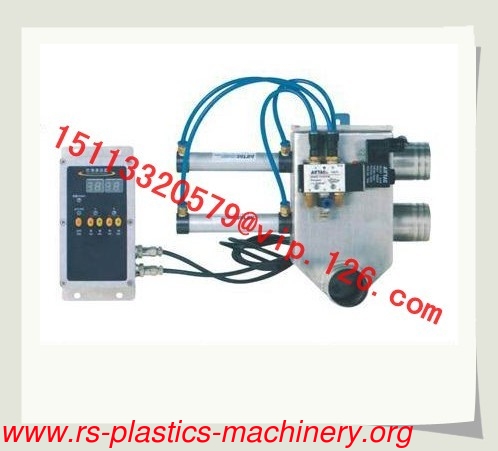

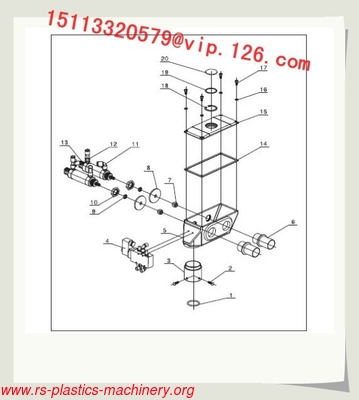

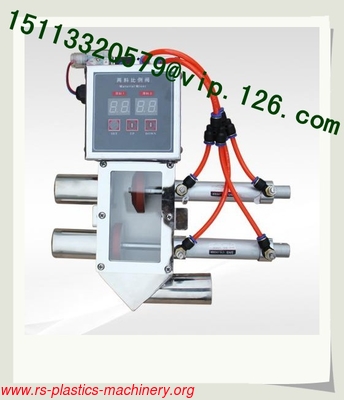

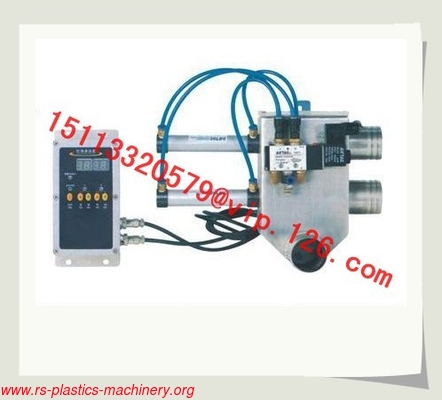

Description of the proportional valves,
Two material proportional valve: can control new and crushing the material conveying operation according to certain proportion, reach the role of proportional mixing transportation. The machine has low cost, high accuracy and convenient installation of sorrow. Can be directly installed in the material or installed in the pipeline.
The proportional valve offers simple and accurate mixing of regrinding & virgin material. Main structure is made of stainless steel, durable and excellent designed without blind angle. Microprocessor controller provides accuracy and assures smooth material convey.
Features of the two material proportional valves,
Two material proportional valve are with:
Good appearance, easy installation, simple operation;
The unique body design, make the material conveying more smooth;
Electromagnetic valve, cylinder, stable performance, ensure accurate min material proportion;
Crushing material recycling use immediately, can reduce the cost.
Microcomputer design, can accurately control the proportion of new materials and secondary materials.
Specification of the two material proportional valves,
| Model |
Conveying capacity(KG/H) |
Tube Dimensions(mm) |
Air pressure(KGF/cm) |

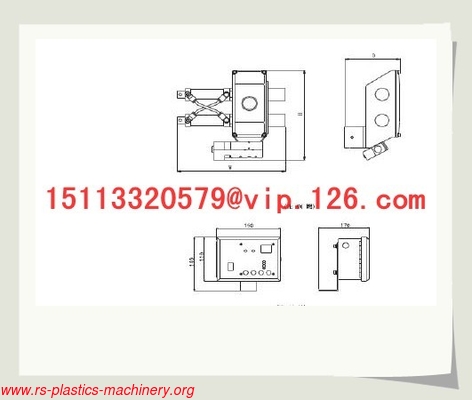

Dimensions(mm) |
| RSPV-38U-C |
500 |
⊙30 |
≥3 |
260*150*180 |
| RSPV-50U-C |
800 |
⊙50 |
≥3 |
305*170*220 |
Machine color--- blue or gray white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
