Item No.: RS-TAL-400C2
China White Color 3 phase-380V-50Hz Hopper Loader OEM Supplier
E-mail: 15113320579@vip.126.com
Home Page

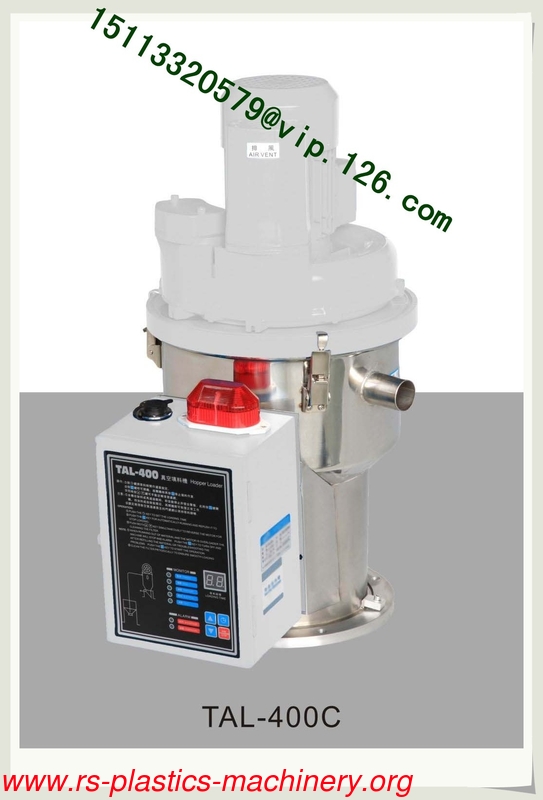

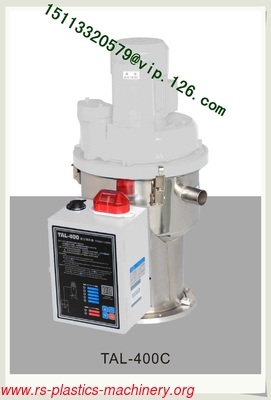

Description of the hopper loader,
The TAL-300 series use a high-speed motor in this lightweight and compact unit. With superior suction power and easy installation. It is particularly suitable for conveying new materials. The TAL-400 series use a high voltage inductive motor with low noise level and long life. It also has an automatic reversal dust cleaning device.
The automatic hopper loader has the following features,
Easy operation and maintenance;
Stainless steel hopper;
Motor protective device;
Buzzer is an option for material shortage alarm;
Auto reversal filtering device and cloth-made filter are standard accessories;
Can be equipped with photo sensor and suitable to be installed on the inlet of molding machine;
Specification of the hopper loader,
|
Model
|
TAL-400C
|
|
Motor Type
|
Inductive
|
|
Motor Power (w)
|
750
|
|
Conveying Capacity ( kg/hr)
|
250
|
|
Hopper Capacity ( L)
|
6
|
|
Conveying Pipe Dia. ( mm )
|
⊙38
|
|
Material Level Control
|
Micro-switch
|
|
Cloth Filter
|
Standard
|
|
Auto-Cleaning Function
|
Standard
|
|
Motor voltage
|
3⊙, 380v, 50Hz
|

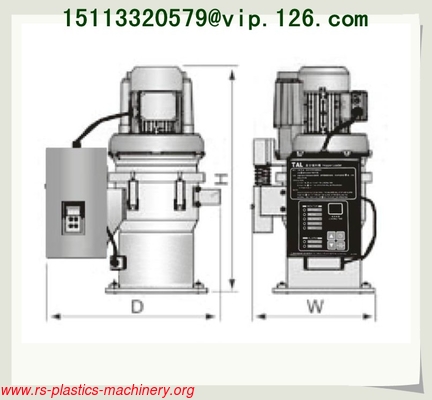

Dimensions
|
H(mm)
|
780
|
|
W(mm)
|
450
|
|
D(mm)
|
450
|
|
N.W,(Kg)
|
26
|
Machine color--- blue or white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more choice, please click the following,
Automatic hopper loader;
Euro hopper loader;
Separate vacuum hopper loader;
High power hopper loader;
Multi-hopper loader;
Venturi hopper loader;
