    Product Details:

    Place of Origin: China dual stage oil mold temperature controller
    Brand Name: RS or OEM
    Certification: CE for China double stage oil mold temperaturer controller manufacturer
    Model Number: RS-TM-OD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of dual stage Oil Mold Temperature Controller
    Price: contact us for Oil Mold Temperature Controller price
    Packaging Details: standard export packing of Oil Mold Temperature Controller
    Delivery Time: 15 days according to Oil Mold Temperature Controller production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of Oil Mold Temperature Controller according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China Dual Stage Oil Mold Temperature Controller Manufacturer, China Double Stages Oil Heaters OEM F Keyword: China Industrial Dual Stage Oil Mould Temperature Controllers Supplier;MTC;

    Item No.: RS-TM-OD

     China Dual Heating Zones Oil Mould Temperature Controller/ Water-oil MTC OEM Supplier



    E-mail: 15113320579@vip.126.com



    Home Page



    Description of the Oil Type Mold Temperature Controller,

    The TM-O series of oil heaters are used to heat up the mould and maintain this temperature, although they can be used in other similar applications. High temperature oil from the mould is returned to the cooling tank and cooled by indirect cooling. It is then pressurised by the high-pressure pump, sent to the heating tank and finally to the mould with a constant temperature and accurate PID multi-stage temperature control system.

    China Dual Heating Zones Oil Mould Temperature Controller/ Water-oil MTC OEM Supplier



    Features of the Oil Type Mold Temperature Controller,

    PID multi-stage temperature control system can maintain a mould temperature with accuary of ± 1℃

    Multiple safety devices can automatically detect abnormal performance and indicate this via visible alarm.

    Reliable mains isolator to cut power supply in case of emergency.

    High temperature heat transfer oil is stable up to 200,suitable for long and continuous operation.

    Attractive appearance,easy to access and maintain.

     China Dual Heating Zones Oil Mould Temperature Controller/ Water-oil MTC OEM Supplier



    Specification of the Dual Stage industrial oil mould temperature controllers,

    Model

    Max

    Temperature

    Pump



    Heatei

    <kW)

    Pump

    Power

    <kV/)

    Max pump

    Flow

    (L/rnin)

    MaxPump Pressure



    (bar)

    Heating

    Tank Number

    Main/sub oil tank (L)

    Cooling

    Method

    Mould

    Coupling

    (Inch)

    Demensions

    (HxWxD)

    (mm)

    N.W.

    Kg

    RS-TM-600-D

    200°C

    6x2

    0.55x2

    27x2

    3.8

    2

    6x2/3.2x2

    Direct

    3/8"(4x2)

    655x560x740

    130

    RS-TM-900-D

    9x2

    0.75x2

    42x2

    5.0

    2

    6x2/3.2x2

    3/8"(4x2)

    655x560x740

    140

    Note,

    1) “ D” stands for dual-heating zones, “ HT ” stands for high temperature;

    2)    Pump    testing standard:Power of 50Hz,purified water at 20

    3),Power      Supply:3⊙ ,380V,50Hz



    Application of the industrial oil mould temperature controllers,



    The  Mold Temperature Controller is suitable for Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines, the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tank ships, paper making industry, bottle blowing, and so on.



    The  Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.

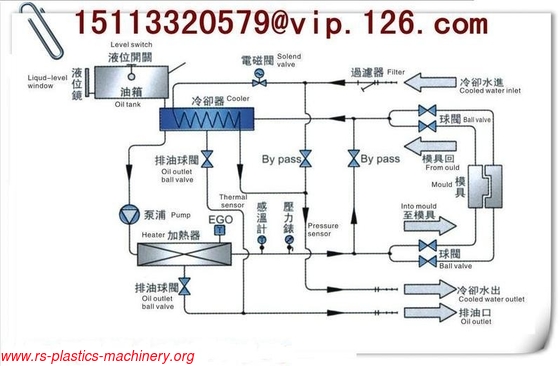

    Working Principle of the industrial oil mould temperature controllers,

    High temperature oil returns to the machine and then be pressured by pump to the heaters, After being heated, oil will be forced to mould and continue the circle. In the process, if the temperature is too high, the system will activate the solenoid valve to let return oil cool down the temp, directly till the oil temp, is down to the system requirement. If the temp, keep rising and reach to the set point of EGO, the system will alarm and stop working if cooling water pressure doesn't reach set point.

    China Dual Heating Zones Oil Mould Temperature Controller/ Water-oil MTC OEM Supplier



    Model Selection Guide for Oil Mold Temperature Controller,

    Mould Clamping Force (T)

    Moulding Capacity

    Kg/hr

    Pump Flow

    L/min



    25U  Below 25T

    3T Below 3T

    10



    25-50

    3-6

    25



    200-300

    25-40

    40

    300-650

    40-80

    60

    650 above

    80 above

    120





    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;
