Home ProductsHoneycomb Desiccant Rotor Dehumidifier & Dehumidifier Dryer-2 in 1

Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price

Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price

    • Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price
    • Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price
    • Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price
    • Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price
  • Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price

    Product Details:

    Place of Origin: China mold sweat dehumidifier
    Brand Name: RS or OEM
    Certification: CE for mold dehumidifier manufacturer
    Model Number: RS-TMD-1500H-32B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of China mold dehumidifier from Manufacturer
    Price: contact factory for mold dehumidifier price
    Packaging Details: standard supplier export packing of China mold dehumidifiers
    Delivery Time: 15 days according to mold dehumidifier manufacturer production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of mold dehumidifiers according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China Mold Dehumidifiers OEM Factory, China Mold Dehumidifying Dryer; Keyword: China Mold Sweat Dehumidifier Manufacturers

    Item No.: RS-TMD-1500H-32B

     Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price

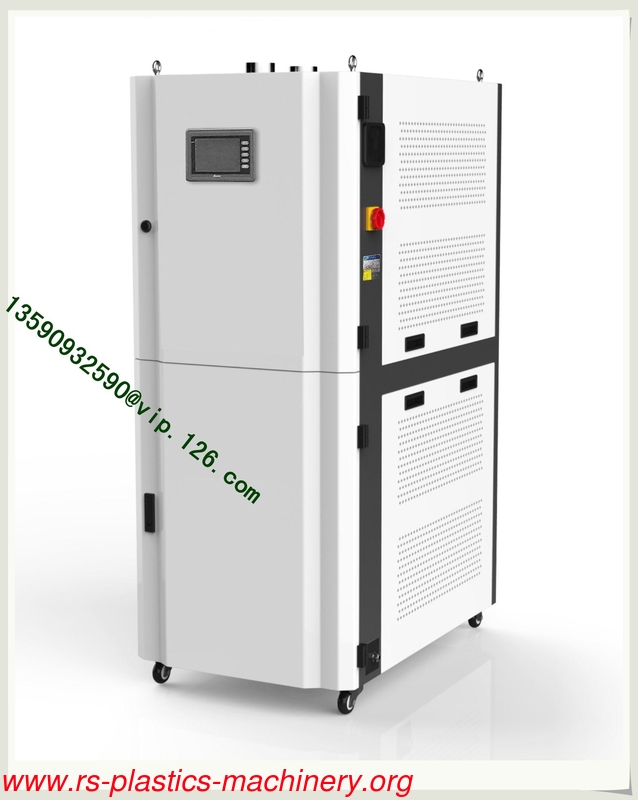

    Features of the Mold Sweat Dehumidifier



    Opts P.I.D. temperature control system; can set regenerative temp, and have display screen of actual temp. Honeycomb rotor is used to ensure steady air dehumidifying effect with main power switch, it ensures safety of operation and maintenance.

    Motor overload and phase reverse alarm functions are provided.

    Return air cooling and filtering are provided.

    Under normal atmospheric conditions, the air humidity can be controlled precisely all year round. Prolong service life of mold, reduce corrosion, and yet reduce product flaws and defective product rate.

    Air temperature generated by this series of machine is about 30°C, which ensures no moisture condensation on view window of the molding machine by making the ambient temp, not too low.

    Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price



    Optional Accessory of the Mold Sweat Dehumidifier



    Dismountable return air collector is optional. It can realize application of closed cycle and especially suitable for areas of high humidity.

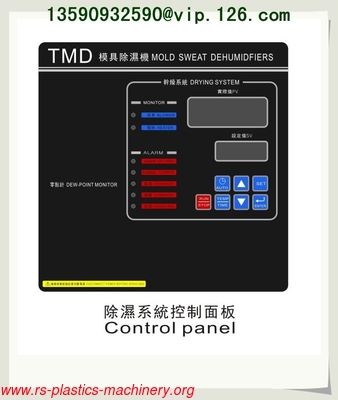

    Digital Dew-point monitor with high dew-point indicating and alarm is optional

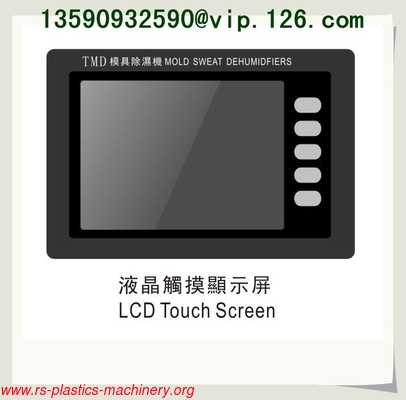

    LCD touch screen is optional.

    Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price

    Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price



    Application of the Mold Sweat Dehumidifier



    TMD series mould sweat dehumidifiers are designed to remove the moisture sweat from condensing on the mould surface. Forming of moisture sweat on the mould surface is due to the use of chilled water for reducing the molding cycle time, particularly while molding of the PET pre-forms. This series of machine uses honeycomb rotor to carry out dehumidifying function, which generates a dry airflow with dew point ranging from +5°c to -10°c, and ensures the surrounding air of mould remaining in a low dew-point temperature, It provides constant low dew-point surrounding air to the mould surface all year round without being influenced by the change of seasons.

    Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price

    Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price



    Working Principle of the Mold Sweat Dehumidifier



    The large amount of air created by centrifugal blower will directly blow to the models of I MM after being moisture absorbed by rotator honeycomb to form drying air with low dew-point. And then air discharges through air outlet of mold closing chamber and returns to mold sweat dehumidifier through return air pipe. In this way, a circle finished.

    The air around mould is very dry with dew-point less than or equal to 5°C, Environmental temperature drops fast during the mould rapid-cooling, but temp, would not fall to 5°C. Therefore, dewdrop would not come into being during mould rapid-cooling, which ensures product quality.

    Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price



    Model Selection of the Mold Sweat Dehumidifier



    Model

    TMD-500H

    TMD-1000H

    TMD-1500H

    TMD-1500H

    TMD-2000H

    TMD-2000H

    Cavity Number

    12

    16

    24

    32

    48

    56

    Cavity Array

    2x6

    2x8

    4x6

    4x8

    4x12

    4x14

    Cavity distance

                                 Standard

    Max Shot Weight (kg/hr)

    200

    270

    400

    420

    560

    560

    Auxiliary Equipment Model

    Dryer Model

    THD-1500U

    THD-2000U

    THD-3000U

    THD-3000U

    THD-4000U

    THD-4000U

    Dehumidifier

    Model

    TD-700H

    TD-1000H

    TD-1500H

    TD-1500H

    TD-2000H

    TD-2000H

    Hopper Loader

    Model

    TAL-2HP-UG

    TAL-2HP-UG

    TAL-3.5HP-UG

    TAL-3.5HP-UG

    TAL-5HP-UG

    TAL-5HP-UG



    Specification of the Mold Sweat Dehumidifier



    Model

    Regenerating heater KW

    Regenerating blower KW

    Process blower KW

    Process Air Flow CBM/H

    Process Pipe Diameter (inch)

    Regenerating Pipe Diameter (inch)

    Water Connection

    TMD-500H

    4

    0.4

    0.75

    500

    4

    2

    3/4″PT

    TMD-1000H

    7

    0.85

    1.5

    1000

    5

    2

    3/4″PT

    TMD-1500H

    12

    1.6

    2.2

    1500

    8

    2.5

    1″PT

    TMD-2000H

    7x2

    0.85x2

    3.7

    2000

    8

    4

    1.5″PT



    Model

    Dry Air Temperature ℃

    Dew Point

    Temperature ℃

    Process Air Pressure Pa

    Cooling Water Flow L/M

    Cooling Water

    Pressure

    Kgf/c㎡

    Dimensions

    Mm

    HxWxD

    Net Weight

    Kg

    TMD-500H

    30

    -10 - +5

    1000

    45

    3-5

    1745x700x1255

    260

    TMD-1000H

    30

    -10 - +5

    1500

    90

    3-5

    1935x900x1380

    335

    TMD-1500H

    30

    -10 - +5

    1500

    135

    3-5

    2060x1410x2150

    350

    TMD-2000H

    30

    -10 - +5

    2400

    180

    3-5

    2060x1410x2150

    450

    Mould Sweat Dehumidifiers Wholesaler Wanted/ Molding dehumidifiers Best Price

    Note,

    1) Noise level <85 DB (A)

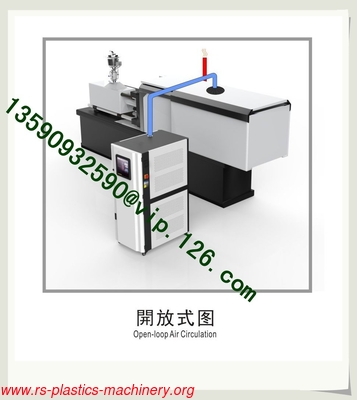

    2)                   Condition for Open-loop application: Ambient dry bulb temp<30C,Relative Moisture<70%

    3)                   Cooling water required temp : 7-10℃

    4)                   Power Supply: 3⊙,380V AC,50Hz;






    Machine color--- blue or white, or others;



    Machine brand--- factory brand, OEM brand or no brand;



    We do OEM!



    We do B2B, B2C!
