Home ProductsHoneycomb Desiccant Rotor dehumidifier dryer 3 in 1

IMC Auxiliary machine- 3 in 1 honeycomb Dehumidifier Dryer good price for plastic material Drying to Germany

IMC Auxiliary machine- 3 in 1 honeycomb Dehumidifier Dryer good price for plastic material Drying to Germany

    • IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany
    • IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany
    • IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany
    • IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany
  • IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany

    Product Details:

    Place of Origin: China
    Brand Name: RS
    Certification: CCC, CE for dehumidifier dryer machine
    Model Number: 230U/150H honeycomb dehumidifier dryer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit for dehumidifier dryer machine
    Packaging Details: wooden case for dehumidifier dryer machine
    Delivery Time: 3-10 days for dehumidifier dryer machine
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100 units/day for honeycomb dehumidifier dryer machine
    Contact Now
    Detailed Product Description
    Dessciant Rotor Material: Silica Gel Or Molecular Sieve Dehumidifier Dryer Keyword: Honeycomb Dessciant Rotor Dehumidifier Dryer
    Dry Capacity: 300 Liter Air Flow: 200 M3/hr Dehumidifier Dryer Machine
    Dew Point: -43 ℃ Dehumidifier Dryer Function: Dehumidififying, Drying , Feeding

    IMC Auxiliary machine- 3 in 1 honeycomb Dehumidifier Dryer good price for plastic material Drying to Germany





    Description of the China honeycomb dehumidifier dryer,

    The honeycomb dehumidifier dryer are mainly used to dry hygroscopic engineering plastics. A honeycomb-rotor is used in this series to offer effective drying. We offer two types of honeycomb rotors:H4 and H5 models that, under ideal conditions, can supply dehumidified dry air with a dew-point down to -40?and -50?respectively.The TD-H series offers accurate P.I.D temperature control as optional features. This series comprises 14 models of honeycomb dehumidifiers, the largest of which can provide dry air up to a volume of 4000m3/hr.

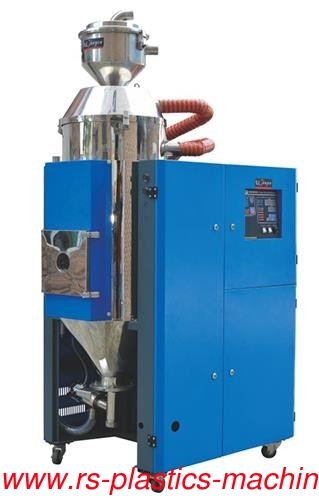

    model bigger than 230u/120H , separated type  apperance .

    IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany

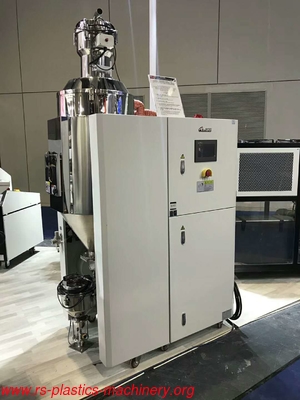

     model Smaller than 160L/120H, Unibody constuction apperance.

    IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany

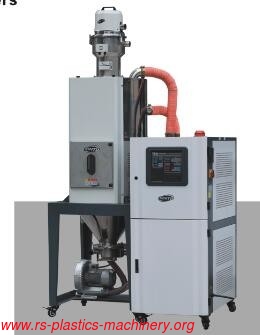

    honeycomb dehumidifier  inside  show;

    IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany

    Features of the China honeycomb dehumidifier,

    The honeycomb dehumidifiers use P.I.D temperature control system, has regenerating temperature settings and real temperature display function.
    Equips with dehumidifying heater and temperature control gauge as options to dry and dehumidify the raw material.
    The dehumidifying system features two condensers to ensure a low return air temperature and low dew-point,
    Main power switch with mechanical chain lock function.



    IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany

    Ecotech   molecular sieve dessciant Rotor

    IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany

    Model 40L/30H 80L/50H 120L/80H 160L/120H 230L/150H
    Drying system
    process heater power(KW) 3 3.9 6 6 7.2
    process Blower power(KW) 0.25 0.4 0.75 0.75 1.5
    Drying hopper capacity(L) 40 80 120 120 230
    Dehumidifying system
    Regen heater power(KW) 3 3 3.5 3.5 4
    Regen Blower power(KW) 0.25 0.25 0.25 0.25 0.4
    Dry Air capacity (M3/hr) 30 50 80 120 150
    conveying system
    conveying Blower power(KW) 0.75 0.75 0.75 0.75 1.5
    Dia.of conveying hose (inch) 1.5 1.5 1.5 1.5 1.5
    Vacuum/sensor hopper receiver(L) 3 6 6 6 12
    Dimension
    H (mm) 1670 1670 1670 1860 1860
    W (mm) 1040 1040 1040 1190 1190
    D (mm) 875 875 875 1000 1000
    weight(kg) 200 300 320 505 540
    Model 40L/30H 80L/50H 120L/80H 160L/120H 230L/150H
    Drying system
    process heater power(KW) 3 3.9 6 6 7.2
    process Blower power(KW) 0.25 0.4 0.75 0.75 1.5
    Drying hopper capacity(L) 40 80 120 120 230
    Dehumidifying system
    Regen heater power(KW) 3 3 3.5 3.5 4
    Regen Blower power(KW) 0.25 0.25 0.25 0.25 0.4
    Dry Air capacity (M3/hr) 30 50 80 120 150
    conveying system
    conveying Blower power(KW) 0.75 0.75 0.75 0.75 1.5
    Dia.of conveying hose (inch) 1.5 1.5 1.5 1.5 1.5
    Vacuum/sensor hopper receiver(L) 3 6 6 6 12
    Dimension
    H (mm) 1670 1670 1670 1860 1860
    W (mm) 1040 1040 1040 1190 1190
    D (mm) 875 875 875 1000 1000
    weight(kg) 200 300 320 505 540

    Dehumidifier dryer working principle ;

    IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany

    IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany

    IMC Auxiliary machine-  3  in 1 honeycomb Dehumidifier Dryer good  price  for  plastic material  Drying to Germany
