Item No.: RS-TD honeycomb dehumidifier
Honeycomb Dehumidifying Dryer/ Industrial Honeycomb Dehumidifying Equipment For Plastic Material
If you need the price of the Honeycomb Dehumidifier, please do send an E-mail to:
13590932590@vip.126.com
Home Page

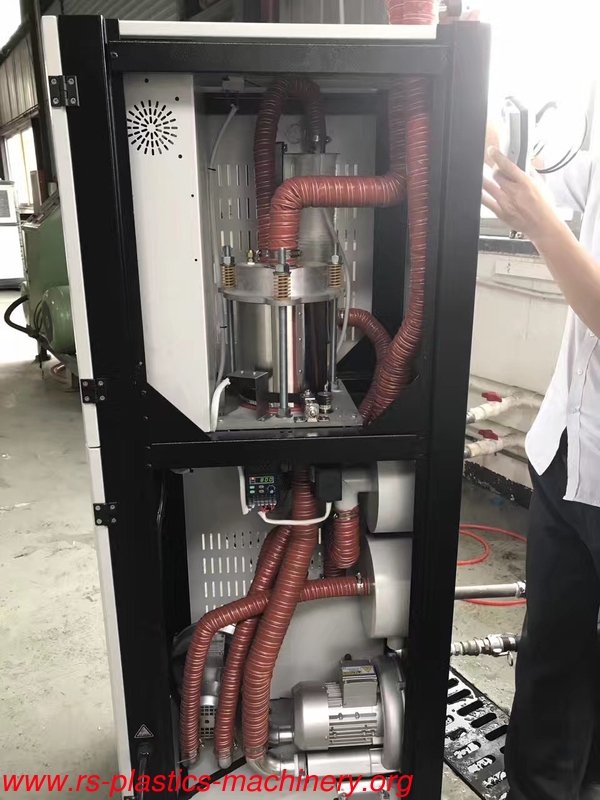

Description of the China honeycomb dehumidifier,
The honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics. A honeycomb-rotor is used in this series to offer effective drying. We offer two types of honeycomb rotors:H4 and H5 models that, under ideal conditions, can supply dehumidified dry air with a dew-point down to -40 and -50 centi-degree respectively.The TD-H series offers accurate P.I.D temperature control as optional features. This series comprises 14 models of honeycomb dehumidifiers, the largest of which can provide dry air up to a volume of 4000m3/hr.
Features of the China honeycomb dehumidifier,

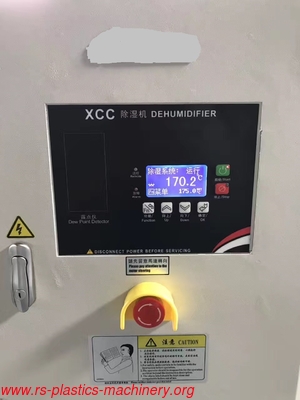

The honeycomb dehumidifiers use P.I.D temperature control system, has regenerating temperature settings and real temperature display function.
Equips with dehumidifying heater and temperature control gauge as options to dry and dehumidify the raw material.
The dehumidifying system features two condensers to ensure a low return air temperature and low dew-point,
Main power switch with mechanical chain lock function.
Dessciant Honeycomb dehumidifier specification ;
Specification of the honeycomb dehumidifier,
|
Model
|
30H |
50H |
80H |
120H |
150H |
200H |
300H |
400H |
500H |
700H |
1000H |
1500H |
2000H |
3000H |
| Process Air Flow ( rrf/hr) |
30 |
50 |
80 |
120 |
150 |
200 |
300 |
400 |
500 |
700 |
1000 |
1500 |
2000 |
3000 |
|
Process Heater (kw)
|
3 |
3.9 |
6 |
6 |
7.2 |
12 |
15 |
18 |
21 |
24 |
32 |
58 |
80 |
96 |
|
Process Blower ( kw)
|
0.2 |
0.4 |
0.75 |
0.75 |
1.5 |
1.5 |
3 |
3.4 |
5.5 |
5.5 |
9 |
9x2 |
13x2 |
13x3 |
|
(
Regen .heater kw)
|
0.2 |
0.2 |
0.2 |
0.2 |
0.4 |
0.4 |
0.75 |
0.75 |
1.5 |
1.5 |
2.4 |
3.4 |
5.5 |
7.5 |
|
Regen. Blower (kw)
|
3 |
3 |
3.5 |
3.5 |
4 |
5.4 |
7.2 |
7.2 |
10 |
10 |
15 |
20 |
20 |
30 |
| Pipe Dia. t ( inch ) |
2" |
2" |
2" |
2" |
2.5" |
2.5" |
3" |
3" |
4" |
4" |
5" |
6" |
8" |
8" |
|
Voltage
|
3⊙,380V,50Hz |
|
Dimensions
|
| H(mm) |
1260 |
1260 |
1360 |
1360 |
1560 |
1560 |
1745 |
1745 |
1935 |
1935 |
2145 |
2145 |
2060 |
2500 |
| W(mm) |
480 |
480 |
530 |
530 |
660 |
660 |
700 |
700 |
900 |
900 |
1300 |
1300 |
1410 |
1600 |
| D(mm) |
755 |
755 |
820 |
820 |
1050 |
1050 |
1255 |
1255 |
1380 |
1380 |
1550 |
1910 |
2150 |
2160 |
| Weight( kg ) |
80 |
80 |
120 |
140 |
215 |
225 |
240 |
280 |
290 |
300 |
400 |
510 |
630 |
760 |
Note:*Process heater is optional to be used with a drying hopper.
Note: we reserve the right to change specification without prior notice.
Honeycomb dessciant wheel rotor material with two kinds: molecular sieve and silica gel which made in sweden. The honeycomb dehumidifier dew point usually reach -40 degree centagrade .
Honeycomb dehumidifier moisture content PPM diagram ;
Machine color--- blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
