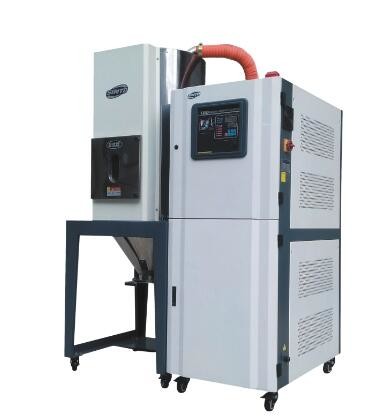

3p 460V 2 in 1 honeycomb Dehumidifier Dryer good price for plastic material Drying of IMC to United states

3p 460V 2 in 1 honeycomb Dehumidifier Dryer good price for plastic material Drying of IMC to United states

    • 3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states
    • 3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states
    • 3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states
    • 3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states
  • 3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states

    Product Details:

    Place of Origin: China
    Brand Name: RS
    Certification: CCC, CE
    Model Number: 230U/120H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: wooden case
    Delivery Time: 3-10 days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100 units/day
    Contact Now
    Detailed Product Description
    Dessciant Rotor Material: Silica Gel Or Molecular Sieve Keyword: Honeycomb Dessciant Rotor Dryer
    Dry Capacity: 230 Liter Air Flow: 120 M3/hr
    Dew Point: -43 ℃ Function: Dehumidififying, Drying ,



    3p 460V 2 in 1 honeycomb Dehumidifier Dryer good price for plastic material Drying of IMC to United states



    Description of the China honeycomb dehumidif

    ier dryer,

    The honeycomb dehumidifier dryer are mainly used to dry hygroscopic engineering plastics. A honeycomb-rotor is used in this series to offer effective drying. We offer two types of honeycomb rotors:H4 and H5 models that, under ideal conditions, can supply dehumidified dry air with a dew-point down to -40?and -50?respectively.The TD-H series offers accurate P.I.D temperature control as optional features. This series comprises 14 models of honeycomb dehumidifiers, the largest of which can provide dry air up to a volume of 4000m3/hr.

    model bigger than 230u/120H , separated type  apperance .

    3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states

     model Smaller than 160L/120H, Unibody constuction apperance.

    3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states

    honeycomb dehumidifier  inside  show;

    3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states

    Features of the China honeycomb dehumidifier,

    The honeycomb dehumidifiers use P.I.D temperature control system, has regenerating temperature settings and real temperature display function.
    Equips with dehumidifying heater and temperature control gauge as options to dry and dehumidify the raw material.
    The dehumidifying system features two condensers to ensure a low return air temperature and low dew-point,
    Main power switch with mechanical chain lock function.



    3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states

    Ecotech   molecular sieve dessciant Rotor

    3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states

    Model 40L/30H 80L/50H 120L/80H 160L/120H 230L/150H
    Drying system
    process heater power(KW) 3 3.9 6 6 7.2
    process Blower power(KW) 0.25 0.4 0.75 0.75 1.5
    Drying hopper capacity(L) 40 80 120 120 230
    Dehumidifying system
    Regen heater power(KW) 3 3 3.5 3.5 4
    Regen Blower power(KW) 0.25 0.25 0.25 0.25 0.4
    Dry Air capacity (M3/hr) 30 50 80 120 150
    conveying system
    conveying Blower power(KW) 0.75 0.75 0.75 0.75 1.5
    Dia.of conveying hose (inch) 1.5 1.5 1.5 1.5 1.5
    Vacuum/sensor hopper receiver(L) 3 6 6 6 12
    Dimension
    H (mm) 1670 1670 1670 1860 1860
    W (mm) 1040 1040 1040 1190 1190
    D (mm) 875 875 875 1000 1000
    weight(kg) 200 300 320 505 540
    Model 40L/30H 80L/50H 120L/80H 160L/120H 230L/150H
    Drying system
    process heater power(KW) 3 3.9 6 6 7.2
    process Blower power(KW) 0.25 0.4 0.75 0.75 1.5
    Drying hopper capacity(L) 40 80 120 120 230
    Dehumidifying system
    Regen heater power(KW) 3 3 3.5 3.5 4
    Regen Blower power(KW) 0.25 0.25 0.25 0.25 0.4
    Dry Air capacity (M3/hr) 30 50 80 120 150
    conveying system
    conveying Blower power(KW) 0.75 0.75 0.75 0.75 1.5
    Dia.of conveying hose (inch) 1.5 1.5 1.5 1.5 1.5
    Vacuum/sensor hopper receiver(L) 3 6 6 6 12
    Dimension
    H (mm) 1670 1670 1670 1860 1860
    W (mm) 1040 1040 1040 1190 1190
    D (mm) 875 875 875 1000 1000
    weight(kg) 200 300 320 505 540

    Dehumidifier dryer working principle ;

    3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states

    3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states

    3p 460V  2 in 1 honeycomb Dehumidifier Dryer  good  price  for  plastic material  Drying of IMC to United states
