    Product Details:

    Place of Origin: China water mold temperature controller
    Brand Name: RS or OEM
    Certification: CE for China water mold temperaturer controller manufacturer
    Model Number: RS-TM-900W4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of Water Mold Temperature Controller
    Price: contact us for Water Mold Temperature Controller price
    Packaging Details: standard export packing of Water Mold Temperature Controller
    Delivery Time: 15 days according to Water Mold Temperature Controller production
    Payment Terms: T/T, West Union,MoneyGram,L/C etc
    Supply Ability: 500 sets of Water Mold Temperature Controller according to China Manufacturer ability
    Contact Now
    Detailed Product Description
    Keywords: China Standard Water Mold Temperature Controller Manufacturer, China Water Heaters OEM Factory, Keyword: China Industrial Mold Temperature Controllers Supplier,MTC;
    Max Temperture: 0-320 Degree C Heater Power: 6-48KW

    Item No.: RS-TM-900W4

     Oil Circulation Heater Temperature Controller Oil temeprture controller for injections manufacturer good price agent need

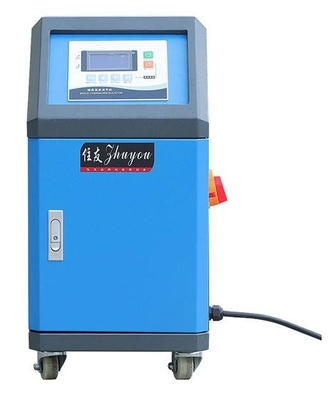

    Description of the Oil Type Mold Temperature Controller,

    The TM-O series of Oil heaters mold temperture controller are used to heat up the mould and maintain this temperature. Besides, they can also be used in other similar applications. High temperature water from the mould is cooled by direct cooling and then sent to the pipe heaters via high-pressure pump for heating to a constant temperature. With our optimized design, water can reach a maximum of 120.equipped and the accurate PID multi-stage temperature control system can maintain an accuracy of ±1°C.

     Oil Circulation Heater Temperature Controller Oil temeprture controller for injections manufacturer good price agent nee



    Features of the Water Type Mold Temperature Controller,

    PID multi-stage temperature control system can maintain a mould temperature with accuracy ± 1°C.

    Multiple safety devices can automatically detect abnormal performance and indicate this via visible alarm.

    Accurate temperature control achieved by direct cooling and quick heat transfer by automatic water supply facility.

    Inner parts made from stainless steel to ensure corrosion-free operation.

    Attractive appearance, easy to access and maintain.



    Specification of the industrial mould temperature controllers,



    Model



    Max.

    Temperature

    |

    Heater

    kW

    Pump (KW)

     Max Pump Flow



    (L/min)

    Max pump pressure



    (bar)



    Healing cham­ber number

    Healing chamber numbed

    (L)

    Cooling

    Method

    Mould Coupling

    ( inch)

    Dimensiors

     (HxWxD)

    N.W.

    (Kg)

    RS-TM-600W



    6

    0.5

    27

    3.8

    1

    3.0

















    Direct

    3/8" (2x2)

    635x280x740

    60

    RS-TM-600W-D



    6x2

    0.5x2

    27x2

    3.8

    2

    3.0x2

    3/8" (4x2)

    655x510x740

    100

    RS-TM-900W



    9

    0.75

    42

    5.0

    1

    3.0

    3/8" (2x2)

    655x280x740

    72

    RS-TM-900W-D

    120℃

    9x2

    0.75x2

    42x2

    5.0

    2

    3.0x2

    3/8" (4x2)

    655x510x740

    105

    RS-TM-1200W



    12

    1.5

    74

    6.2

    2

    6.0

    3/8" (4x2)

    695x340x815

    120

    RS-TM-2400W



    24

    2.8

    130

    8.0

    2

    7.4

    1" (1 x2)

    870x360x930

    140

    RS-TM-3600W



    36

    4.0

    200

    8.0

    4

    17.4

    980x415x930

    165

    Note,

    1), In order to maintain stable temperature of heat transfer media, cooling water

    pressure should be no less than 2kg/cm3,but also no more than 5kg/cm3.

    2)           Automatic drain facility can be added for all models as optional feature. (Model denotes “ R ”)

    3)           “ D ” stands for double stage.

    4)           Pump    testing standard: Power of 50Hz,purified water at 20



    Application of the industrial mould temperature controllers,



    The Mold Temperature Controller is suitable for Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines, the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tank ships, paper making industry, bottle blowing, and so on.

    The Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.

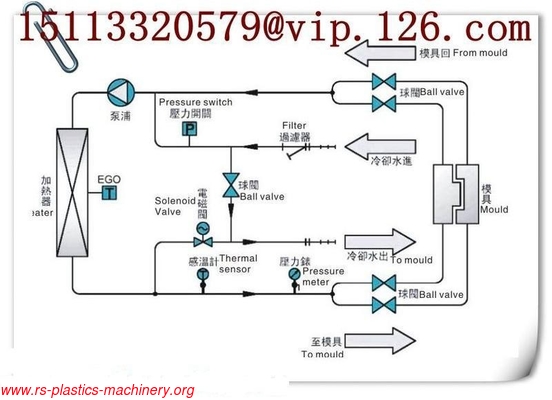

    Working Principle of the industrial mould temperature controllers,



    High temperature water returns to the machine and then be pressured by pump to the heaters, After being heated, water will be forced to mould and continue the circle In the process, if the temperature is too high, the system will activate the solenoid valve to let cooling water cool down the temperature directly until the water is down to the system requirement. If the temp, keep increasing and reach to the set point of EGO, system will alarm and stop operation. The system will have low pressure alarm and stop working if cooling water pressure doesn't reach set point.

    Oil Circulation Heater Temperature Controller Oil temeprture controller for injections manufacturer good price agent nee





    Model Selection Guide for TM-W series of Water Mould Temperature Controllers,



    Mold Camping Force

    (T)

    Molding Capacity

    Kg/hr

    Pump Flow

    L/min



    Less than 25

     less than 3

                  10



    25-50

    3-6

                 25/27



                 25/27

                 25/27





    50-100

    6-12



    100-200

    12-25



    200-300

    25-40

    40/38

    300-650

    40-80

    60/58

    More than 650

    80

    120/100
